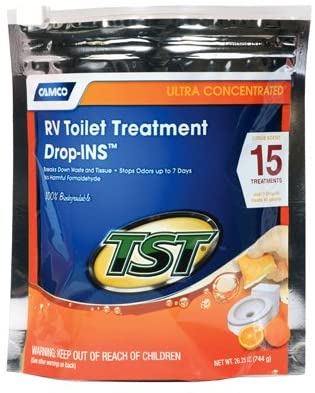

Camco 41189 TST Orange RV Toilet Treatment Drop-Ins - 15 Count Bag
REG. $20.95
Sale! - $17.99
You Save $2.96 (14.1%)
Free Shipping
Camco 40252 TST Grey Water Odor Control - 32 Oz Bottle
REG. $19.95
Sale! - $18.99
You Save $0.96 (4.8%)
Free Shipping
Camco 40246 RV Marine TST Drain Valve Lube - 16 Oz Bottle
REG. $18.95
Sale! - $17.99
You Save $0.96 (5.1%)
Free Shipping
REG. $24.95
Sale! - $22.99
You Save $1.96 (7.9%)
Free Shipping
Thetford 03300 Aqua Soft 2 Ply Toilet Tissue - 4 Roll Pack
REG. $17.99
Sale! - $15.99
You Save $2.00 (11.1%)
Free Shipping
Camco 40274 RV And Marine Toilet Tissue 2-Ply 4-Rolls
REG. $17.95
Sale! - $16.99
You Save $0.96 (5.3%)
Free Shipping
Organic Power Products 22002 Pure Power 32 Oz Concentrated Holding Tank Waste Digester And Odor Elim
REG. $23.95
Sale! - $21.99
You Save $1.96 (8.2%)
Free Shipping
Organic Power Products 22003 Pure Power One Half Gallon Concentrated Holding Tank Waste Digester And
REG. $31.95
Sale! - $28.99
You Save $2.96 (9.3%)
Free Shipping
Organic Power Products 22017 Pure Power Pack of 6 - 4 Oz Bottles Of Concentrated Holding Tank Waste
REG. $25.95
Sale! - $23.99
You Save $1.96 (7.6%)
Free Shipping

Toilets and Accessories

Hanna Trailer Supply offers a wide variety of quality toilets and accessories, including replacement toilet parts to fit your needs. From toilets that are available in permanent and portable models, to toilet paper, holding tank treatment chemicals, and toilet repair parts, Hanna RV has the toilet parts and accessories to make your vacation comfortable and stress-free.

Hanna RV is your source for all online RV toilets and replacement toilet parts sales from toilets, toilet repair parts, and chemicals and toilet paper.

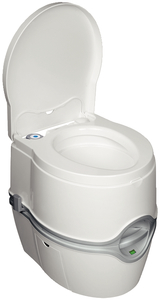

Featured Product: Thetford Porta Potti 550E Curve

Get prepared for your camping trip with Hanna Trailer Supply’s best-selling portable toilet – the Thetford Porta Potti 550E Curve.  The Curve makes an excellent toilet for not only RVs and camping, but also for boats, home, hunting, fishing, emergencies, trucks, vans, cabins, bedside care, and toddler training. This toilet is ideal for when those unexpected power and water outages occur.  Forget about any potential messes, as this toilet is sanitary, odorless, leak-proof, durable, easy to use and clean.

The Curve has a battery powered flush that runs on only 6-AA batteries. It averages 56 flushes due its large 4 gallon fresh water and 5.5 gallon waste water capacity tanks, which feature built-in tank level indicators for your convenience.  The Curve features a comfortable seat height, hidden controls, and an integrated toilet paper holder, which makes this portable toilet a favorite in the industry! The Curve includes a 1-year manufacturer’s warranty for added peace of mind on this exceptional toilet. Happy camping!
Click Here To View The Thetford Porta Potti 550E Curve Portable Toilet - Great For RVing, Boating, Camping, Fishing, Hunting, Trucking, Vans, Potty Training, Emergencies, and More!

Hanna Trailer Supply is a proud Thetford Certified Gold Key Dealer!

Hanna Trailer Supply - Certified Gold Key Dealer - Servicing And Selling Thetford Toilets, Toilet Repair Parts, Toilet Chemicals, and RV and Marine Sanitation



Toilets:

Hanna Trailer Supply offers a variety of different permanent and portable toilets, both RV and marine with different heights, foot and hand flushes, colors, capacities, and styling, including some with hand sprayers, to suit your preferences and needs.  You can count on Hanna RV to bring you best brands available; Thetford, Dometic SeaLand, and Camco.

The permanent RV toilets we offer are the most attractive and complete lineup in the industry, that will provide you with years of reliable use. We carry a variety of permanent RV toilets that feature low and high profiles to fit your specific space requirements. Many of our toilets have a choice of a foot or hand flush to suit your personal preferences, and ones that offer an electric push-button flush for ease of use. Whether you’re seeking a permanent RV toilet that’s lightweight, has a home-like styling, is affordable, or a higher-end luxurious toilet, Hanna Trailer Supply offers a large variety of permanent toilets to ensure you find what you need. The marine permanent toilets we offer are water-tested, compact in design, and are specifically made for boaters everywhere. We are happy to offer cassette toilets combine the built-in comfort of permanent RV toilets with the convenience of having its own waste-holding tanks that portable toilets have, in that the waste tanks are actually removable. Hanna RV offers portable toilets, including the best-selling Thetford Porta Potti 550E Curve, for a variety of applications and specific needs.  Whether you are in need of an extra portable RV toilet for your next vacation, or a marine toilet that is specifically made to withstand extra motion on a windy day out on the lake, we bring you the best portable toilets to use anywhere at any time!  Our marine portable toilets offer hold down brackets to secure the toilet down in place when the boat is underway.

Replacing Your RV's Toilet? Click Here To View The Thetford Permanent Toilet Selection Chart!

Click Here To Learn About Thetford Porta Potti Portable Toilets

Shop For RV, Marine, Camper, Trailer, Motorhome, Fifth Wheel, And Camping Toilets, Including Portable Toilets and Permanent Foot Flush, Hand Flush, High Profile, Low Profile, Cassette, And Toilets With Hand Sprayers At Hanna RV!

Toilet Repair Parts And Accessories:

Hanna Trailer Supply carries a variety of toilet repair parts and accessories for both permanent and portable RV and marine toilets.  From add-on accessory parts such as toilet risers that give your toilet extra height for comfort, and water-saving hand sprayers that attaches to your RV toilet’s water line, to replacement parts including water control valves, seat and cover assemblies, closet flanges, floor flanges, blade seals, mechanism repair packages, and bellows, we’ve got you covered!  We also offer this toilet conversion kit, so you can easily switch between brands of permanent toilets. Hanna RV is your one-stop shop for all of your marine, portable, and RV toilet parts and accessories needs!

Thetford RV Toilet Parts:

Shop For RV And Marine Toilet Repair Parts, Replacement Parts, And Accessories For Permanent And Portable Toilets, Including Valve Seal Repair Kits, Bellows, Ball Valves, Blade Seals, Toilet Risers, Vacuum Breakers, Hand Sprayer, Flush Ball And Shaft Kits, Check Valves, And Toilet Conversion Kits At Hanna RV!



Chemicals and Toilet Paper:


Hanna RV offers a large selection of toilet chemicals and toilet paper to use with your RV, boat, and portable toilets.  It is important to use our toilet paper and chemicals that are specifically formulated for RV/marine holding tanks, recirculating, and portable toilets, to ensure that your vacation does not have any unpleasant surprises.  Using RV/marine specific toilet chemicals allows for proper breakdown of waste and toilet paper in your RV/marine holding tank. From enzyme and formaldehyde-free holding tank treatments, to holding tank level gauge cleaner, holding tank deodorizer, tissue digester, drain valve and holding tank system lubricant, and toilet seal lubricant and conditioner, Hanna Trailer Supply provides you with the most trusted brands in the industry for your toilet needs including Thetford, Dometic SeaLand, Valterra, Walex, Organic Power Products, Camco, and more!  We offer value packs of 1 and 2-ply toilet paper, which dissolve in your holding tank, greatly reducing the chance of any clogs. Try our new Thetford Aqua Foam Foaming RV Toilet Cleaner, which penetrates and removes grime in seconds without scrubbing and comes in convenient premeasured packs!

Click Here To Learn More About Thetford Holding Tank Deodorants

Click Here To Learn More About Other Thetford Holding Tank Products

 Shop For RV, Marine, And Portable Toilet Chemicals, Toilet Paper, Tissue Digester, Holding Tank Deodorant, Waste Digester, Drain Valve Lubricant, Toilet Seal Lubricant And Conditioner, Level Gauge Cleaner, Grey and Black Holding Tank Additives, And More At Hanna Trailer Supply!











Permanent Toilet Selection Chart:

Replace With/Current Toilet Aqua Magic V

Aqua Magic Bravura

Aqua Magic Residence
Aqua Magic Style II
Aqua Magic Style Plus
Aria Classic Aria Deluxe II
Thetford Aqua Magic V Hand or Pedal Flush Thetford Aqua Magic Bravura Pedal Flush Thetford Aqua Magic Residence Pedal Flush Thetford Aqua Magic Style II Pedal Flush Thetford Aqua Magic Style Plus Pedal Flush Thetford Aria Classic Pedal Flush Thetford Aria Deluxe II Pushbutton Electric Flush
Hand or Pedal Flush Pedal Flush Pedal Flush Pedal Flush Pedal Flush Pedal Flush Push Button Electric Flush
Thetford Aqua Magic III, Aqua Magic IV, Aqua Magic Starlite/Galaxy, Aqua Magic Aurora Aqua Magic III Direct Replacement
Recommended Upgrade Recommended Upgrade Recommended Upgrade Recommended Upgrade Special Upgrade Special Upgrade

Aqua Magic IV

Direct Replacement Recommended Upgrade Recommended Upgrade Recommended Upgrade Recommended Upgrade Special Upgrade Special Upgrade
Aqua Magic Starlite/Galaxy Available Direct Replacement Recommended Upgrade Recommended Upgrade Recommended Upgrade Special Upgrade Special Upgrade
Aqua Magic Aurora Available Available Direct Replacement Direct Replacement Direct Replacement Recommended Upgrade Special Upgrade

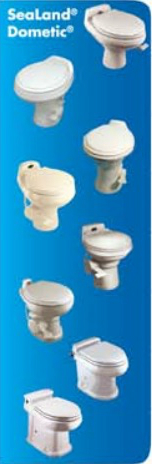

SeaLand Dometic 500 Series, 300 Series, 310 Series, 2000 Series, 900 Series, Traveler Lite, Concerto, Magnum Opus
500 Series Direct Replacement Direct Replacement Direct Replacement Direct Replacement Direct Replacement Recommended Upgrade Special Upgrade
300 Series Available Direct Replacement Direct Replacement Direct Replacement Direct Replacement Recommended Upgrade Special Upgrade
310 Series Available Direct Replacement Direct Replacement Direct Replacement Direct Replacement Recommended Upgrade Special Upgrade
2000 Series Available Direct Replacement Direct Replacement Direct Replacement Recommended Upgrade Recommended Upgrade Special Upgrade
900 Series Special Upgrade Direct Replacement Direct Replacement Direct Replacement Recommended Upgrade Recommended Upgrade Special Upgrade
Traveler Lite Special Upgrade Direct Replacement Direct Replacement Direct Replacement Recommended Upgrade Recommended Upgrade Special Upgrade
Concerto Not Recommended Not Recommended Available Available Available Direct Replacement Recommended Upgrade
Magnum Opus Not Recommended Not Recommended Available Available Available Direct Replacement Direct Replacement
Other RV Toilets - Perma-Flush, Valterra La Toilette Perma-Flush Direct Replacement Recommended Upgrade Recommended Upgrade Recommended Upgrade Recommended Upgrade Special Upgrade Special Upgrade
Valterra La Toilette Direct Replacement Recommended Upgrade Recommended Upgrade Recommended Upgrade Recommended Upgrade Special Upgrade Special Upgrade
Thetford Key For RV Toilet Replacements





Thetford RV Toilet Replacement/Repair Parts Breakdown Diagram By Each Toilet Model:

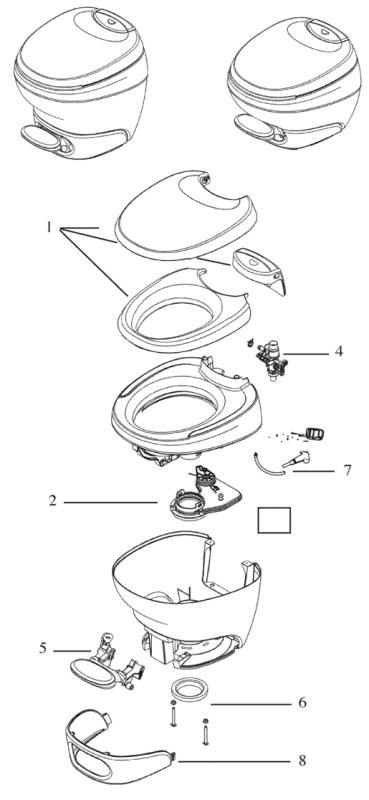

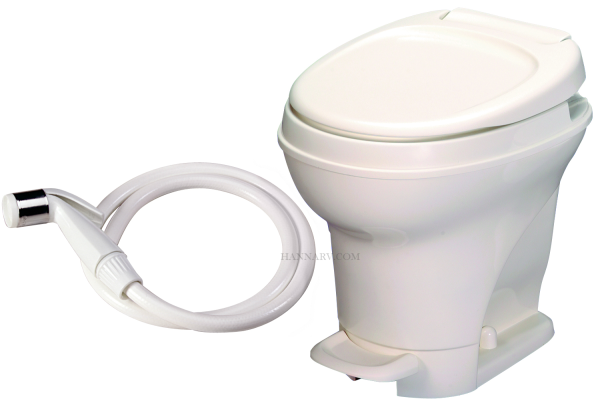

Aqua Magic V Toilet Parts - Foot Flush:
Thetford Aqua Magic V Permanent RV Toilet Low And High Profile Foot Flush Parts Diagram
 Parts List:
Key Number: Part Number:
Part Description:
1 31703
Seat and Cover Assembly - White
  31704 Seat and Cover Assembly - Parchment
2 31705 Water Module Assembly
3 31738 Flush Tube and Nozzle Assembly
4 36528
Water Module Link
5 31709 Pedal - White
  31710 Pedal - Parchment
6 31711 Foot Cable
7 12524 Closet Bolt Package
8 33226 Hand Spray Kit - White
9 31708 Blade Seal
10 31713 Universal Bolt Cap - White
  31724 Universal Bolt Cap - Parchment
Misc. (Not Shown):
28962 Water Line Extension Hose
  24818 Toilet Riser - Parchment
  24967 Toilet Riser - White
  33239 Closet Flange Seal



Aqua Magic V Toilet Parts - Hand Flush:
Thetford Aqua Magic V Permanent RV Toilet Low And High Profile Hand Flush Parts Diagram
Parts List:
Key Number: Part Number: Part Description:
1 31703 Seat and Cover Assembly - White
  31704 Seat and Cover Assembly - Parchment
2 31705 Water Module Assembly
3 31738 Flush Tube and Nozzle Assembly
4 36528 Water Module Link
5 12524 Closet Bolt Package
6 33226 Hand Spray Kit - White
7 31708 Blade Seal
8 31713 Universal Bolt Cap - White
  31724 Universal Bolt Cap - Parchment
Misc. (Not Shown):
28962 Water Line Extension Hose
  24818 Toilet Riser - Parchment
  24967 Toilet Riser - White
  33239 Closet Flange Seal

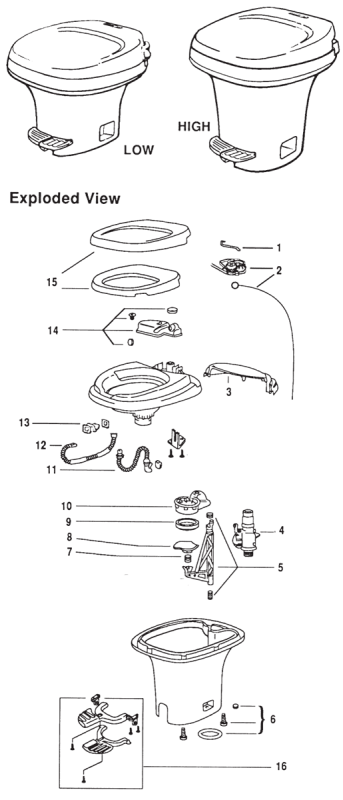

Aqua Magic IV Toilet Parts - Foot Flush
Thetford Aqua Magic IV Foot Flush RV Toilet Repair Parts Diagram
Parts List:
Key Number: Part Number: Part Description:
1 33315 Water Valve Link
2 24571 Wire Replacement Package (Post 10/19/92)
3 33199 Mechanism Cover - Parchment
  33200 Mechanism Cover - White
4 13168 Water Valve Replacement Package
5 24633 Actuator Assembly (High)
  24632 Actuator Assembly (Low)
6 12524 Closet Bolt Package
7 33317 Blade Spring
8 33308 Blade
9 33027 Blade Seal
10 33318 Blade Track
11 N/A Overflow Tube
12 33312 Flush Tube
13 24637 Nozzle Assembly
14 24630 Reservoir Tank Assembly
15 36787 Seat and Cover Assembly - Parchment
  36788 Seat and Cover Assembly - White
  36789 Seat and Cover Assembly - Ivory
16 20821 Pedal Package - Parchment
  33198 Pedal Package - White
Not Shown:
  33239 Closet Flange Seal
  24818 Toilet Riser - Parchment
  24967 Toilet Riser - White

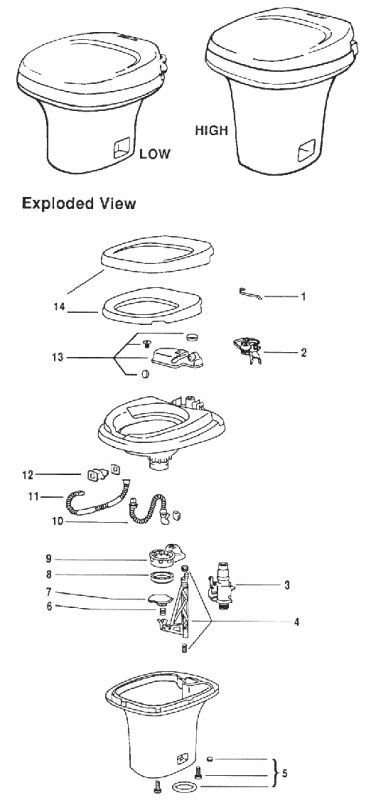

Aqua Magic IV Toilet Parts - Hand Flush
Thetford Aqua Magic IV Hand Flush RV Toilet Repair Parts Diagram
Parts List:
Key Number: Part Number: Part Description:
1 33315 Water Valve Link
2 24629 Lever Assembly
3 13168 Water Valve Replacement Package
4 24633 Actuator Assembly (High)
  24632 Actuator Assembly (Low)
5 12524 Closet Bolt Package
6 33317 Blade Spring
7 33308 Blade
8 33027 Blade Seal
9 33318 Blade Track
10 N/A Overflow Tube
11 33312 Flush Tube
12 24637 Nozzle Assembly
13 24630 Reservoir Tank Assembly
14 36787 Seat and Cover Assembly - Parchment
  36788 Seat and Cover Assembly - White
  36789 Seat and Cover Assembly - Ivory
Not Shown:
  33239 Closet Flange Seal
  24818 Toilet Riser - Parchment
  24967 Toilet Riser - White

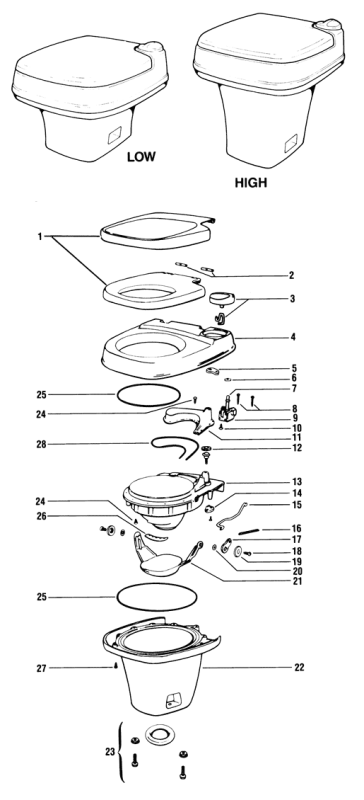

Aqua Magic III Toilet Parts
Thetford Aqua Magic III RV Toilet Repair Parts Diagram
Parts List:
Key Number: Part Number: Part Description:
1 33021 Seat and Cover Assembly - White
  20932 Seat and Cover Assembly - Parchment
2 08905 Hinge Pin
3 33020 Knob Assembly - White
  08979I Knob Assembly - Ivory
4 08779 Top
5 08875 Knob Crank
6 33299 Stem Washer
7 33296 Ball Valve Stem
8 33297 Screw
9 09989 Ball Valve Service Package
10 33298 Screw
11 08785 Vacuum Breaker Cover
12 08204 Float Assembly
13 0878262 Bowl
14 33301 Spring Mounting Bracket
15 08874 Push Link
16 33295 Spring
17 08873 Water Trap Crank
18 33306 Screw
19 33294 Water Trap Washer
20 08878 Water Trap Hinge Seal
21 0878362 Water Trap
22 08784 Base (AM III High)
22A 0996510 Base (AM III Low)
23 09031 Closet Bolt Package
24 33260 Screw
25 05387 Sealant (1 Foot)
26 33303 Water Trap Seal
27 33298 Screw
28 09972 Seal
Not Shown:
  33239 Closet Flange Seal

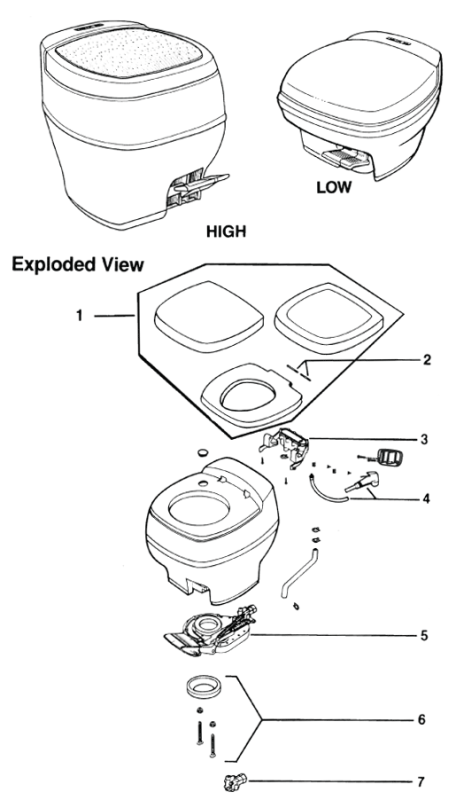

Aqua Magic Bravura Toilet Parts:
Thetford Aqua Magic Bravura RV Toilet High And Low Profile Replacement Parts Diagram
Parts List:
Key Number: Part Number: Part Description:
1 36766 Seat, Cover and Pod - White
  36767 Seat, Cover and Pod - Parchment
2 31111 Mechanism Service Package
4 31113 Water Module Service Package
5 33372 Pedal Service Package - White
  33386 Pedal Service Package - Parchment
6 31115 Closet Flange Seal Service Package
7 33226 Water Saver Service Package - White
8 33380 Shroud (high profile) - Parchment
  33382 Shroud (low profile) - Parchment
  33381 Shroud (high profile) - White
  33383 Shroud (low profile) - White
Not Shown:
  33223 Clip for Water Saver - Parchment
  33224 Clip for Water Saver - White
  33228 Clip Package for Water Saver - White
  31112 Mechanism Repair Kit
  33239 Closet Flange Seal

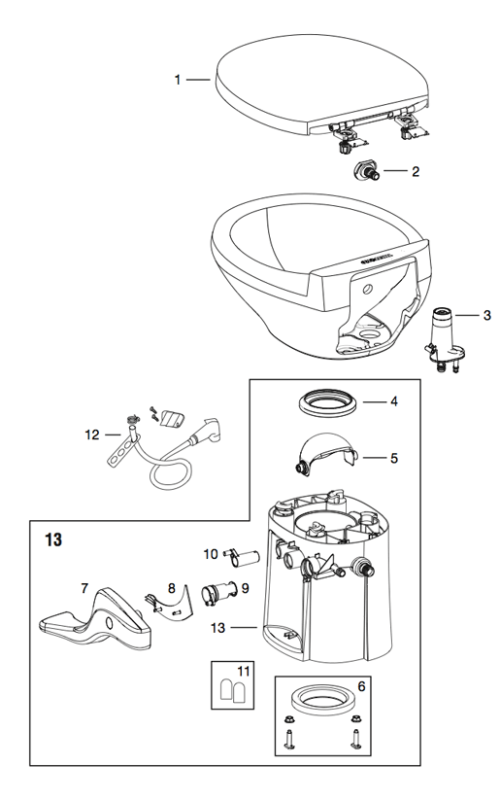

Aqua Magic Residence Toilet Parts:
Thetford Aqua Magic Residence RV Toilet Repair Parts Diagram
Parts List:
Key Number: Part Number: Part Description:
1
42178 Seat and Cover Assembly - White

42179 Seat and Cover Assembly - Bone
2
34124 Nozzle - White
  34125 Nozzle - Bone
3
34122 Vacuum Breaker
4
34120 Waste Ball Seal
5
34117 Waste Ball - White
6
42115 Closet Bolt Package
7
42067 Pedal - High - White

42068 Pedal - High - Bone

42078 Pedal - Low - White

42079 Pedal - Low - Bone
8
42080 Pedal Cover Insert - White

42081 Pedal Cover Insert - Bone
9
42049 Water Valve
10
42048 Waste Ball Drive Arm
11
42111 Bolt Caps - White

42112 Bolt Caps - Bone
12
19289 Chrome Hand Spray Kit (Water Saver Option Only)
13
42137 Base Kit - High - White

42138 Base Kit - High - Bone

42135 Base Kit - Low - White

42136 Base Kit - Low - Bone
Not Shown:
  33239 Closet Flange Seal



Aqua Magic Style II Toilet Parts:
Thetford Aqua Magic Style II Replacement Repair Parts Diagram
Parts List:
Key Number: Part Number: Part Description:
1 42036 Seat and Cover Assembly - White
  42037 Seat and Cover Assembly - Bone
2 34124 Nozzle - White
  34125 Nozzle - Bone
3 34122 Vacuum Breaker
4 34120 Waste Ball Seal
5 34117 Waste Ball - White
6 42115 Closet Bolt Package
7 42067 Pedal - High - White
  42068 Pedal - High - Bone
  42078 Pedal - Low - White
  42079 Pedal - Low - Bone
8 42080 Pedal Cover Insert - White
  42081 Pedal Cover Insert - Bone
9 42049 Water Valve
10 42048 Waste Ball Drive Arm
11 42111 Bolt Caps - White
  42112 Bolt Caps - Bone
12 19289 Chrome Hand Spray Kit (Water Saver Option Only)
Not Shown:
  33239 Closet Flange Seal
  24818 Toilet Riser - Parchment
  24967 Toilet Riser - White



Aqua Magic Style Plus Toilet Parts

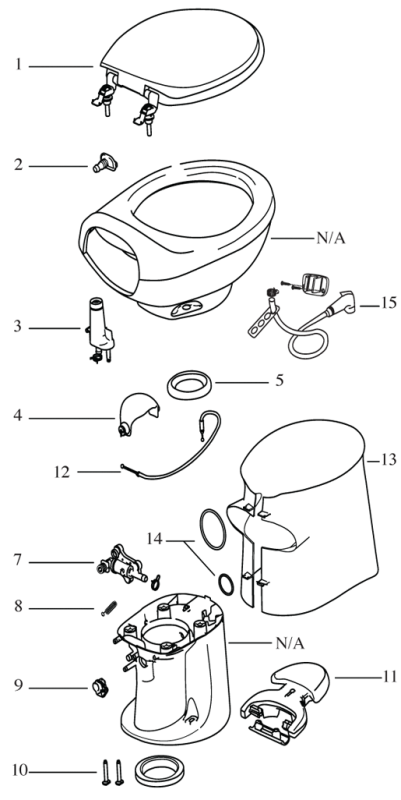

Thetford Aqua Magic Style Plus Repair Parts Diagram
Parts List:
Key Number: Part Number: Part Description:
1 34144 Seat and Cover Assembly - White
  34145 Seat and Cover Assembly - Bone

34146 Seat and Cover Assembly - Black
2 34127 Nozzle
3 34122 Vacuum Breaker
4 34117 Waste Ball - White
5 34120 Waste Ball Seal
7 34100
Water Valve with Drive Arm
8 34110 Water Valve Return Spring
9 34102 Waste Ball Drive Arm
10 28971 Closet Bolt Package - White Bolt Caps
  28972 Closet Bolt Package - Bone Bolt Caps
11 34114 Pedal - White
  34115 Pedal - Bone
  34116 Pedal - Black
12 34106 Pedal Cable Kit
13 34138 Shroud - High - White
  34139 Shroud - Low - White
  34140 Shroud - High - Bone
  34141 Shroud - Low - Bone

34142 Shroud - High - Black
14 34136 Shroud O-rings
  34137 Shroud O-rings — Bulk pack of 20
15 19289 Chrome Hand Spray Kit (Water Saver Option Only)
 Not Shown:
  33239 Closet Flange Seal
  24818 Toilet Riser - Parchment
  24967 Toilet Riser - White



Aqua Magic Style Lite Toilet Parts:

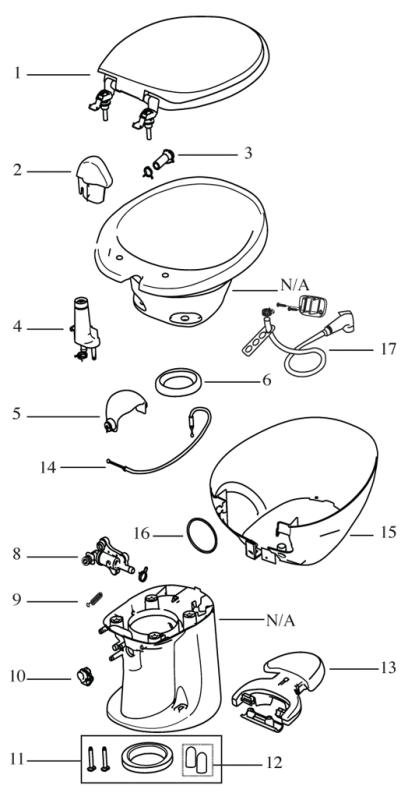

Thetford Aqua Magic Style Lite RV Toilet Repair Parts Diagram
Parts List:
Key Number: Part Number: Part Description:
1 34144
Seat and Cover Assembly - White
  34145 Seat and Cover Assembly - Bone
2 34129 Pod - White
  34130 Pod - Bone
3 34124 Nozzle - White
  34125 Nozzle - Bone
4 34122 Vacuum Breaker
5 34117 Waste Ball - White
6 34120 Waste Ball Seal
8
34100 Water Valve With Drive Arm
9 34110 Water Valve Return Spring
10 34102 Waste Ball Drive Arm
11 28971 Closet Bolt Package - White Bolt Caps
  28972 Closet Bolt Package - Bone Bolt Caps
12 31713 Bolt Caps (2) - White
  31724 Bolt Caps (2) - Bone
13 34112 Pedal - White
  34113 Pedal - Bone
14 34106 Pedal Cable Kit
15 34133 Bowl Wrap - White
  34134 Bowl Wrap - Bone
16 34131 Wrap O-Ring
  34132 Shroud O-Rings - Bulk Pack Of 20
17 19289 Chrome Hand Spray Kit (Water Saving Option Only)
Not Shown:
  38065 Washer
  33239 Closet Flange Seal
  24818 Toilet Riser - Parchment
  24967 Toilet Riser - White





Aria Classic Toilet Parts
Thetford Aria Classic RV Toilet Repair Parts Diagram
Parts List:
Key Number: Part Number: Part Description:
1 33384 Seat and Cover Assembly - White
  33385 Seat and Cover Assembly - Bone
2 36746 Nozzle Assembly Package - White (Requires Clear Silicone Sealant)
  36747 Nozzle Assembly Package - Bone (Requires Clear Silicone Sealant)
3 19831 Water Valve
4 19832 Water Valve Return Spring
5 19629 Spacer Kit (Includes one 3/8 inch spacer and two 1/8 inch spacers)
6 19834 Mechanism Assembly
7 19833 Blade Seal
8 19835 Cable Assembly For High Profile
  19836 Cable Assembly For Low Profile
9 19837 Pedal Package - White
  19838 Pedal Package - Bone
10 19828 Hole Plug - White
  19829 Hole Plug - Bone
Not Shown:
  19830 Vacuum Breaker
  19618 Mounting Bolt Package
  19616 Bolt Caps Package - White
  19712 Bolt Caps Package - Bone
  19289 Chrome Hand Spray Kit (Water Saver Option Only)
  19696 1/8 Inch Spacer - Bulk Pack Of 24
  19697 3/8 Inch Spacer - Bulk Pack Of 24
  33239 Closet Flange Seal



Aria Deluxe I & Aria Deluxe II Toilet Parts
Thetford Aria Deluxe II RV Toilet Repair Parts Diagram
Parts List:
Key Number: Part Number: Part Description:
1 33384
Seat and Cover Assembly - White
  33385 Seat and Cover Assembly - Bone
2 19710 Nozzle Assembly Package (Aria I Only) - Bone (Requires Clear Silicone Sealant)
3 28964
Key Pad Flush Switch - White
  28965 Key Pad Flush Switch - Bone
4 19616 Bolt Caps Package - White
  19428-95 Bolt Caps Package - Bone
5 19624 Mechanism Plate Package - White
6 19627 Mechanism Blade Seal
7 19613 Mechanism Assembly - Includes White Mechanism Plate
8 19621 Seal Replacement Package (Aria I Only)
9 19618 Mounting Bolt Package
10 19629 Spacer Kit (Includes one 3/8 inch spacer and two 1/8 inch spacers)
11 19671 Vacuum Breaker Replacement Package (Aria I Only)
  28966 Vacuum Breaker Replacement Package (Aria II Only)
12 19625 Tube Replacement Package (Aria I Only)
13 19620 Water Solenoid Valve (Aria I Only)
  28967 Water Solenoid Valve (Aria II Only)
14 19617 Water Connection Fitting
15 28968 Controller Assembly Package
16 19623 Wiring Harness
  28969 Wiring Harness (Aria II Only)
17 19622 Motor Replacement Package
18 19628 Mechanism Repair Washer
19 19696 1/8 Inch Spacer - Bulk Pack Of 24
20 19697 3/8 Inch Spacer - Bulk Pack Of 24
Not Shown:
  19630 Fuse Replacement
  19619 OEM Installation Kit
  33239 Closet Flange Seal



Aqua Magic Galaxy & Aqua Magic Starlite Toilet Parts
Thetford Aqua Magic Starlite and Galaxy RV Toilet Repair Parts Diagram
Parts List:
Key Number: Part Number: Part Description:
1 36768 Seat Cover (SL-SH) - White
  36769 Seat Cover (SL-SH) - Parchment
2 33326 Hinge Pin
3 20830 Vacuum Breaker Replacement Package
4 08993 Water Saver Package
5 24203 Mechanism - Parchment (7/14/90 to present)
  33213 Mechanism - White (7/14/90 to present)
6 08975 Mounting Package
7 09868 Ball Valve Replacement Package
Not Shown:
  08368 Mechanism Seal Repair Package
  33239 Closet Flange Seal
  24818 Toilet Riser - Parchment
  24967 Toilet Riser - White
  14622I Mechanism Repair Kit - Ivory



Aqua Magic Aurora Toilet Parts
Thetford Aqua Aurora RV Toilet Repair Parts Diagram
Parts List:
Key Number: Part Number: Part Description:
1 36769 Seat and Cover - Parchment
  36768 Seat and Cover - White
2 33060 Hinge Post Replacement Kit - Bone
  33059 Hinge Post Replacement Kit - White
3 33185 Upper Mechanism Replacement Assembly - Clear
4 19292 Hinge Pins (2)
5 19278 Vacuum Breaker Replacement Package
6 19280 Flush Tube
7 33183 Flush Nozzle Replacement Package - Bone
  33184 Flush Nozzle Replacement Package - White
8 19289 Chrome Hand Spray Kit (Water Saver Option Only)
9 33190 Side Access Covers (2) - Bone
  33189 Side Access Covers (2) - White
10 19283 Water Valve Replacement Package
11 33186 Lower Mechanism Replacement Package - Bone
  33187 Lower Mechanism Replacement Package - White
12 19309 Closet Flange Seal & Bolt Package
Not Shown:
  28100 Seal Replacement Package - Upper Mechanism
  33239 Closet Flange Seal
  24818 Toilet Riser - Parchment
  24967 Toilet Riser - White
Please enable JavaScript for Full Site Functionality
