3500 LB Axles

Triton 11123 | Number 10 AUT82 Trailer Axle Idler | 3500 LB
REG. $999.99
Sale! - $834.99
You Save $165.00 (16.5%)
Free Shipping
Triton 23062 | Idler Axle For TC167 Inline Hybrid Snowmobile Trailers
REG. $863.99
Sale! - $719.99
You Save $144.00 (16.7%)
Free Shipping
Shorelander 6615503 Trailer Axle Weldment 92 Inch Axle Weldment
REG. $524.99
Sale! - $436.99
You Save $88.00 (16.8%)
Free Shipping
Shorelander 7150916 | Trailer Axle Weldment Black | 92 Inch Width
Out of Stock
REG. $479.99
Sale! - $399.99
You Save $80.00 (16.7%)
Free Shipping

3500 LB Capacity Trailer Axles

Axles

Hanna Trailer Supply carries the most expansive selection of Triton parts you will find online. We carry replacement Triton axles for almost every Triton trailer model. We also carry Shorelandr' axles for your boat trailer. All of our axles come with free shipping anywhere in the continental United States. Also, check out our selection of replacement trailer axle parts including axle pads, spindles, and spindle sleeves.



When selecting an axle for your application, remember to consider the following important specifications.

LOAD CAPACITY

  • The load rating of the axle must support the maximum gross vehicle weight rating. For multiple axle trailers divide the GVW by the number of axles to determine the minimum load capacity of each axle.

TRACK LENGTH

  • Measure your axle track length by determining the distance between the center of one tire to the center of the other tire. A more precise measurement can be made by measuring the distance from one 'HUB FACE' to the other. The hub face is also known as the mounting surface where the wheel studs are located.

SPRING CENTERS

  • Measure the distance from the center of one spring to the center of the other. NOTE: not required for replacement torsion axles.

OVERALL LENGTH

  • Measure the distance from the very end of an axle's spindle to the very end of the opposite spindle.

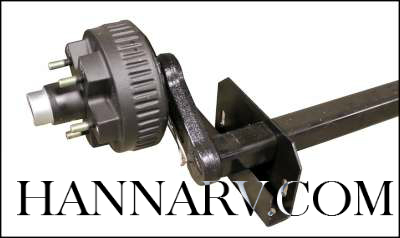

AXLE STYLE

  • Important when reusing old mounting hardware and also for proper tire clearance. Includes straight axles (round or square), drop axles with offset spindles, and torsion axles. Also consider spindle size when reusing existing hubs or drums.



 Check out our full line of Trailer Parts & Accessories or contact Hanna RV for more information on axle assembly products.
