Trailer Parts Pro H84545BX Boxed PreGreasedHub Assembly - 5 on 4.5 - L68149/L44649 Bearings - Fits Most 3500 Lbs Axles - #84 Spindle

Brands:
Product Number: TPP-H84545BX
Vendor Number: H84545BX
$59.95 $49.99

Trailer Parts Pro H84545BX Boxed PreGreasedHub Assembly - 5 on 4.5 - L68149/L44649 Bearings - Fits Most 3500 Lbs Axles - #84 Spindle

Product Number: TPP-H84545BX
Vendor Number: H84545BX
$59.95 $49.99 You Save $9.96 (16.6%)
Adding this item to your cart will qualify your order for US domestic

QTY:

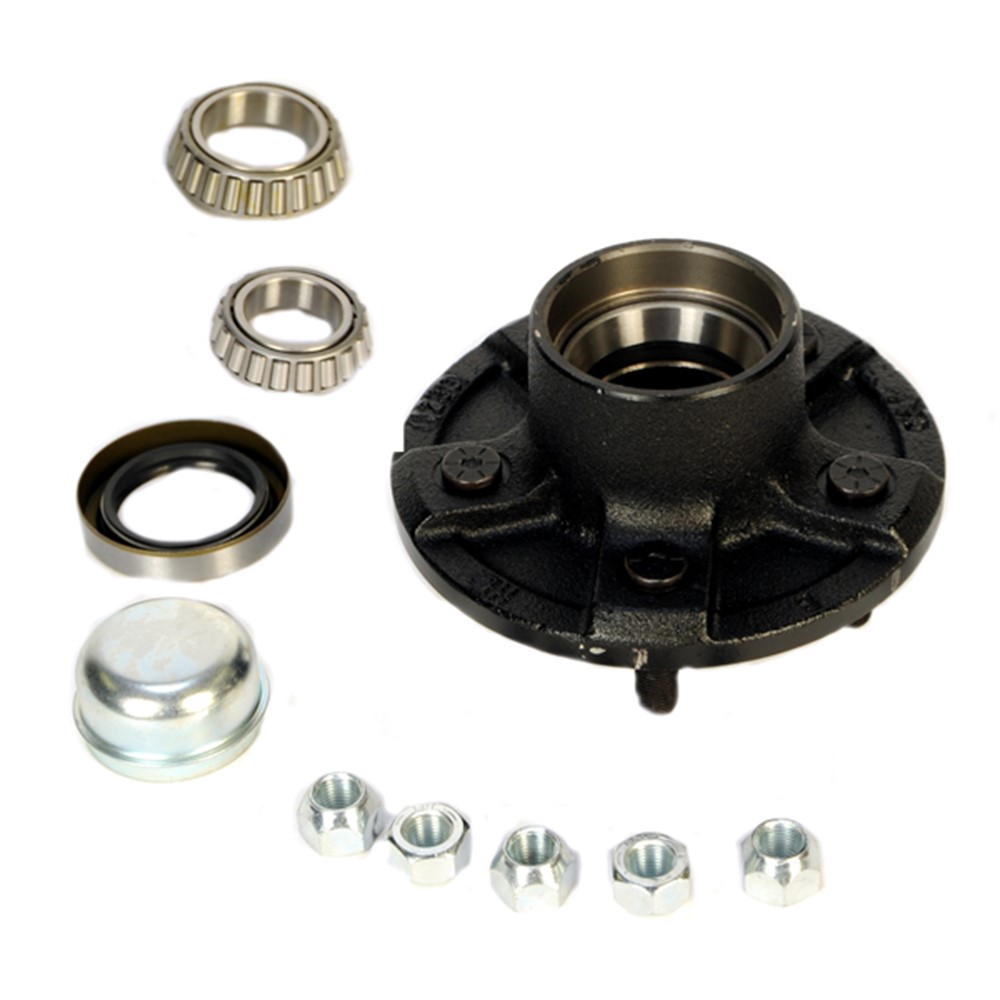

This is a ready to install Idler H84545BX Boxed Hub Assembly - 5 on 4.5 - L68149/L44649 Bearings - Fits Most 3,500 Lbs Axles with #84 Spindle made by Trailer Parts Pro

Trailer Parts Pro hub kits come with some of your main components like the inner and outer bearings.  With Trailer Parts Pro kits there is no need to worry about the races as they are already pressed into the hub for you.  You will also get the grease seal, grease cap, and wheel nuts for the hub.  This hub is designed for use with a #84 spindle.  Each Hub has a 1,750lb capacity.  Spindle nut and spindle washer sold separately.

 The kit comes with labor-saving Pre-Greased and Pre-Installed Bearings, Races, Seal, as well as Standard and Grease-Lube Dust caps and wheel nuts.

 Reference#: 107049

Product Specifications

  • L68149 Inner / L44649 Outer Bearings
  • Capacity of 1,750 lbs. per each
  • Fits #84 Spindle
  • Std. Grease or E-Z LUBE® Application
  • Used on Dexter and most 3,500 lb. axles
  • 5 on 4.5” Hub Available in Galvanized finish



Items in Kit

• 1x L68149 Inner Bearing (1.378" ID)
• 1x L44649 Outer Bearing (1.063" ID)
• 1x L44610 Outer Race (Already Pressed In) 1.98" OD
• 1x L68111 Inner Race (Already Pressed In) 2.361" OD
• 1x 10-19 Grease Seal (1.719" x 2.565")
• 1x 46749 Grease Cap (1.986" OD)
• 1x 21-41-1 Grease Cap (1.986" OD)
• 1x 85-1 Grease Cap Plug
• 5x X1023R Coned Wheel Nuts
• 1x 5 on 4.5" Pregreased Hub For Convenience
• 1,750lb Capacity Per Hub


To determine the bolt circle on hubs or wheels with an odd number of bolt holes, measure from outside to center of the studs across the pattern(bolt patterns are always measured in inches). Example: If you were to number the studs 1, 2, 3, then you would measure from the outside of stud 1 to the center of stud 3.





Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
