Dexter 84545BX Boxed Hub Assembly - 5 on 4.5 - L68149/L44649 - For 3500 Lbs Axles - Fits #84 Spindle
Dexter 84545BX Boxed Hub Assembly - 5 on 4.5 - L68149/L44649 - For 3500 Lbs Axles - Fits #84 Spindle
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume. Thank you for your understanding.
Dexter 84545BX Boxed Hub Assembly - 5 on 4.5 - L68149/L44649 - For 3500 Lbs Axles - Fits #84 Spindle
This boxed Dexter Trailer Hub Assembly includes lug nuts, inner bearing (L68149) and race, outer bearing (L44649) and race, grease cap and grease seal. Fits 3,500-lb axles.
Product Specs
- Trailer hub assembly fits idler axles
- Bearings, races, grease seal, grease cap, wheel bolts, and lug nuts are included
- Application: most 3,500-lb axles, including Dexter
- Bolt Pattern: 5 on 4-1/2"
- Wheel bolt diameter: 1/2"
- Includes bearings, races, seal, grease cap, wheel bolts and lug nuts
- Bearings:

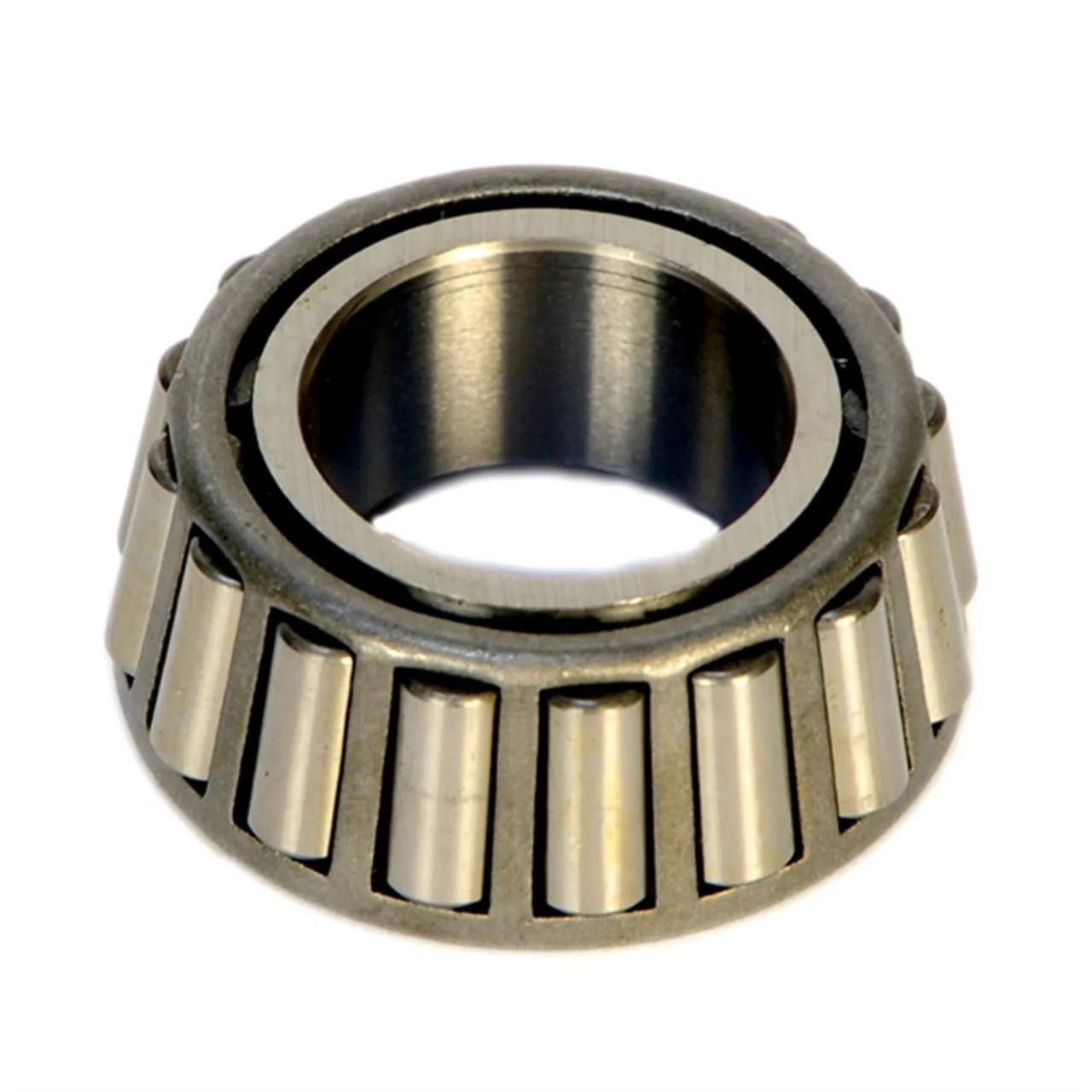

- Inner bearing: L68149
- Outer bearing: L44649
- Grease seal: 58846
- Grease cap: 1.986" outer diameter
- Bearings:
- Capacity: 1,750 lbs
- Wheel size: 13" to 17-1/2"
- Sturdy iron construction
- Hub and drum are made in the USA
Bearing, Race, and Seal Information
- Bearings (included)
- Inner bearing: L68149 (1.378" inner diameter)
- Outer bearing: L44649 (1.063" inner diameter)
- Races (included)
- Inner race: L68111
- Outer race: L44610
- Grease seal (included): 58846
- Inner diameter: 1.719"
- Outer diameter: 2.565"
Dexter Trailer Hubs and Drums - 84545BX
- 5 on 4-1/2 Inch
- For 3500 lbs Axles
- Hub
- 13 Inch Wheel
- 14 Inch Wheel
- 14-1/2 Inch Wheel
- 15 Inch Wheel
- Standard
- 1/2 Inch Stud
- L44649
- L68149
- Dexter
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
