Dexter 8-248-50UC1 GAL-DEX Complete Hub Assembly - 5 on 4.5 - L68149/L44649 Bearings - Fits #84 Spindles
Dexter 8-248-50UC1 GAL-DEX Complete Hub Assembly - 5 on 4.5 - L68149/L44649 Bearings - Fits #84 Spindles
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume. Thank you for your understanding.
Dexter 8-248-50UC1 GAL-DEX Complete Hub Assembly - 5 on 4.5 - L68149/L44649 Bearings - Fits #84 Spindles
This Dexter Galvanized Complete Trailer Hub Assembly is great for marine use. Trailer hub fits 3,500 idler axles. Inner bearing (L68149) and race, outer bearing (L44649) and race, grease seal, grease cap, and galvanized lug nuts included.
Product Features
- Marine-grade trailer hub assembly fits idler axles
- Includes bearings, races, grease seal, grease cap, and zinc-coated lug nuts
- Zinc plating has a 500-hour salt spray rating
- Ideal for use on a boat or snowmobile trailer
- Durable enough for saltwater applications
Product Specs
- Application: 3,500-lb axles
- Bolt pattern: 5 on 4-1/2"
- Wheel studs: 1/2" diameter x 2-1/4" long
- Weight capacity: 1,750 lbs
Bearing, Race, and Seal Information
- Bearings (included)
- Races (included)
- Inner race: L68111
- Outer race: L44610
- Grease seal (included): 10-19 (58846)
- Inner diameter: 1.719"
- Outer diameter: 2.565"
Corrosion Resistance for Marine Use
This trailer hub assembly has a zinc coating that resists corrosion, making it ideal for use on your boat or snowmobile trailer. All GAL-DEX hubs undergo a test in which they are sprayed with a 5-percent salt solution to determine corrosion resistance over time. These products are able to withstand 500 hours of constant exposure to the saltwater mist. This 500-hour salt spray rating indicates that a product is not only durable enough to last in freshwater environments, but it can also be used on trailers that come into contact with saltwater

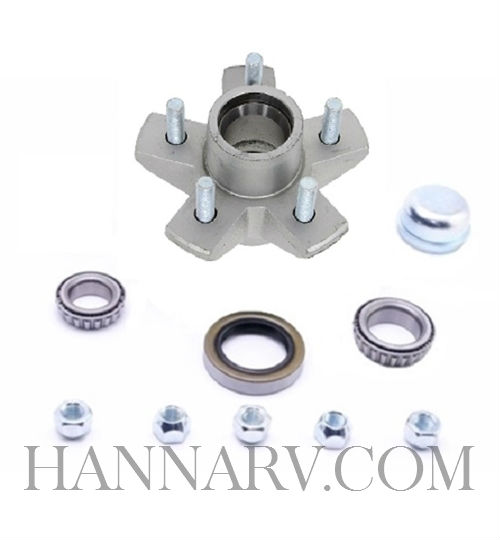

Items in Kit
• 1 L68149 Inner Bearing (1.378" ID)• 1 L44649 Outer Bearing (1.063" ID)
• 1 L44610 Outer Race (Already Pressed In) 1.98" OD
• 1 L68111 Inner Race (Already Pressed In) 2.361" OD
• 1 10-19 Grease Seal (1.719" x 2.565")
• 1 46749 Grease Cap (1.986" OD)
• 5 X1023R Coned Wheel Nuts
• 1 5 on 4.5" Galvanized Hub
• 1,750lb Capacity Per Hub
To determine the bolt circle on hubs or wheels with an odd number of bolt holes, measure from outside to center of the studs across the pattern(bolt patterns are always measured in inches). Example: If you were to number the studs 1, 2, 3, then you would measure from the outside of stud 1 to the center of stud 3.
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
