4.8 X 12 Triton 06509 Class C Trailer Tire with Steel Rim - Pair

Product Number: 06509 x2
Vendor Number: 06509 x2
$299.95 $249.99

4.8 X 12 Triton 06509 Class C Trailer Tire with Steel Rim - Pair

Product Number: 06509 x2
Vendor Number: 06509 x2
$299.95 $249.99 You Save $49.96 (16.7%)
Adding this item to your cart will qualify your order for US domestic

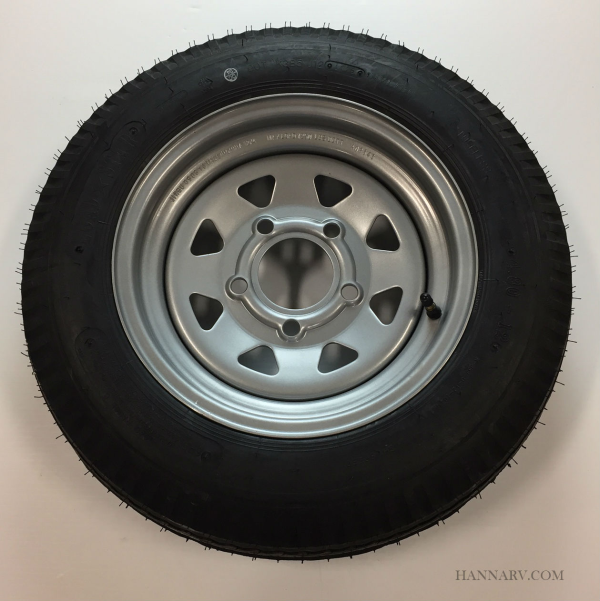

  • Silver powder coated rims with 5 on 4.5 bolt circle.

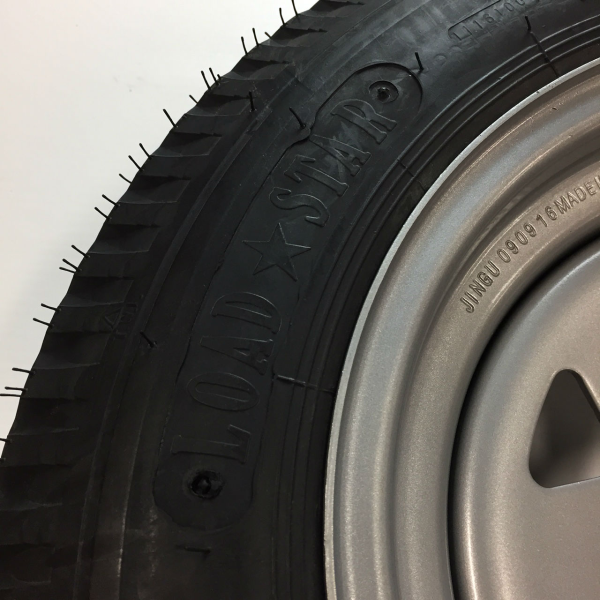

  • Load Star tires 4.8 x 12 load range C tubeless
  • Max load 990 lb at 90 psi.

Load Star snowmobile trailer tires are mounted on powder coated wheels with a 5 on 4.5 bolt pattern. These are OEM replacement tire and wheel assemblies for triton snowmobile trailers. These also work on many popular brands of snowmobile trailers as 4.8 x 12 replacement snowmobile trailer tires. This will fit popular brands like Triton, Floe, R & R, Karavan, Aluma, Mission, Worthington, Newmans, Sledbed and Loadmaster.

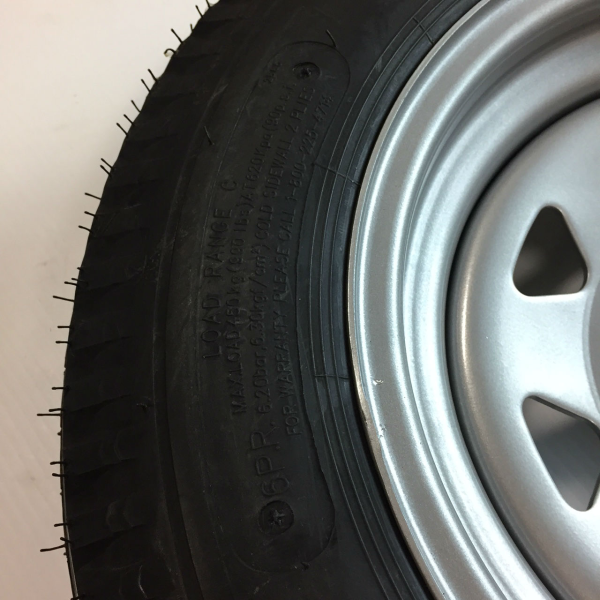

Load Star 4.8 x 12 snowmobile trailer tire and wheel assemblies are rated load range C. That means these snowmobile trailer tires are load rated at 990 lb. at 90 psi. These snowmobile trailer tires can be used with both torsion suspensions or leaf spring suspensions and are highway speed rated.

Our snowmobile trailer tires are mounted on silver powder coated rims for maximum corrosion resistance. Snowmobile trailer tires mounted on painted rims often show signs of rust after only 1 season. Snowmobile trailer tires mounted on powder coated rims will last several seasons.


Notice From Manufacturer

Triton is currently using the same size Load Star tire mounted on a different style rim in production. All new trailers coming off the assembly line with 4.80 x 12 tire and rim assemblies will now and in the future be outfitted with this new rim style until further notice.  If you wish to purchase this tire/rim and require the old style spoke rim as pictured, or the new style rim (not pictured), please contact us to specify which one you would like us to ship when you place your order.

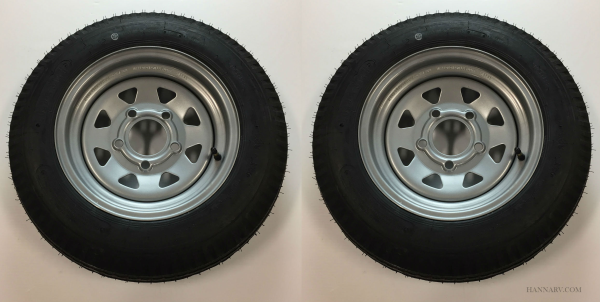

This product listing is for a pair of 4.8 X 12 Triton 06509 Class C Snowmobile Trailer Tires And Wheel Assemblies. These are the OEM Triton trailer tires and wheels.


Ask the Triton Expert

"Why should I go with tire upgrades?"

There are a number of reasons to go with upgrade tires. Besides a sort of "peace of mind" with a bigger tire, some upgrades offer radial tires and aluminum rim upgrades as added options. Additional carrying capacity is not available with an upgrade. Carrying capacity is the combination of frame strength, axle load capacity, and tire capacity. Just by adding bigger tires does not give you more because you need to increase all three factors. Taller tires will give you more clearence when needed but it will increase ramp angle on some trailer models.

"What is the tire air pressure I should be using?"

All trailer tires should be inflated to the maximum PSI listed on the sidewall of all tires sold. The total weight capacity of the tire, as listed, is based on the tire being inflated to that tire pressure. Please check the sidewalls of your tires for your tires MAX PSI because they do vary.


Additional Information

Triton Snowmobile Trailers Brochure

Hanna Trailer Supply Snowmobile Trailers - Available Now!

Hanna Trailer Supply Snowmobile Trailer Parts and Accessories

A Comprehensive Guide for Getting Your Snowmobile Trailer Ready for the Season

Trailer Wheel And Tire Resources

How to Properly Secure the Wheel Bolts or Nuts When Mounting a Trailer Tire

How to Check for Tire Wear

Where to Find the Maximum Load Capacity and Maximum PSI for Trailer Tires

How to Determine What Bolt Pattern I Have for My Trailer Wheels (Template Available)

What to Use to Help Break Rusted or Stuck Lug Nuts Free (Corrosion Block CB-12)





Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Customers Also Bought:
5.3 X 12 Triton 4153 Class C Snowmobile Trailer Tire - Pair
REG. $323.95
Sale! - $269.99
You Save $53.96 (16.7%)
Free Shipping
5.3 X 12 Triton 04153 Class C Snowmobile Trailer Tire - Single
REG. $166.95
Sale! - $138.99
You Save $27.96 (16.7%)
Free Shipping

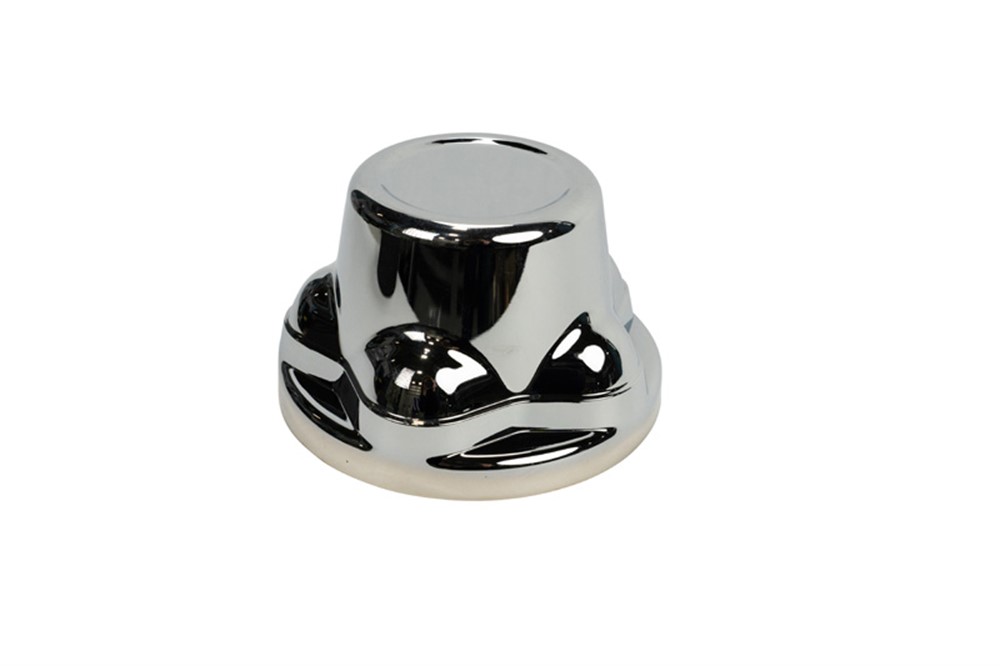

Triton 03848-P Grease Cap and Rubber Plug - 2 Pack
