Dexter AH25555FCOMP Dexter Agricultural Complete Idler Hub Assembly AS2500F Spindle Grease Lube 5K Capacity Per Pair 5 on 5.5in Bolt Pattern Bulk
Product Details
Agricultural Hub Kit W/ 5 on 5.5in Bolt Pattern For 5,000lb Axles
There is no need to worry about the races as they are already pressed into the hub for you. The bearings, grease seal, grease cap, and wheel nuts for the hub are included. Each hub has a capacity of 2,500lbs. Spindle nut and spindle washer sold separately.
• Agricultural hubs are designed for low speed applications not to exceed 20 MPH

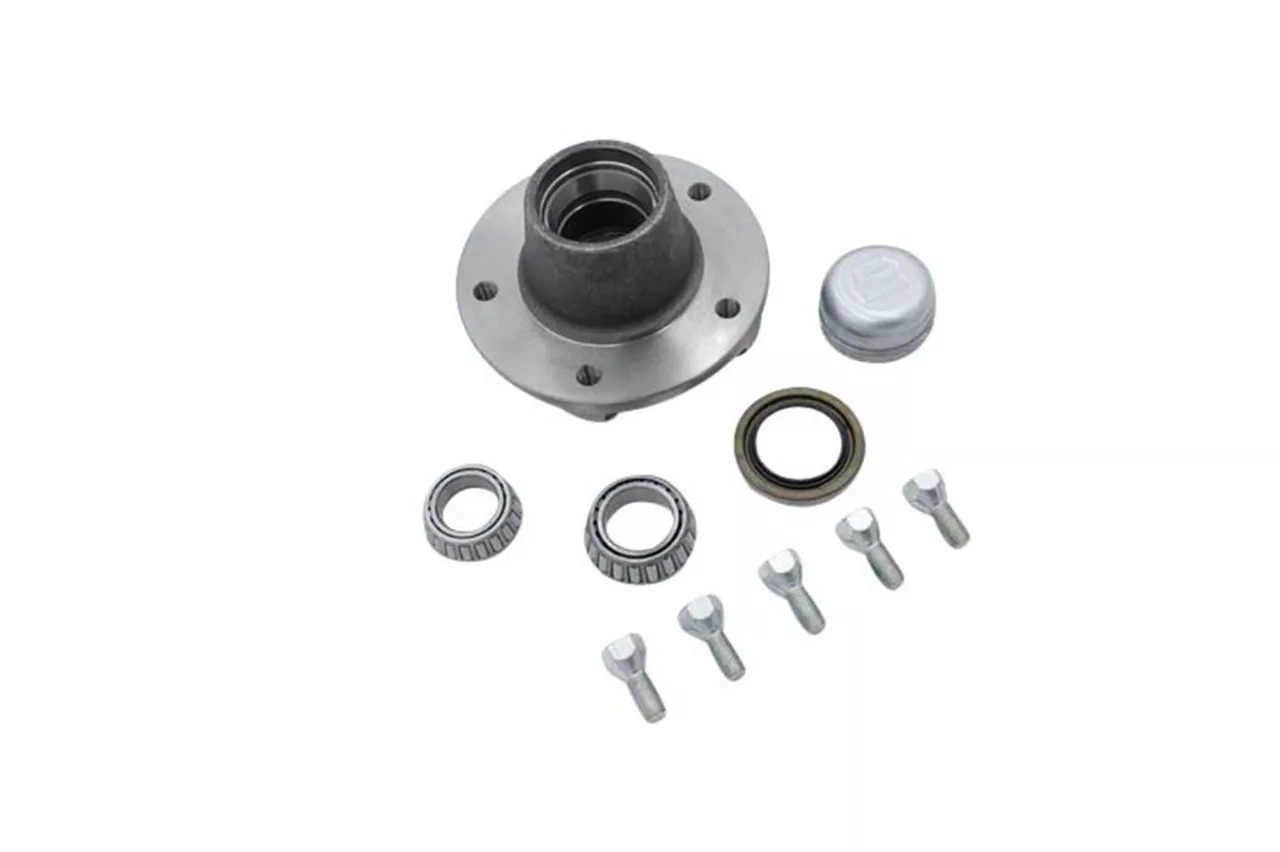

Items in Kit:
• 1 LM67048Outer Bearing (1.25in ID)
• 1 LM48548Inner Bearing (1.375in ID)
• 1 LM67010 Outer Race (Already Pressed In) 2.328in
• 1 LM48510 Inner Race (Already Pressed In) 1.781in
• 1 SL175 Grease Seal (1.5in x 2.332in)
• 1 45896 Grease Cap (2.44in)
• 5 LB509 Wheel Bolts
• 1 5 on 5.5in Hub
• 2,500lb Capacity Per Hub
| Bolt Pattern | 5 on 5.5in |
|---|---|
| Axle Capacity Rating Per Pair | 5K |
| Fits Spindle | AS2500F |
| Stud Size | 1/2in |
| Included with this item | Hub, Bearings, Seal, Grease Cap, Lug Nuts |
| Inner Bearing Part Number | LM48548 |
| Lubrication | Grease |
| Outer Bearing Part Number | LM67048 |
| Seal Inner Diameter | 1.750in |
| Thread Count | 20 |
| Package Type | Bulk Packaged |
| Weight | 11.2 Lbs |
Dexter Reference#: 126000
