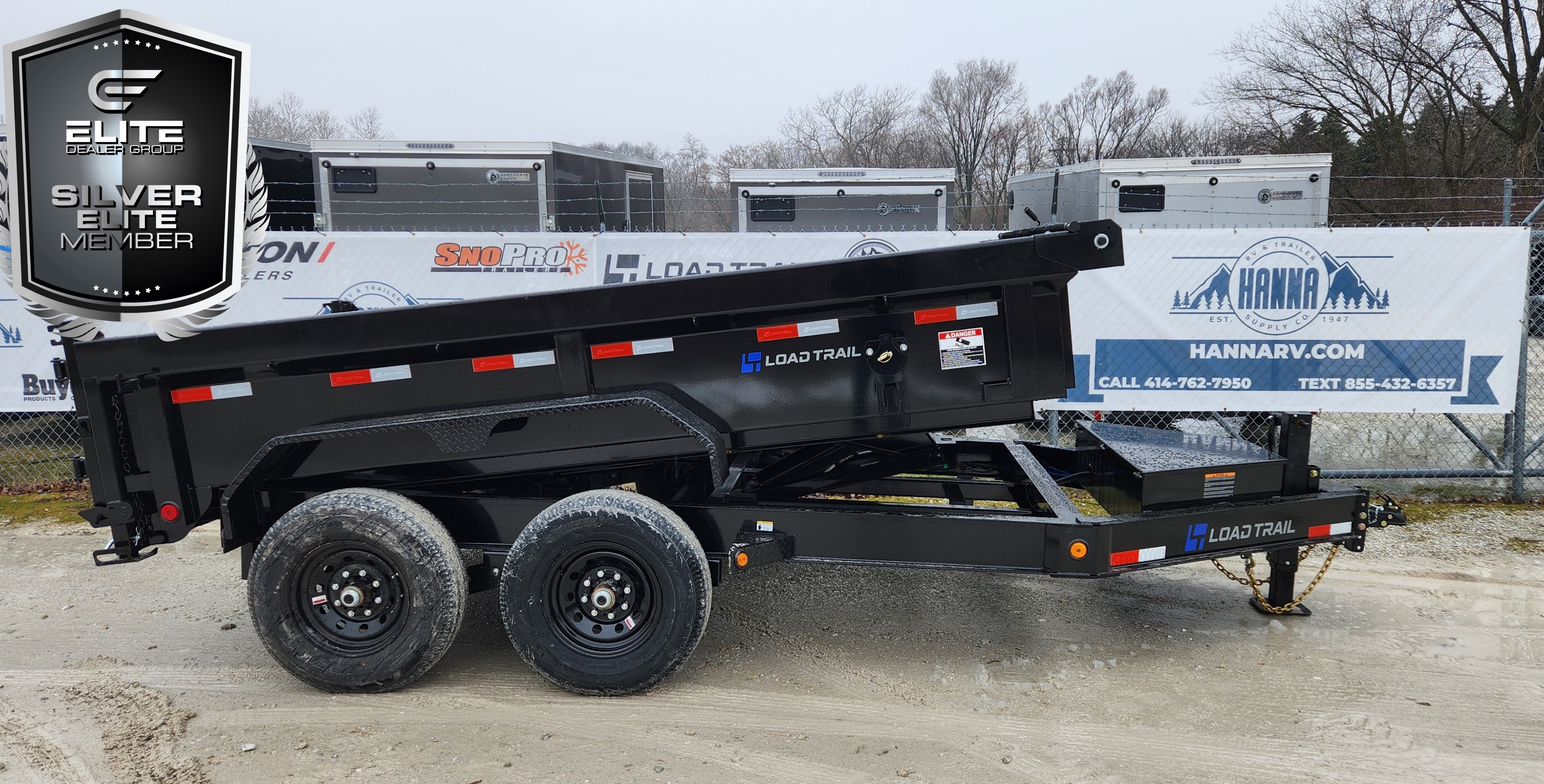

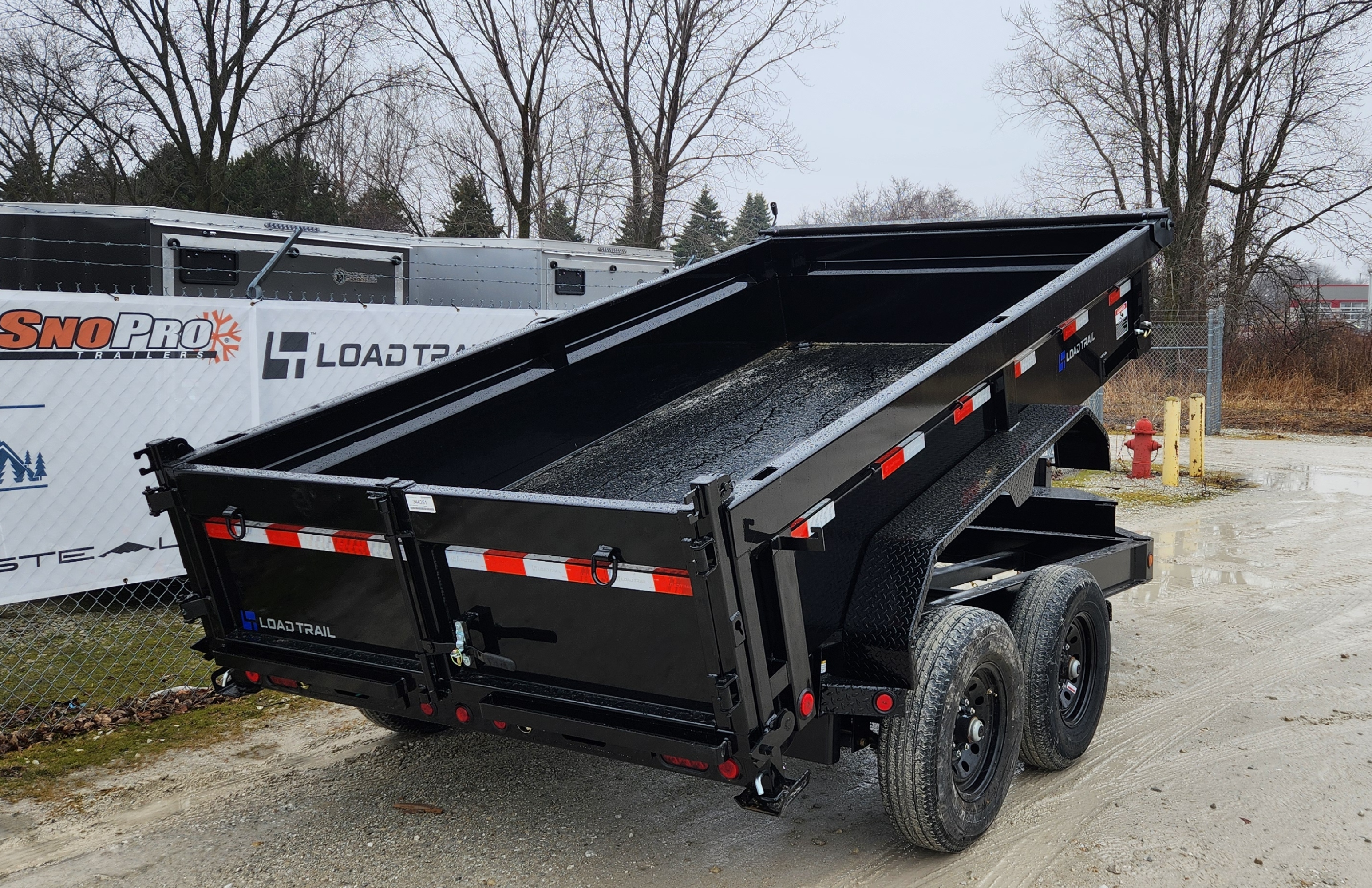

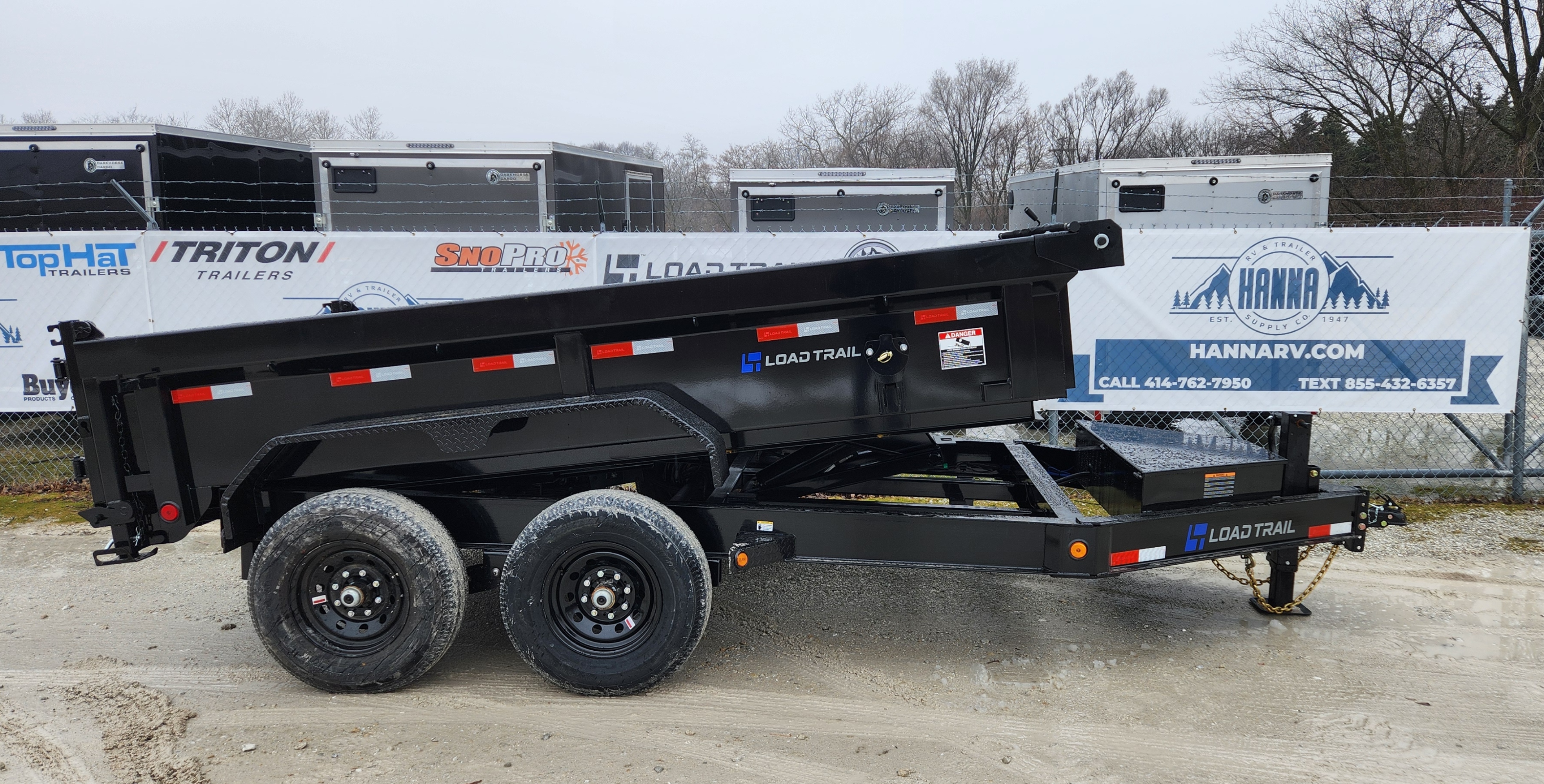

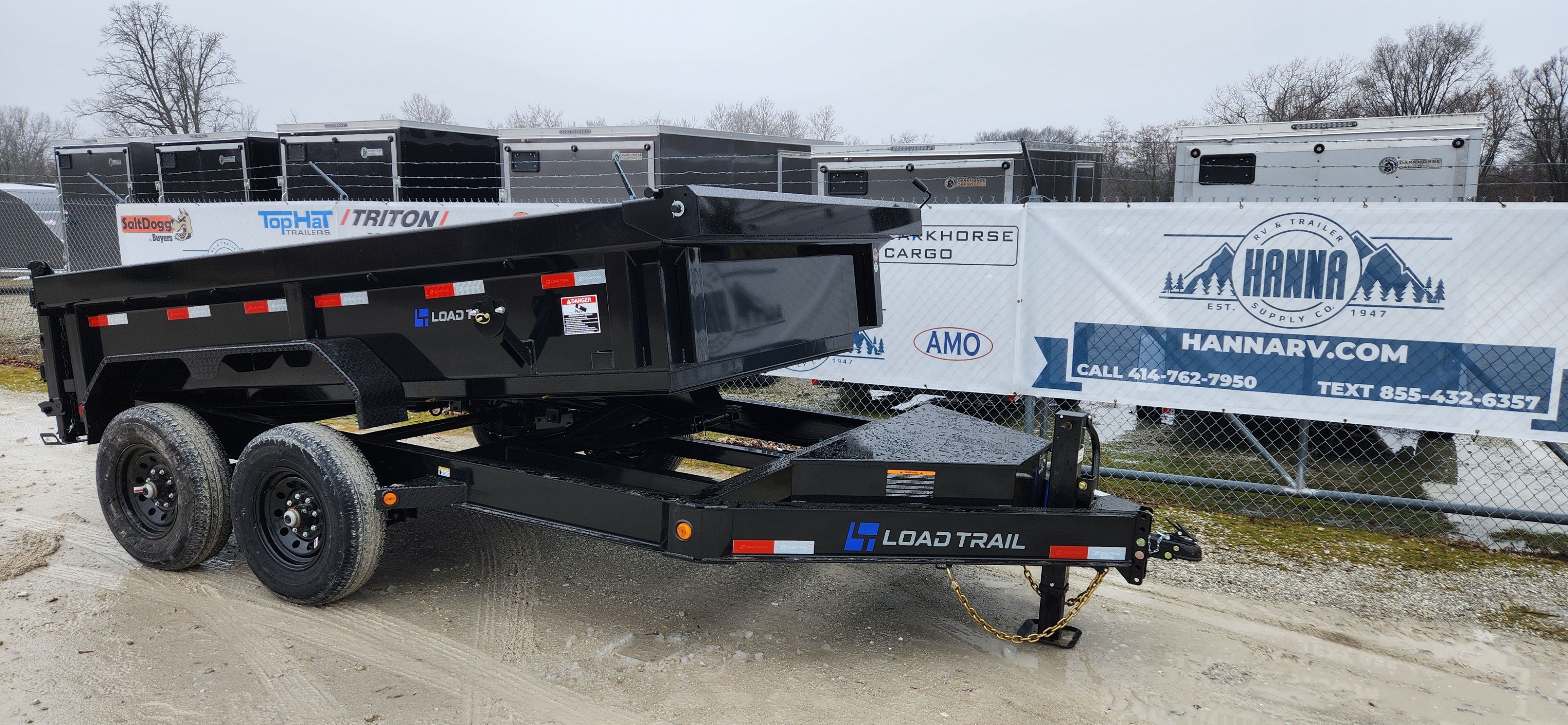

Load Trail 83" X 12' Tandem Axle 14,000 Lb Low Profile Dump Trailer with Scissor Lift (DL8312)

 Cash / Check Price: $9,329

Credit Card Add 3%

Trailer Features:

• Two 7,000 lb Dexter Axles Drop (Forward Adjusting Electric Brakes on Both Axles)
• ST235/80/R16 LRE 10 Ply Tires (Black wheels)

• 2-5/16" Adjustable 6 Hole Coupler
• Weld On Diamond plate fenders
• 24" High Dump Sides
• 16" Cross-members
• 24" 2 Way Gate with Slide-In Ramps (80" x 16")
• 10K Lb loaded drop leg jack spring

• LED Lighting

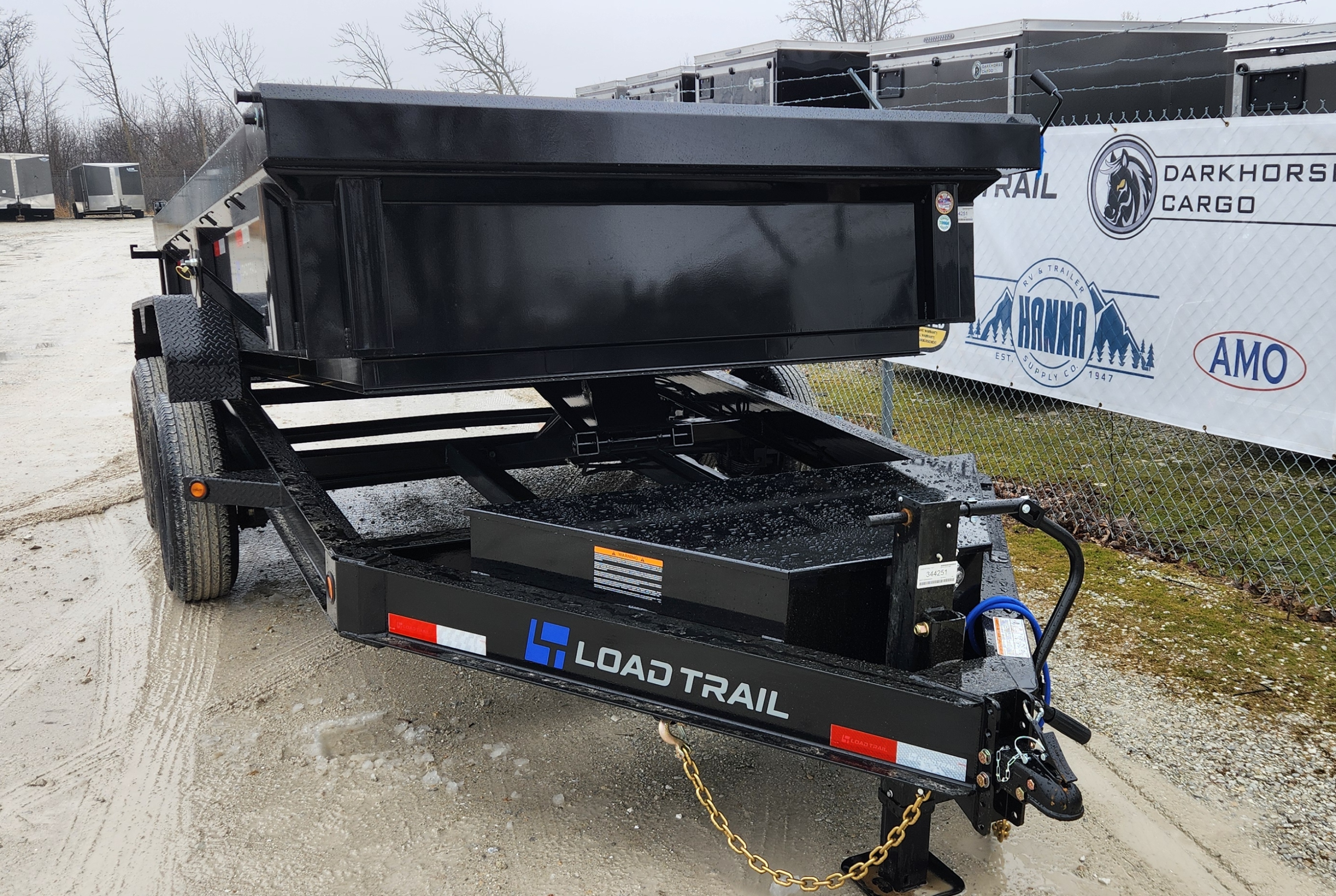

• Front Tongue Mount (Max-Box w/ Divider)
• Four 4" Weld On D-Rings

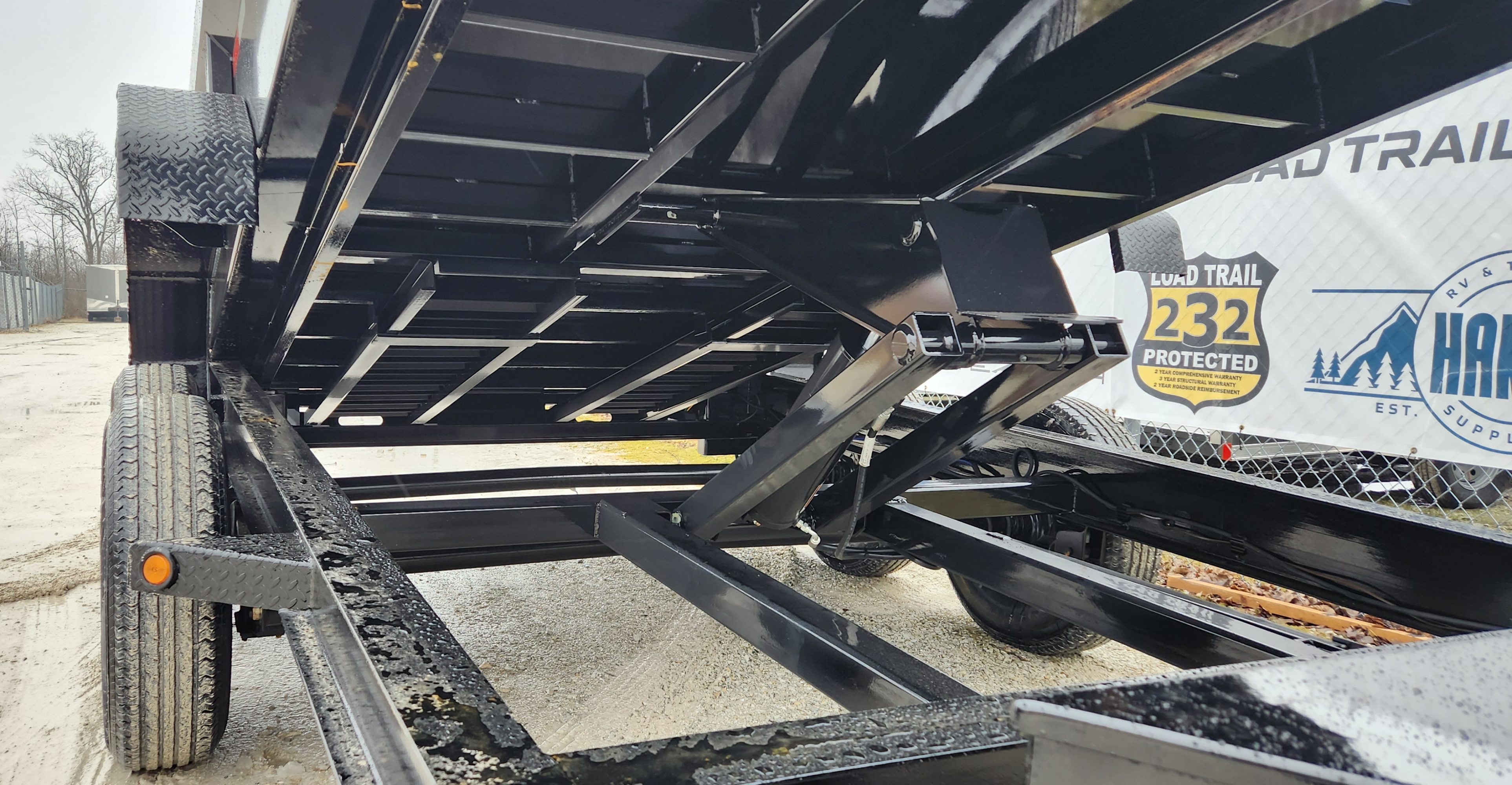

• Scissor Hoist with Standard Pump
• Standard Battery wall charger ( 5 Amp)
• Rear Support Stands (2" x 2" Tubing)
• 30" Max Step
• Spare Tire Mount
• Powder Coated Finish

Trailer Specs:

• GVWR: 14,000 lbs
• Trailer Weight: 4,070 lbs
• Payload: 9,930 lbs
• Tarp: E-Z Lock Mesh Tarp System with Cover
• Side Rails: 10 Ga.
• Gate: 2-Way Spreader Gate
• Bed Crossmembers: 3" Channel
• Bed Frame: 4" Channel

• Safety Chains:  5/16 x 28 G#70
• Wheels: 16" 8-Hole Powder Coated

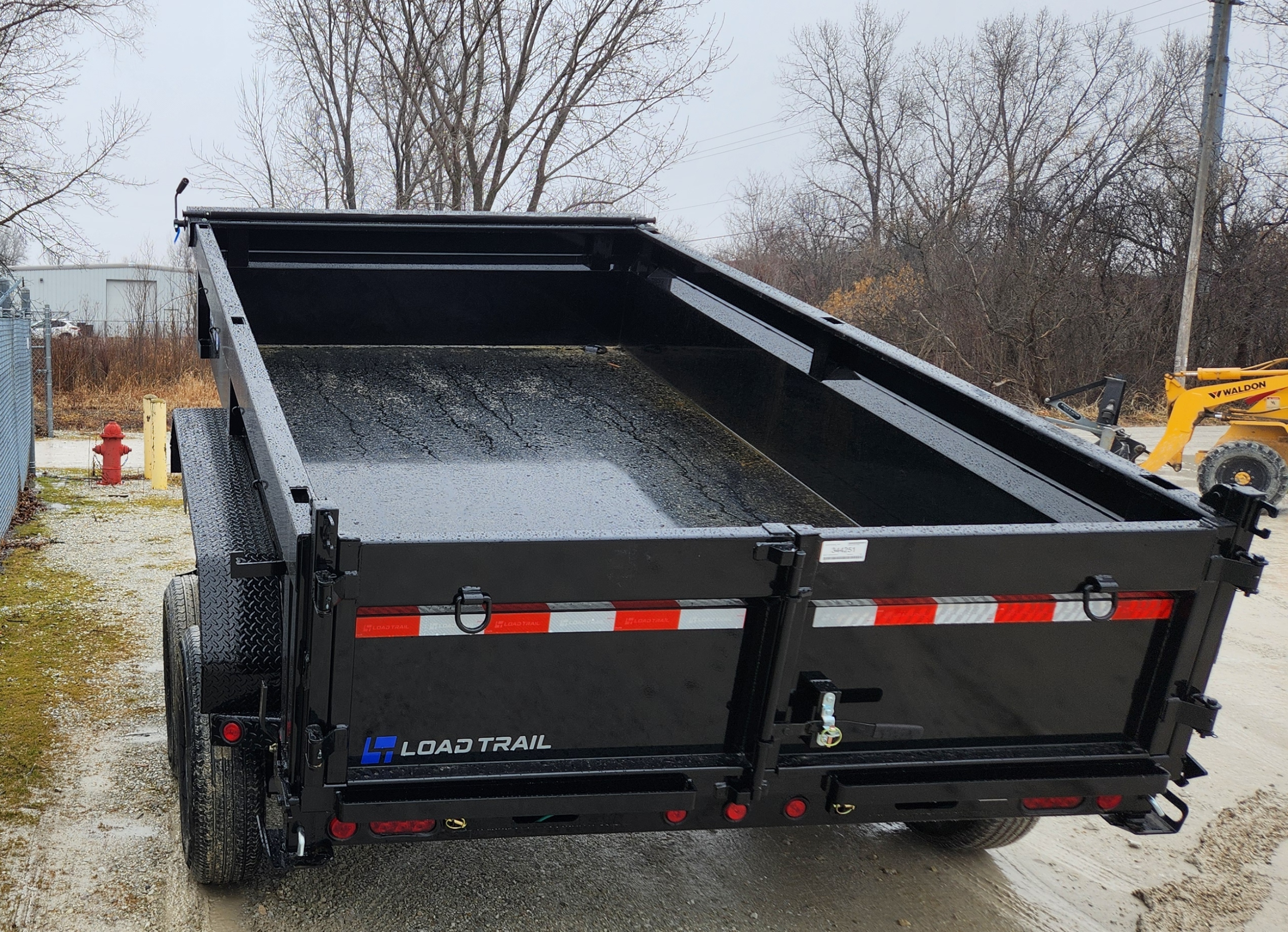

• Flooring: 10 Ga. Smooth Plate
• Tongue & Neck: 8" I-Beam (12 lbs/ft)
• Tool Box: Front Tongue Mount
• Suspension: Multi-Leaf Slipper Spring
• Crossmembers: 5" Channel (6.7 lbs/ft)
• Frame: 8" I-Beam (10 lbs/ft)
• Lights: D.O.T. Approved Stop, Tail, Turn and Clearance LED
• Fenders: Weld On Diamond Plate
• Wire Harness: 16 Ga. 5-Way Double Insulated Harness w/7-way plug
• Finishing Coat: Sherwin-Williams Powdura Polyester TGIC Gloss Powder Coating
• Finish (prep): Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
• Hydraulic Cylinder: 5" x 15.75 x 2"
• D-Rings: 4" Standard D-Rings

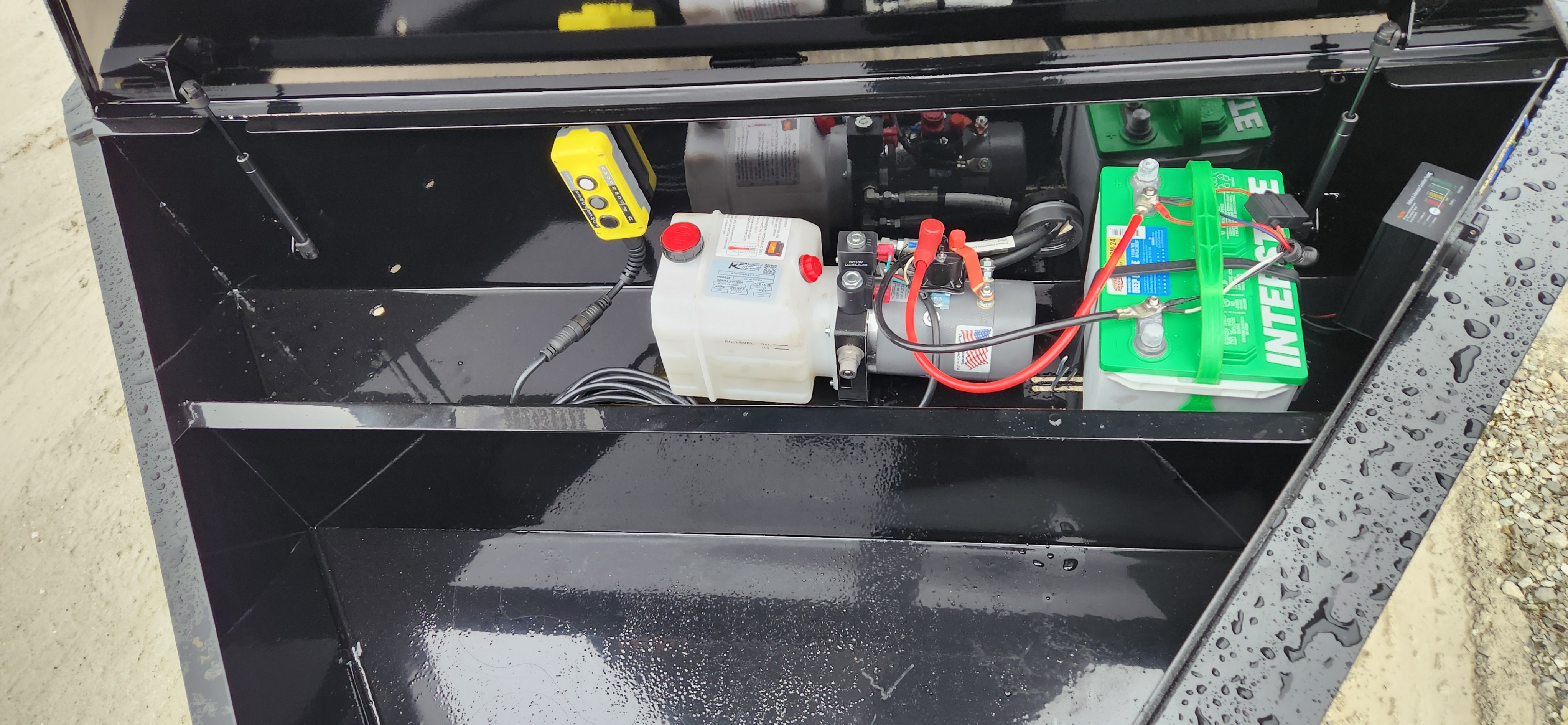

• Hydraulic Power Unit: Double Acting Power Unit

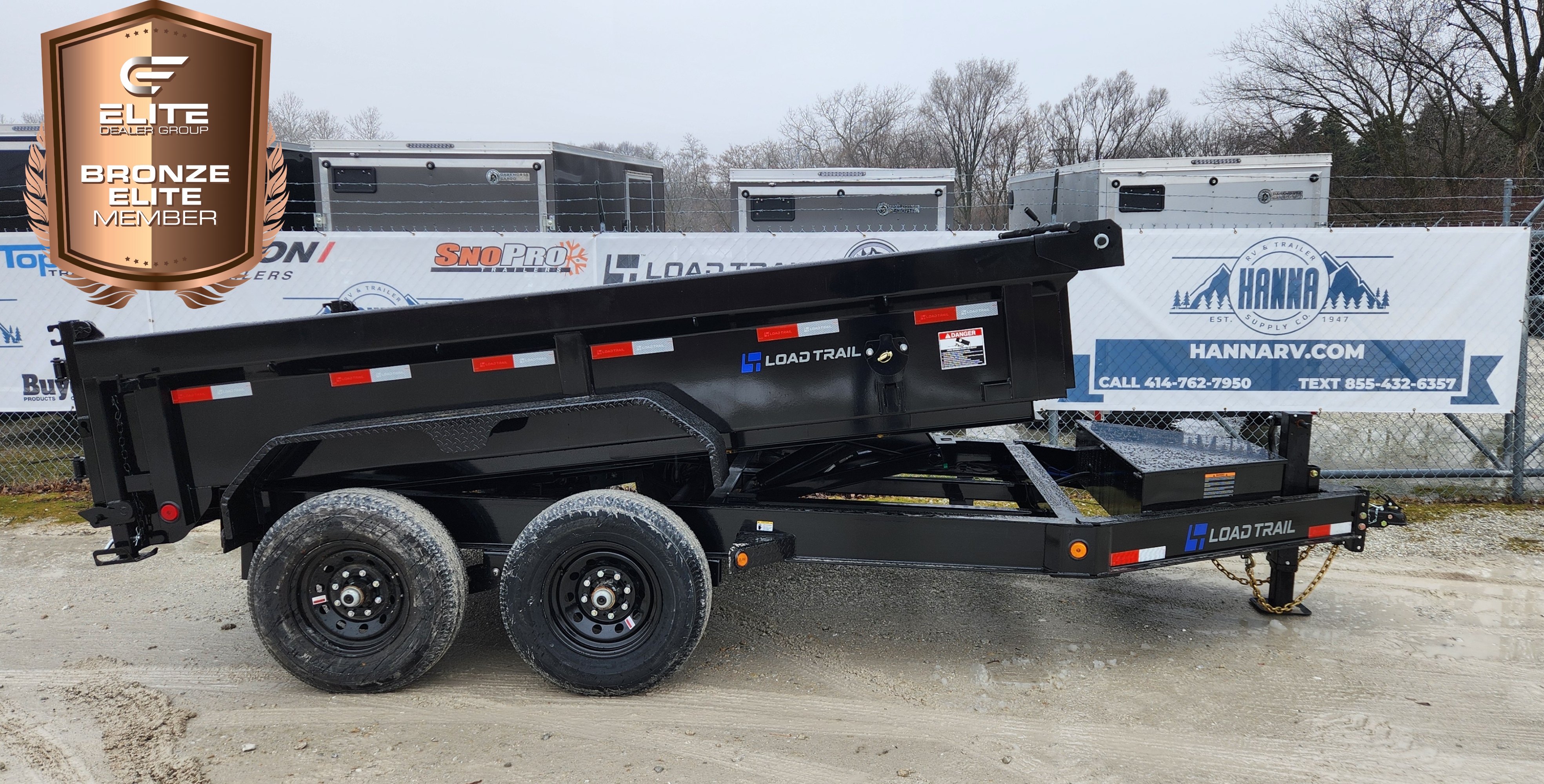

Elite Bronze Member Dealer – Load Trail Trailers & Parts
