Triton Pontoon "Short" Hub - Pregreased 5-Bolt Idler Trailer Hub Assembly for Triton Pontoon Axles - 5 on 4.5 inch
Triton Pontoon "Short" Hub - Pregreased 5-Bolt Idler Trailer Hub Assembly for Triton Pontoon Axles - 5 on 4.5 inch
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

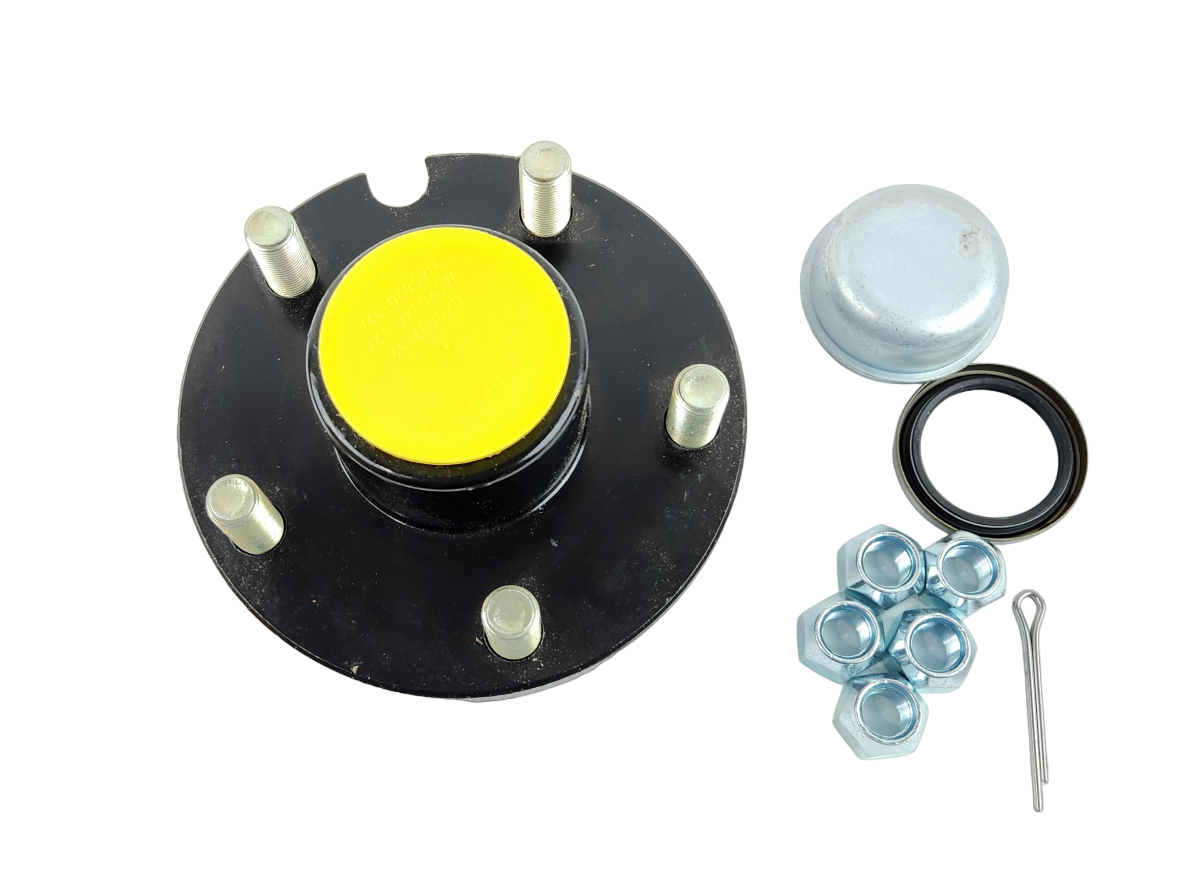

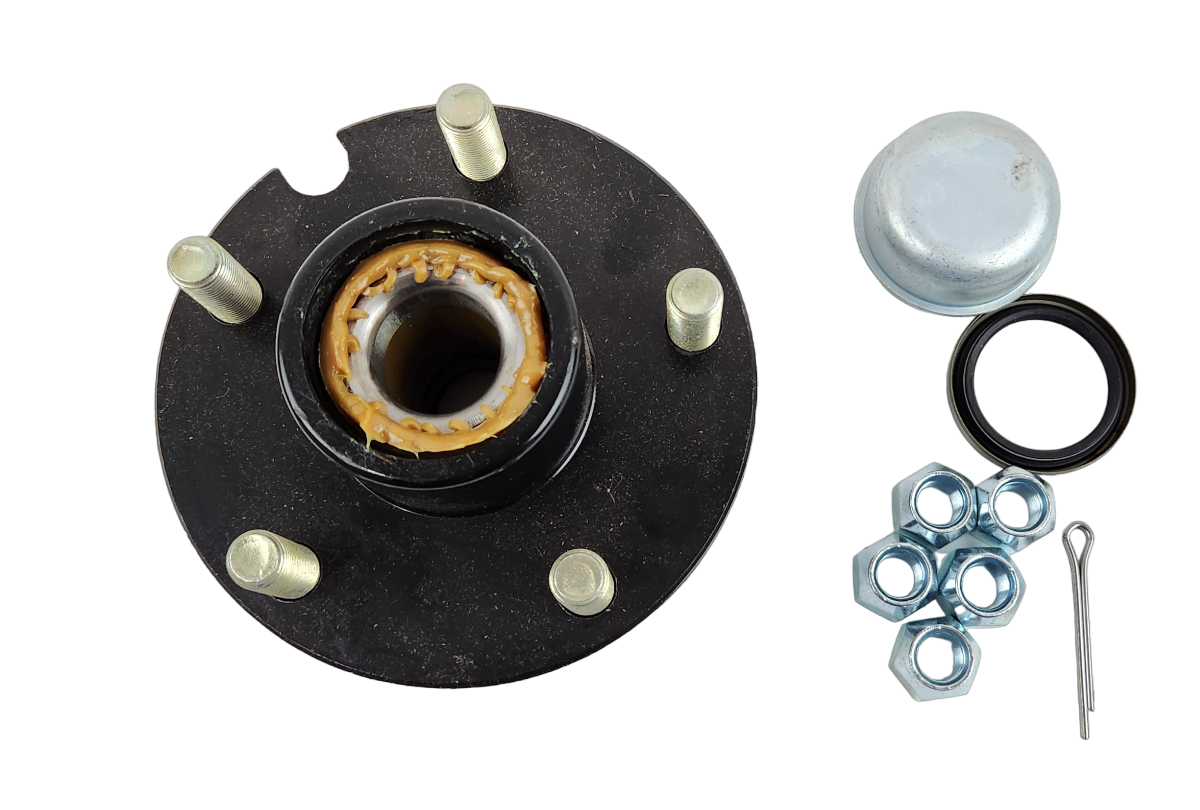

This is the special "short" hub used on all Triton Pontoon trailers. This is not a normal trailer hub, it will only fit Triton Pontoon trailers. The hub comes with with pre-greased and pre-assembled wheel bearings and grease seal.
Bolt Pattern: 5 on 4-1/2
Kit Includes:
(1) Hub (1-150A-04-02) 5 Studs on 4-1/2″ Bolt Circle, 1,350 lbs. Capacity Each
(2) Cups (L44610) installed
(5) Grade 8, Zinc Plated, Studs 1/2″-20 (ST-502-04) installed
(2) 1-1/16″ Bearing Cones (L44649) installed
(1) 1-1/4″ I.D. Grease Seal (SL-122-1) installed
Loose in a bag:
(5) Stud Nuts 1/2″-20 Thread Size (STN-506)
(1) 1.98″ Dust Cap (1505)
(1) 1-1/2″ I.D. Grease Seal (SL-150-1)
(1) Cotter Pin (SCP-103)
