PR3 Double Eye 3 Leaf Spring for 3,500 lb Trailer Axles - 25-1/4" Long - 2 Pack
PR3 Double Eye 3 Leaf Spring for 3,500 lb Trailer Axles - 25-1/4" Long - 2 Pack
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume. Thank you for your understanding.

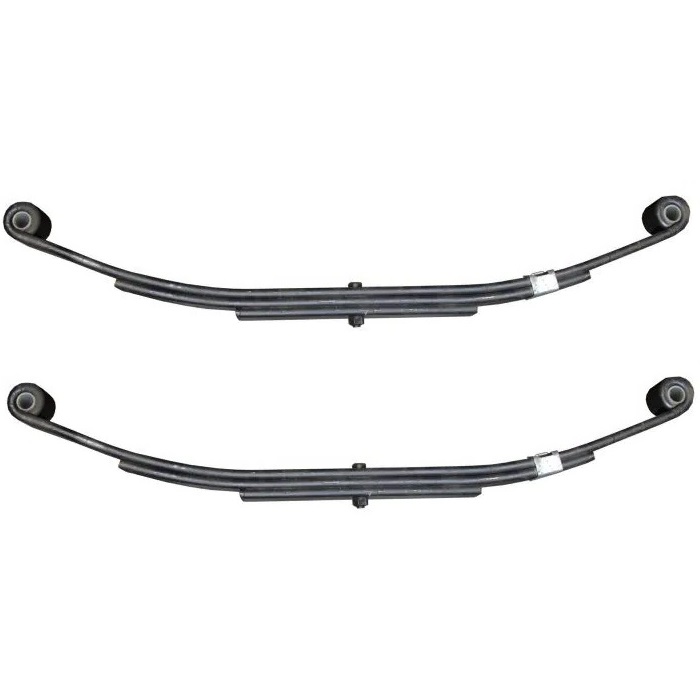

VideosReplace worn or broken leaf springs on 3,500 lb trailer axles with these PR3 double eye 3 leaf springs.

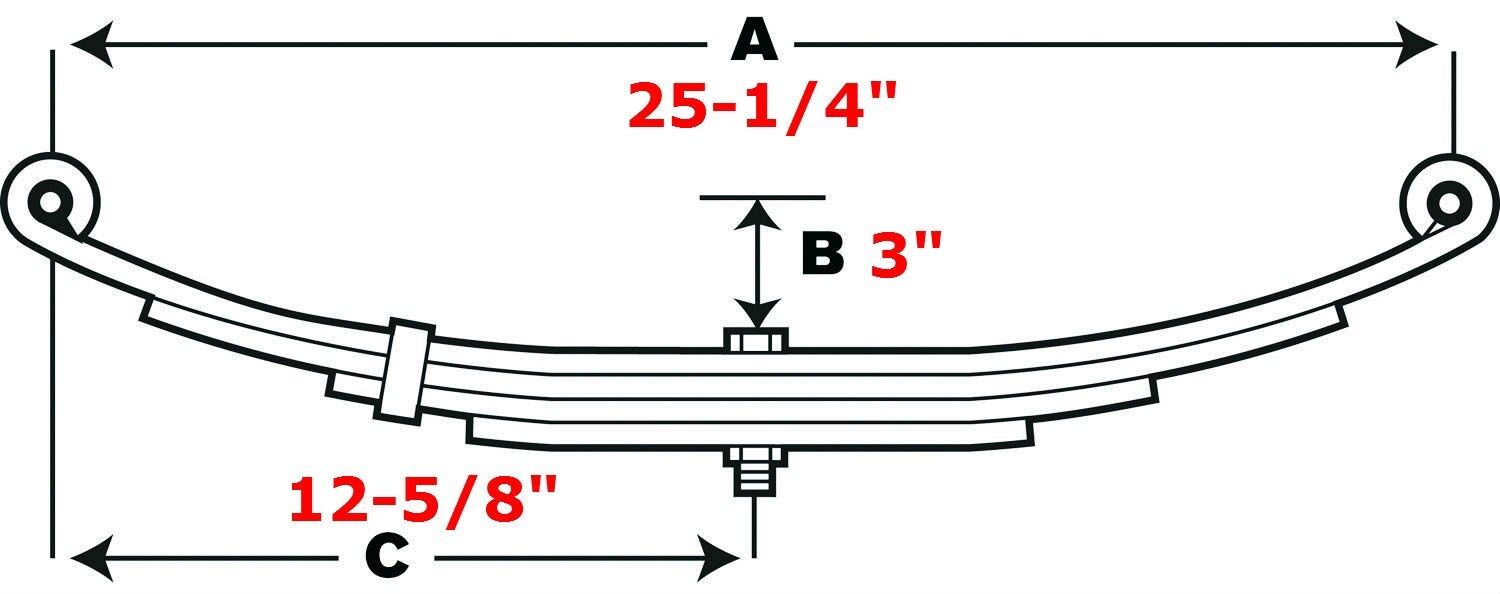

PR3 Leaf Spring Dimensions:
- Number of Leaves: 3
- Capacity: 1,750 lbs per spring
- A (Length): 25-1/4"
- B: 3"
- C: 12-5/8"
- Width: 1-3/4"
- Eye diameter with bushing (included): 9/16"
- Eye diameter without bushing: 11/16"
This listing is for two replacement leaf springs.
To measure trailer leaf springs, first, you should remove the leaf spring from the trailer. Then, measure the length of the spring from the center of the front eyelet to the center of the rear eyelet. Additionally, measure the width of the spring, the thickness of the leaf material, and the number of leaves in the spring pack. These measurements are crucial for determining the appropriate replacement leaf spring for the trailer.
