2-3/8" Round Double Eye 3 Leaf Spring Kit for 3,500 lb Trailer Axles

Product Number: PR3-KIT
Vendor Number: PR3-KIT
$124.95 $99.99

2-3/8" Round Double Eye 3 Leaf Spring Kit for 3,500 lb Trailer Axles

Product Number: PR3-KIT
Vendor Number: PR3-KIT
$124.95 $99.99 You Save $24.96 (20.0%)
Adding this item to your cart will qualify your order for US domestic


Replace worn or broken leaf springs on 3,500 lb round trailer axles with this double eye 3 leaf spring kit.

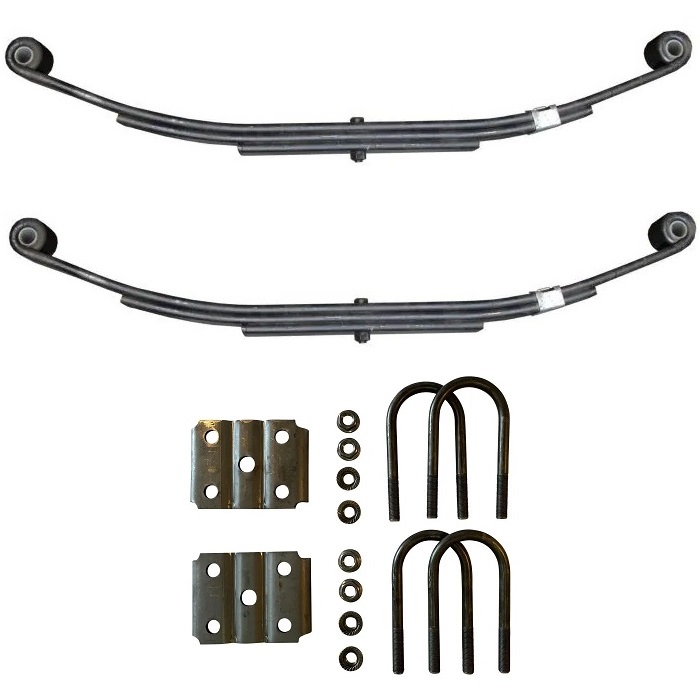

Kit Includes:

  • (2) PR3 Double Eye Leaf Springs (9150013)

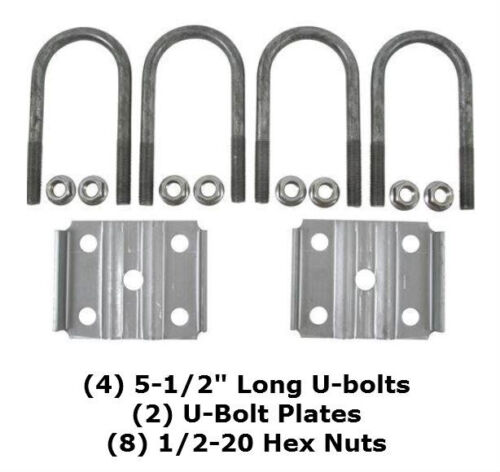

  • (4) 5-1/2" Long U-bolts (APUBR-1)
  • (2) U-Bolt Plates
  • (8) 1/2-20 Hex Nuts

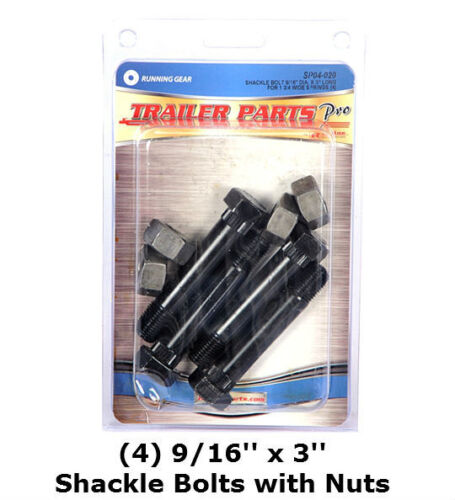

  • (4) 9/16'' x 3'' Shackle Bolts with Nuts (SP04-020)

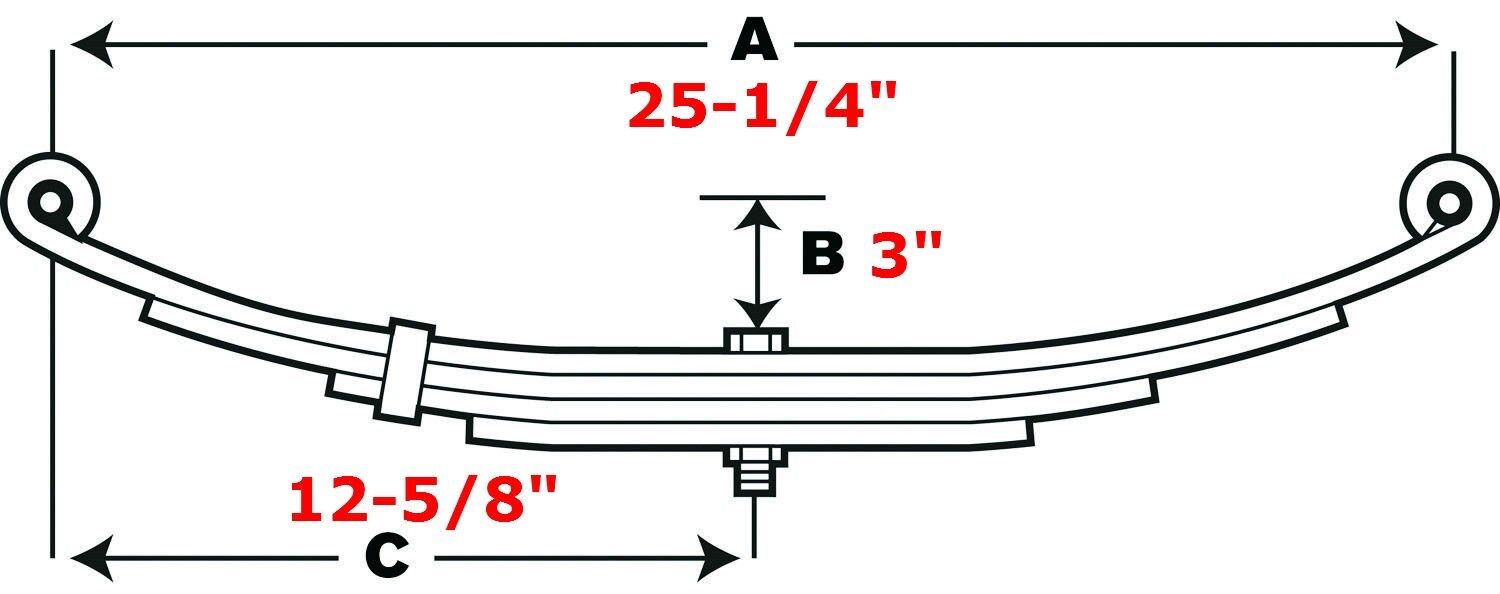

PR3 Leaf Spring Dimensions:

  • Number of Leaves: 3
  • Capacity: 1,750 lbs per spring
  • A (Length): 25-1/4"
  • B: 3
  • C: 12-5/8"
  • Width: 1-3/4"
  • Eye diameter with bushing (included): 9/16"
  • Eye diameter without bushing: 11/16"

To measure trailer leaf springs, first, you should remove the leaf spring from the trailer. Then, measure the length of the spring from the center of the front eyelet to the center of the rear eyelet. Additionally, measure the width of the spring, the thickness of the leaf material, and the number of leaves in the spring pack. These measurements are crucial for determining the appropriate replacement leaf spring for the trailer.
