Triton 02360-G 2200 Lb Galvanized Snowmobile Trailer Torsion Axle with Mounting Hardware, Gaskets, Chrome Acorn Lug Nuts

Brands:
Product Number: TRITON-02360-G-BUNDLE
Vendor Number: 02360-G-BUNDLE
$671.95 $559.99

Triton 02360-G 2200 Lb Galvanized Snowmobile Trailer Torsion Axle with Mounting Hardware, Gaskets, Chrome Acorn Lug Nuts

Product Number: TRITON-02360-G-BUNDLE
Vendor Number: 02360-G-BUNDLE
$671.95 $559.99 You Save $111.96 (16.7%)
Adding this item to your cart will qualify your order for US domestic

QTY:

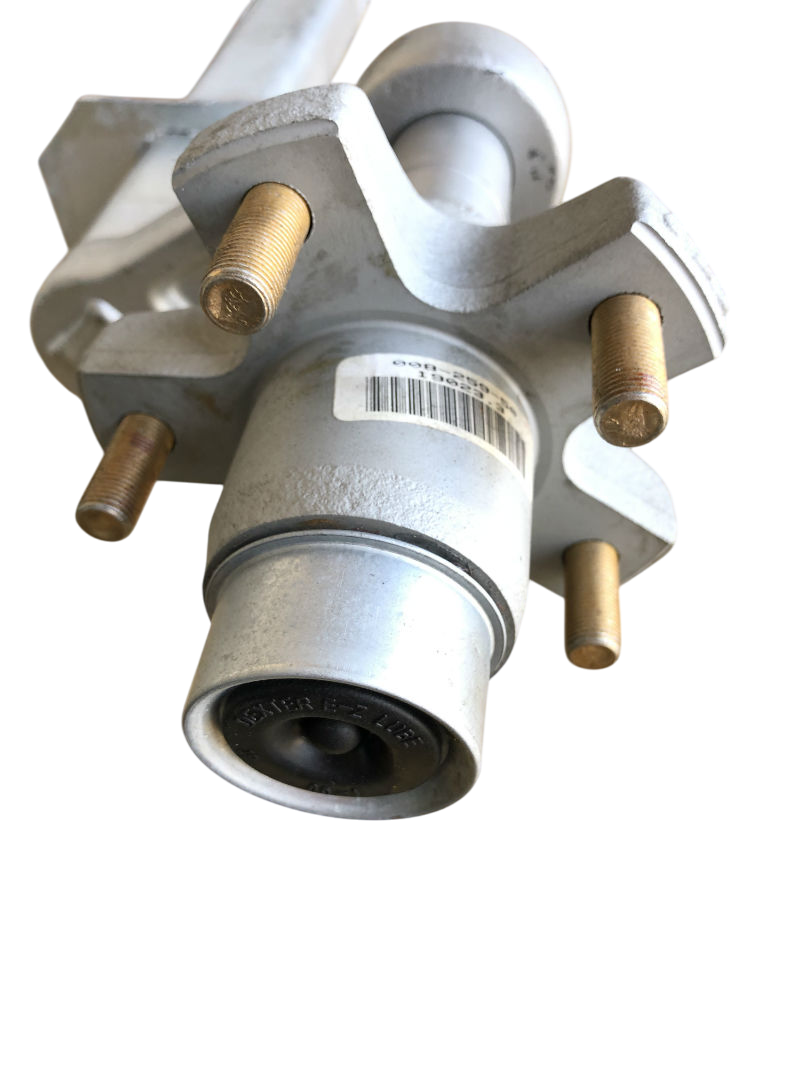

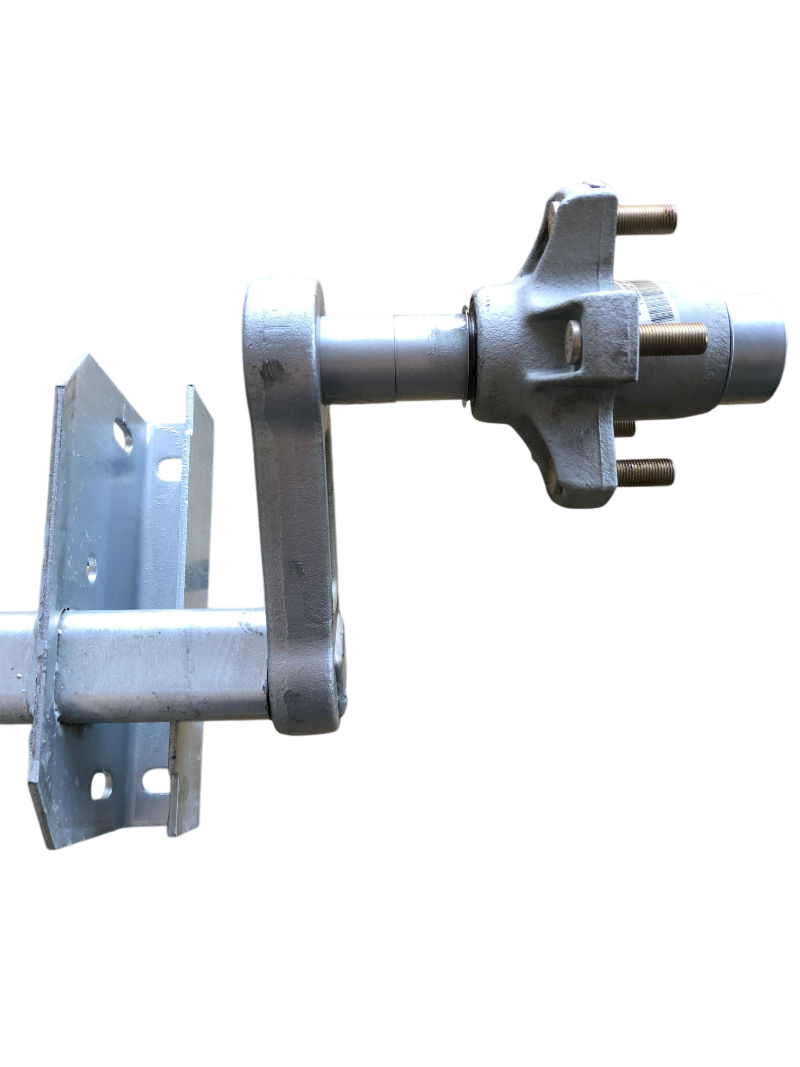

Upgrade your standard Triton 02360 snowmobile trailer torsion axle with the Triton 02360-G 2200 Lb Galvanized Torsion Axle. Featuring galvanized steel construction and zinc-plated wheel studs, this upgraded axle is designed for the ultimate corrosion and rust resistance.

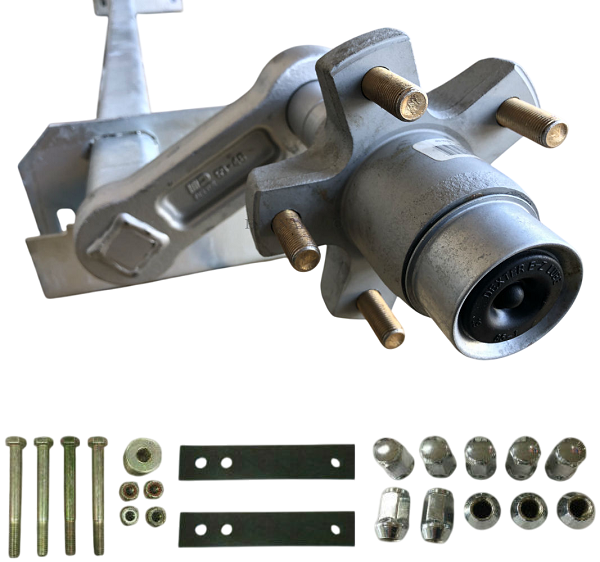

This product bundle includes the 2200 lb torsion axle, mounting hardware, mounting gaskets, and chrome acorn lug nuts.


The Triton Axle Mounting Hardware Kit includes the following parts

  • (4) 1/2-13 x 4 - 1/2 Zinc Plated Bolts
  • (4) 1/2-13 Zinc Plated Hex Loc Nuts
  • (8) 1/2 Zinc Plated Flat Washers

Parts in Bundle: 02360-G + 02685-H + 02604 x2 (12) + 12CLN x10

Enough hardware for mounting one torsion axle.


The Triton 02604 Axle Mount Gaskets are used for Triton Trailers with torsion axles. They go in between the steel axle mounting brackets and the aluminum frame of the trailer.

The Triton 07236 3/4 Inch Chrome Acorn Lug Nut Set comes in a set of 10. The lug nuts are crafted in the acorn bulge style with chrome finish and they measure 3/4 inch hexagonal. 1/2-20 Thread Pitch.

Axle Measuring Guide

Product Specifications

Hubface to Hubface: 71 inches

Outside of Bracket to Outside of Bracket: 54 inches

Center of Bracket to Center of Bracket: 52 inches

Overall Length of Mounting Brackets: 10 inches

The angle of articulation on the trailing arms of the axle is 32 degrees down

Check these to make sure you have the correct axle! Use diagram for reference

Axles are not returnable and all axle sales are final.



Torque Specifications:

Lug Nuts - 90 ft/lbs

Mounting Bolts - 55 ft/lbs



"Where can I go to get detailed information on my Triton trailer?"

The Triton website has details about all of its trailers. The customer instruction sheets on the website will give you numbers for common wear items and replacement parts (TritonTrailers.com Instruction Sheets).



Not sure exactly what year or model of Triton trailer you have?

Click here to view our Triton VIN Number Breakdown Chart

Click here for the Triton Trailer customer information sheets



Additional Products for Replacing an Axle

Axle mounting hardware can be purchased here

Axle gaskets can be purchased here

Standard 1/2" lug nuts can be purchased here

Chrome acorn style 1/2" lug nuts can be purchased here





Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
