HWH R1171 Hydraulic RV Jack Replacement Spring Kit - 2 Pack (Includes 4 Springs Total)

Brands:
Product Number: HWH-R1171 x2
Vendor Number: R1171 x2
$109.90 $72.99

HWH R1171 Hydraulic RV Jack Replacement Spring Kit - 2 Pack (Includes 4 Springs Total)

Brands:
Product Number: HWH-R1171 x2
Vendor Number: R1171 x2
$109.90 $72.99 You Save $36.91 (33.6%)
Adding this item to your cart will qualify your order for US domestic

QTY:

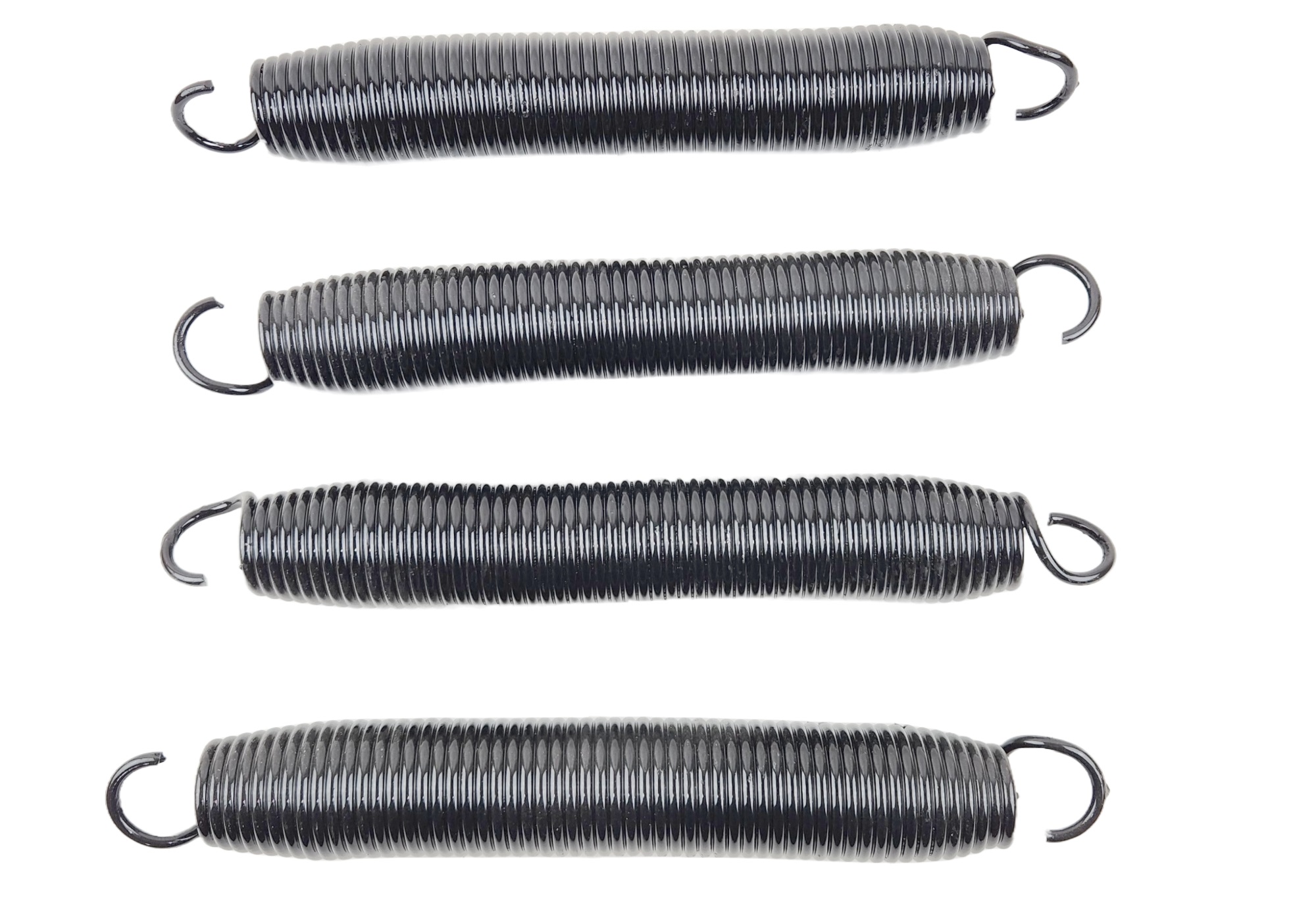

This listing is for TWO HWH R1171 Hydraulic RV Jack Replacement Spring Kits.

Each HWH R1171 Hydraulic RV Jack Replacement Spring Kit contains two springs, each measuring 1-5/8-inch X 12-1/4-inches (from end of hook to end of hook) or 10-1/16 inch (from base of hook to base of hook) and a steel pin with looped ends measuring 5-inches. It is used on HWH Hydraulic Motorhome 9,000 lbs. capacity jacks with 8.5-inch or 14-inch stroke.

NOTE: Counting coils and measuring the diameter of existing springs is only a guide. To make certain you order the correct springs, please find the AP# stamped on your HWH hydraulic jack. Provide this info and we can verify the proper jack springs for your RV.

Which HWH Spring Kit is the right one for replacing the springs on my HWH Hydraulic Jack?



Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

If a vehicle is parked or stored for an extended period of time and the jacks fail to retract completely, extend the jacks back down to the ground then retract the jacks again. If the jacks do not retract completely without assistance, replace the springs. There are two (2) springs included in each spring kit. The correct spring kit must be used.

HWH RV Jack Replacement Spring Size Chart

Additional Info

HWH Hydraulic Motorhome Jack Replacement Springs Cross Reference List

HWH Hydraulic RV Leveling Jacks come in two basic types: the straight jack and the kick down jack.  HWH straight jacks have large footpads to provide extra stability and a strong vertical structure.  However, the HWH straight jacks do not fit all RVs.  HWH kick down jacks provide extra flexibility, which is desired when the motorhome is moved while the system is engaged.

Excellent replacement springs
By: makhanbola
on 7/2/2018
Springs were great. Easy to replace once you worked on the first spring. Not sure why the number of coils were off by a few and not sure if it is a good idea to be on the low side of the number of coils or above when trying to make a close match. Would highly recommend!
