2-3/8" Round Double Eye 4 Leaf Spring Kit for 3,500 lb Trailer Axles
2-3/8" Round Double Eye 4 Leaf Spring Kit for 3,500 lb Trailer Axles
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
Replace worn or broken leaf springs on 3,500 lb round trailer axles with this double eye 4 leaf spring kit.

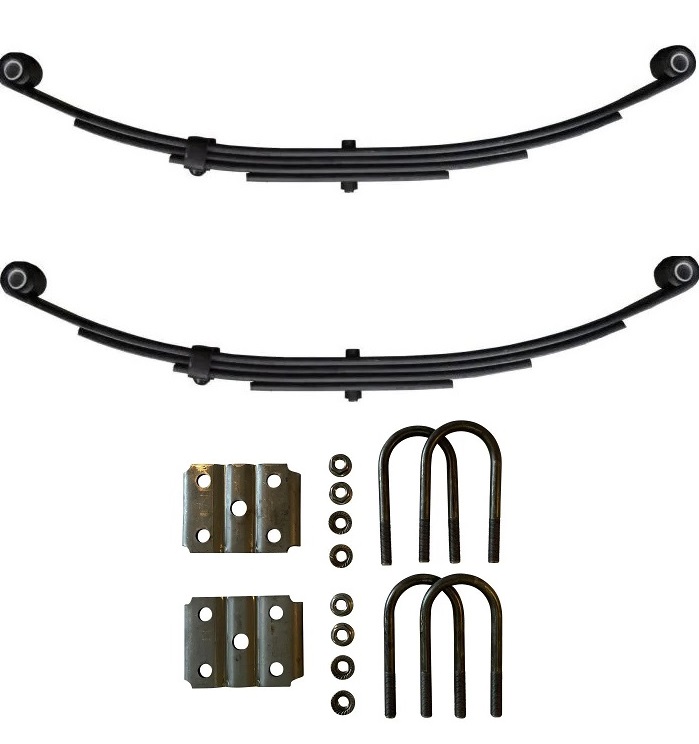

Kit Includes:
- (2) PR4B Double Eye Leaf Springs (9150014)
- (4) 5-1/2" Long U-bolts (APUBR-1)
- (2) U-Bolt Plates
- (8) 1/2-20 Hex Nuts
- (4) 9/16'' x 3'' Shackle Bolts with Nuts (SP04-020)
PR4B Leaf Spring Dimensions:
- Number of Leaves: 4
- Capacity: 1,750 lbs per spring
- A (Length): 25-1/4"
- B: 3
- C: 12-5/8"
- Width: 1-3/4"
- Eye diameter with bushing (included): 9/16"
- Eye diameter without bushing: 11/16"
To measure trailer leaf springs, first, you should remove the leaf spring from the trailer. Then, measure the length of the spring from the center of the front eyelet to the center of the rear eyelet. Additionally, measure the width of the spring, the thickness of the leaf material, and the number of leaves in the spring pack. These measurements are crucial for determining the appropriate replacement leaf spring for the trailer.
