Tandem Axle Hanger Kit - AP202-H202 - Contains H202 Hangers and AP202 Attaching Parts

Tandem Axle Hanger Kit - AP202-H202 - Contains H202 Hangers and AP202 Attaching Parts

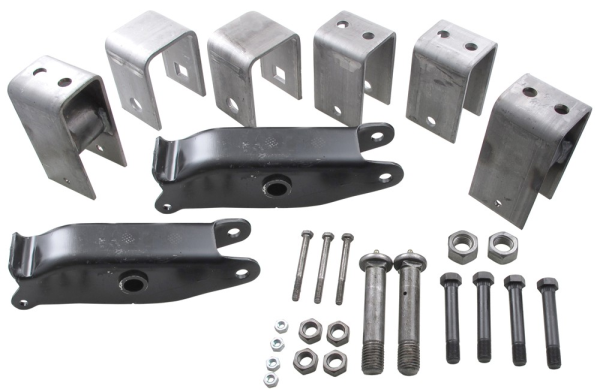

Leaf-spring mounting kit includes 4-1/2" tall front hangers, 3-1/2" tall center hangers, 5-1/4" tall rear hangers and necessary hardware. Equalizers are 10-1/8" long. Components for mounting axle to springs sold separately.

Product Features

• Attaches 4 leaf springs (sold separately) to your trailer frame
• Achieves 4-3/4", 5" or 5-1/4" clearance between trailer frame and axle, depending on axle size
• Includes:
  • (2) 4-1/2" Tall front hangers (28-1)
  • (2) 3-1/2" Tall center hangers (29-1)
  • (2) 5-1/4" Tall rear hangers (30-28)
  • (2) 10-1/8" Long swan-shaped equalizers (13-4)
    • 7/8" Diameter center hole for mounting to hanger
    • 9/16" Diameter side hole for attaching to spring
  • (4) 3-1/4" Long x 5/16" diameter spring keeper bolts (7-7)
  • (4) 5/16" Diameter locknuts (6-11)
  • (4) 3-1/2" Long x 9/16" diameter shackle bolts (91635B)
  • (4) 9/16" Diameter locknuts (916DLN)
  • (2) 4-1/2" Long x 7/8" diameter wet equalizer bolts (7-1-1)
  • (2) 7/8" Diameter locknut for 7-1-1 (6-111)
• Designed for use on trailers with tandem, 3,500-lb to 8,000-lb axles
• Does not include components for mounting axle to springs
