Tandem Axle Equalizer Kit - AP202 - 33 Inch Spacing - 2 Inch Slipper Spring AP Kit - Use with H2020 Right Hand

Tandem Axle Equalizer Kit - AP202 - 33 Inch Spacing - 2 Inch Slipper Spring AP Kit - Use with H2020 Right Hand

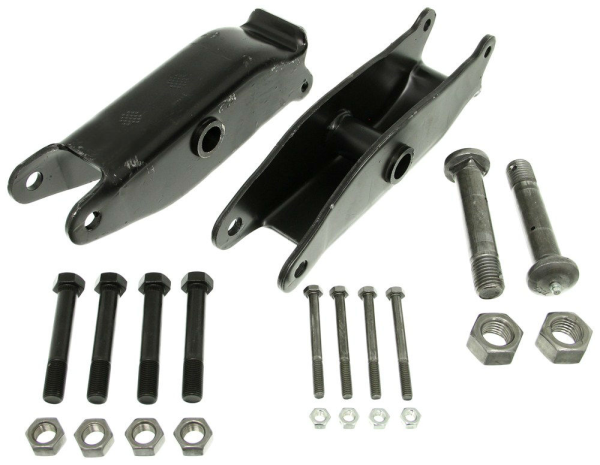

Kit includes 10-1/8" long equalizers and necessary bolts and shackles for suspending your leaf springs from your trailer frame. Use with H202 or H238 hangers for a complete tandem-axle kit.

Product Features

• Attaches 4 leaf springs (sold separately) to your trailer frame
  • Hangers sold separately
• Includes:
  • (2) 10-1/8" Long, swan-shaped equalizers (13-4)
    • 7/8" Diameter center hole for mounting to hanger
    • 9/16" Diameter side hole for attaching to spring
  • (4) 3-1/4" Long x 5/16" diameter spring keeper bolts (7-7)
  • (4) 5/16" Diameter locknuts (6-11)
  • (4) 3-1/2" Long x 9/16" diameter shackle bolts (91635B)
  • (4) 9/16" Diameter locknuts (916DLN)
  • (2) 4-1/2" Long x 7/8" diameter wet equalizer bolts (7-1-1)
  • (2) 7/8" Diameter locknuts for 7-1-1 (6-111)
• Use in conjunction with either H202 or H238 for complete kit
  • H202 and H238 contain front, center and rear hangers
• Designed for use on trailers with tandem, 3,500-lb to 8,000-lb axles
• Does not include components for mounting axle to springs
