Tandem Axle Hanger Kit - APT3 - Fits 1.75 Inch Double Eye Springs - 1.5 Inches Tall - Boxed

Tandem Axle Hanger Kit - APT3 - Fits 1.75 Inch Double Eye Springs - 1.5 Inches Tall - Boxed

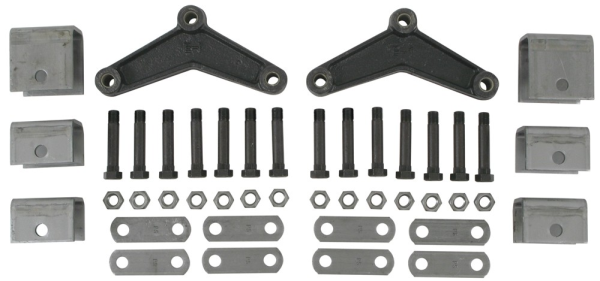

This APT3 Tandem Axle Leaf-spring mounting kit includes 1-1/2" tall front hangers, 2-1/2" tall center hangers, 1-1/2" tall rear hangers and necessary hardware. Equalizers are 7-3/4" long. Components for mounting axle to springs sold separately.

Product Specifications

• Attaches 4 leaf springs (sold separately) to your trailer frame
• Achieves 3-1/2" or 3-3/4" clearance between trailer frame and axle, depending on axle size
• Includes:
  • (4) 1-1/2" Tall front and rear hangers (115917)
  • (2) 2-1/2" Tall center hangers (115918)
  • (2) 7-3/4" Long curved equalizers (A2252CB)
    • 9/16" Diameter center and end holes
  • (8) 2-5/8" Long shackle straps (115052)
  • (14) 3" Long x 9/16" diameter shackle bolts (9163B)
  • (14) 9/16" Diameter locknuts (916DLN)
• Designed for use on trailers with tandem, 2,000-lb to 7,000-lb axles
• Does not include components for mounting axle to springs
