Tandem Axle Hanger Kit - APT1 - Fits 1-3/4" Double Eye Leaf Springs - Boxed

Tandem Axle Hanger Kit - APT1 - Fits 1-3/4" Double Eye Leaf Springs - Boxed

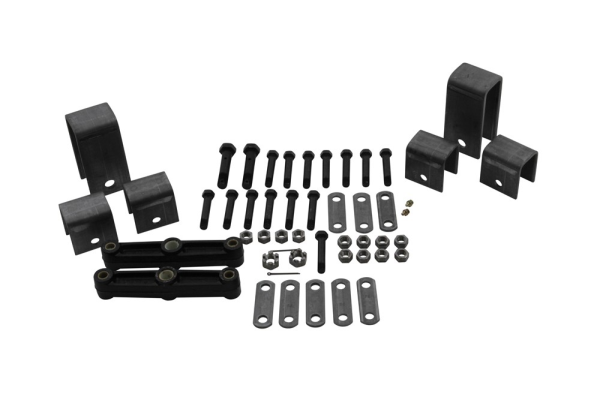

This APT1 Tandem Axle leaf-spring mounting kit includes 2-1/2" tall front hangers, 5-7/16" tall center hangers, 2-1/2" tall rear hangers and necessary hardware. Equalizers are 8" long. Components for mounting axle to springs sold separately.

Product Specifications

• Attaches 4 leaf springs (sold separately) to your trailer frame
• Achieves 4" or 4-1/2" clearance between trailer frame and axle, depending on axle size

• Includes:
  • (4) 2-1/2" Tall front and rear hangers (115918)
  • (2) 5-7/16" Tall center hangers with 3/4" bolt holes (115919)
  • (2) 8" Long straight equalizers (A2251B3)
    • 3/4" Diameter center hole for mounting to hanger
    • 9/16" Diameter end holes for attaching to springs
  • (8) 2-5/8" Long shackle straps (115052)
  • (12) 3" Long x 9/16" diameter shackle bolts (9163B)
  • (12) 9/16" Diameter locknuts (916DLN)
  • (2) 3-1/2" Long x 3/4" diameter wet equalizer bolts (126A1LN)
  • (2) 3/4" Diameter castle nuts (165093)
  • (2) 2-1/4" Long cotter pins (165649)
  • (2) 1/8" MPT grease zerks (1610)
• Designed for use on trailers with tandem, 2,000-lb to 7,000-lb axles
• Does not include components for mounting axle to springs
