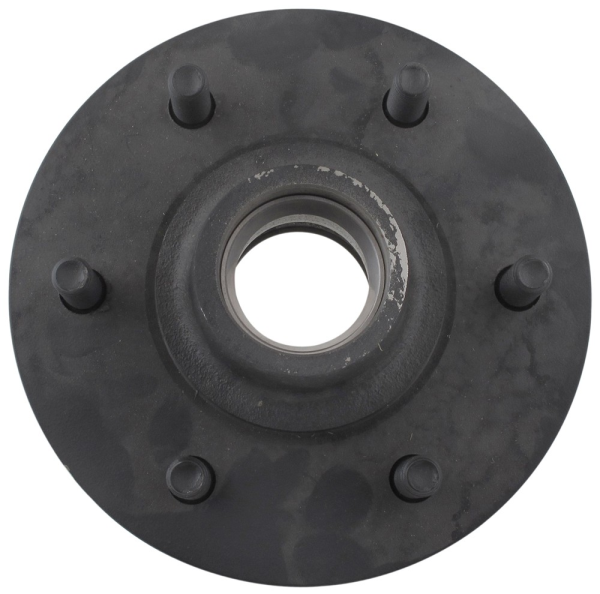

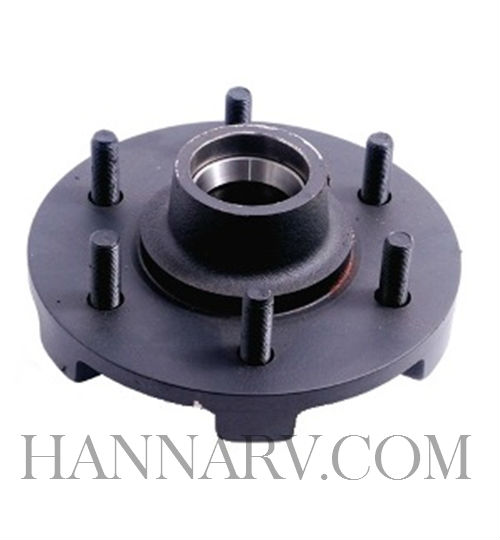

Dexter 84655 Hub Only - 6 on 5.5 - L68149/L44649 - For 3500 Lbs Axles - Fits #84 Spindle

Brands:
Product Number: RED-84655
Vendor Number: 84655
$92.95 $76.99

Dexter 84655 Hub Only - 6 on 5.5 - L68149/L44649 - For 3500 Lbs Axles - Fits #84 Spindle

Product Number: RED-84655
Vendor Number: 84655
$92.95 $76.99 You Save $15.96 (17.2%)
Adding this item to your cart will qualify your order for US domestic

QTY:

Dexter 84655 Hub Only - 6 on 5.5 - L68149/L44649 - For 3500 Lbs Axles - Fits #84 Spindle

There is no need to worry about the races as they are already pressed into the hub for you.  This hub is designed for use with a #84  spindle. Each hub has a capacity of 1,750 lbs.  The bearings, grease seal, grease cap, wheel nuts, spindle nut, and spindle washer sold separately. Kit with hardware is available.



Product Specifications

  • Dexter Hub only
  • L68149 Inner / L44649 Outer Bearing
  • Capacity of 1,750 lbs. per each
  • Fits #84 Spindle
  • Std. Grease or E-Z LUBE® Application
  • Used on Dexter and most 3,500 lb. axles with #84 spindle
  • 6 on 5.5" Bolt Pattern
  • 1x L44610 Outer Race (Already Pressed In) 1.98" OD
  • 1x L68111 Inner Race (Already Pressed In) 2.361 OD
  • Uses L68149(1.378" ID) and L44649(1.063" ID) bearings(sold separately)



To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.





Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
