Dexter 84655UC1 Complete Hub Assembly - 6 on 5.5 - L68149/L44649 - For 3500 Lbs Axles - Fits #84 Spindle
Dexter 84655UC1 Complete Hub Assembly - 6 on 5.5 - L68149/L44649 - For 3500 Lbs Axles - Fits #84 Spindle
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume. Thank you for your understanding.

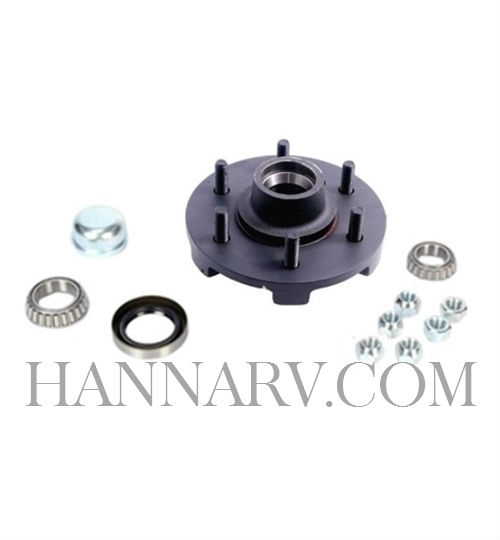

Dexter 84655UC1 Complete idler Hub Assembly - 6 on 5.5 - L68149/L44649 - For 3,500 Lbs Axles with fits #84 Spindle
Hub is designed for use on trailer idler axles. Fits 3,500-lb axles with #84 spindles. Inner bearing (L68149) and race, outer bearing (L44649) and race, grease seal, grease cap, wheel bolts, and lug nuts included. Spindle nut and spindle washer sold separately.
Product Features
- Trailer hub assembly fits idler axles
- Bearings, races, grease seal, grease cap, wheel bolts, and lug nuts are included
- Sturdy iron construction
Product Specifications
- Application: 3,500-lb trailer axles with #84 spindles
- Wheel size: 14-1/2" to 16-1/2"
- Bolt pattern: 6 on 5-1/2"
- Grease cap flange diameter: 1.986"
- Wheel bolt diameter: 1/2"
- Weight capacity: 1,750 lbs per hub
Bearing, Race, & Seal Information
- Bearings (included)
- Inner bearing: L68149 (1.378" inner diameter)
- Outer bearing: L44649 (1.063" inner diameter)
- Races (included)
- Inner race: L68111
- Outer race: L44610
- Grease seal (included): 58846
- Inner diameter: 1.719"
- Outer diameter: 2.565"

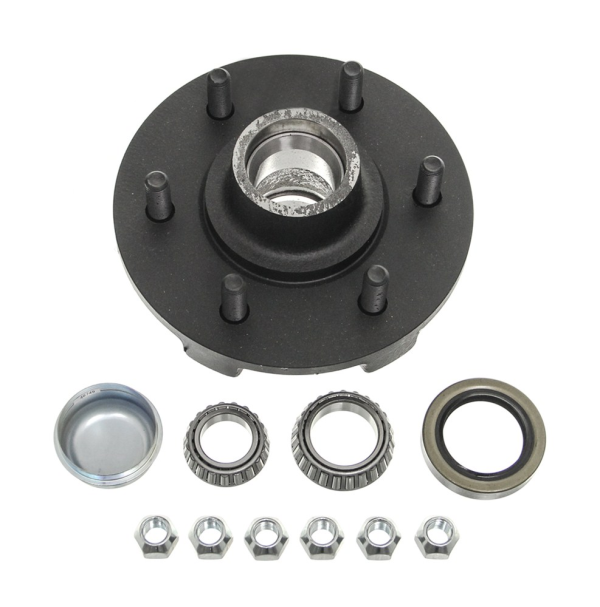

Items in Kit
• 1x L68149 Inner Bearing (1.378" ID)
• 1x L44649 Outer Bearing (1.063" ID)
• 1x L44610 Outer Race (Already Pressed In) 1.98" OD
• 1x L68111 Inner Race (Already Pressed In) 2.361" OD)
• 1x 10-19 Grease Seal (1.719" x 2.565")
• 1x 46749 Grease Cap (1.986" OD)
• 5x X1023R Coned Wheel Nuts
• 1x 6 on 5.5" Hub
• 1,750lb Capacity Per Hub
To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter
Redline Trailer Hubs & Drums
- 6 on 5-1/2 Inch
- For 3500 lbs Axles
- Hub
- 14-1/2 Inch Wheel
- 15 Inch Wheel
- 16 Inch Wheel
- 16-1/2 Inch Wheel
- Standard
- L44649
- L68149
- Redline
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
