Trailer Parts Pro H84550BX Boxed Pregreased Hub Assembly - 5 on 5 - L68149/L44649 Bearings - Fits 3500 Lbs Axles - #84 Spindle
Trailer Parts Pro H84550BX Boxed Pregreased Hub Assembly - 5 on 5 - L68149/L44649 Bearings - Fits 3500 Lbs Axles - #84 Spindle
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume. Thank you for your understanding.

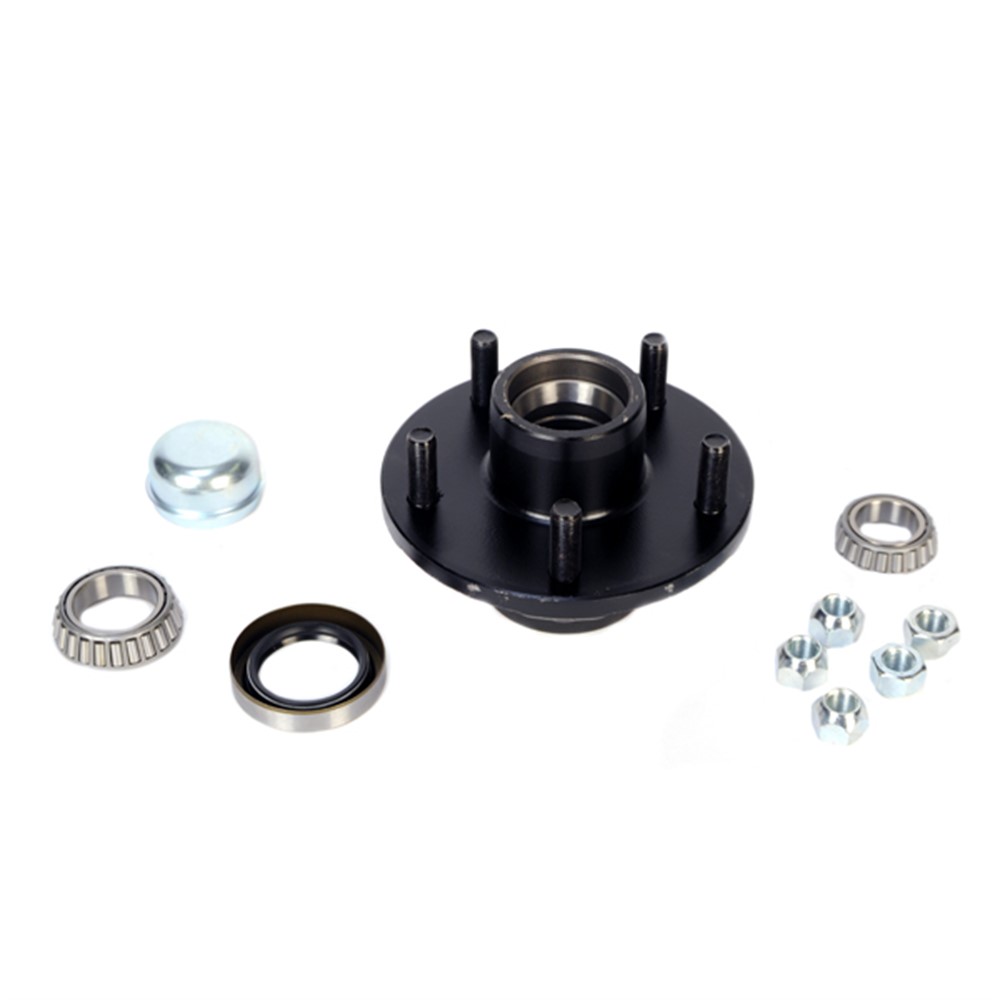

This is a ready to install Idler H84550BX Boxed Hub Assembly - 5 on 5 - L68149/L44649 Bearings - Fits Most 3,500 Lbs Axles with #84 Spindle made by Trailer Parts Pro
Trailer Parts Pro hub kits come with some of your main components like the inner and outer bearings. With Trailer Parts Pro kits there is no need to worry about the races as they are already pressed into the hub for you. You will also get the grease seal, grease cap, and wheel nuts for the hub. This hub is designed for use with a #84 spindle. Each Hub has a 1,750lb capacity. Spindle nut and spindle washer sold separately.
The kit comes with labor-saving Pre-Greased and Pre-Installed Bearings, Races, Seal, as well as Standard and Grease-Lube Dust caps and wheel nuts.
Reference#: 107833
Product Specifications
- L68149 Inner / L44649 Outer Bearings
- Capacity of 1,750 lbs. per each
- Fits #84 Spindle
- Std. Grease or E-Z LUBE® Application
- Used on Dexter and most 3,500 lb. axles
- For Idler applications only.
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
