Dexter 84555UC1-EZ Complete E-Z Lube Hub Assembly - 5 on 5.5 - L68149/L44649 - For 3500 Lbs Axles - Fits #84 Spindle

Brands:
Product Number: RED-84555UC1-EZ
Vendor Number: 84555UC1-EZ
$101.95 $84.99

Dexter 84555UC1-EZ Complete E-Z Lube Hub Assembly - 5 on 5.5 - L68149/L44649 - For 3500 Lbs Axles - Fits #84 Spindle

Product Number: RED-84555UC1-EZ
Vendor Number: 84555UC1-EZ
$101.95 $84.99 You Save $16.96 (16.6%)
Adding this item to your cart will qualify your order for US domestic

QTY:

Dexter 84555UC1-EZ Complete E-Z Lube Hub Assembly - 5 on 5.5 - L68149/L44649 - For 3500 Lbs Axles - Fits #84 Spindle

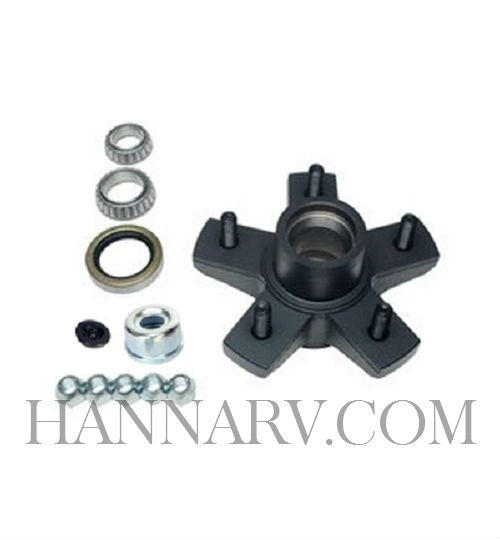

This Dexter Complete E-Z Lube Trailer Hub Assembly includes lug nuts, inner bearing (L68149) and race, outer bearing (L44649) and race, grease cap and grease seal. Fits 3,500-lb E-Z-Lube axles with #84 spindles.



Product Features

  • Trailer hub assembly fits idler axles
    • Bearings, races, seal, grease cap, wheel bolts, and lug nuts are included
  • E-Z Lube-compatible grease cap makes lubricating bearings fast and easy
    • Remove rubber plug to access zerk fitting on spindle - no need to disassemble hub
  • Sturdy iron construction
  • Hub and drum are made in the USA



Product Specifications

  • Application: 3,500-lb E-Z Lube trailer axles with #84 spindles
  • Wheel size: 13" to 15"
  • Bolt pattern: 5 on 5-1/2"
  • Grease cap flange diameter: 1.99"
  • Wheel bolt diameter: 1/2"
  • Weight capacity: 1,750 lbs



Bearing, Race, & Seal Information

  • Bearings (included)
    • Inner bearing: L68149 (1.378" inner diameter)
    • Outer bearing: L44649 (1.063" inner diameter)
  • Races (included)
    • Inner race: L68111
    • Outer race: L44610
  • Grease seal (included): 58846
    • Inner diameter: 1.719"
    • Outer diameter: 2.565"



E-Z Lube-Compatible Hub for Simple Lubrication

The grease cap on this hub is specially designed to work with your Dexter E-Z Lube axle to make lubricating bearings quick and easy. Just remove the plug on the grease cap, attach a grease gun to the zerk fitting on the end of the spindle, and inject the grease. It will flow easily to both inner and outer bearings. Not only does this make lubricating the bearings easy, but it also helps to prevent corrosion of the hub. This is because you can lubricate the bearings without the mess of taking apart the entire assembly.



Items in Kit

• 1 L68149 Inner Bearing (1.378" ID)
• 1 L44649 Outer Bearing (1.063" ID)
• 1 L44610 Outer Race (Already Pressed In) 1.98" OD
• 1 L68111 Inner Race (Already Pressed In) 2.361" OD
• 1 10-19 Grease Seal (1.719 x 2.565")
• 1 21-41-1 Grease Cap (1.986" OD)
• 1 85-1 Grease Cap Plug
• 5 X1023R Coned Wheel Nuts
• 1 5 on 5.5" Hub
• 1,750lb Capacity Per Hub


To determine the bolt circle on hubs or wheels with an odd number of bolt holes, measure from outside to center of the studs across the pattern(bolt patterns are always measured in inches). Example: If you were to number the studs 1, 2, 3, then you would measure from the outside of stud 1 to the center of stud 3.



Dexter Trailer Hubs and Drums

  • 5 on 5-1/2 Inch
  • For 3500 lbs Axles
  • Hub
  • 13 Inch Wheel
  • 14 Inch Wheel
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • EZ Lube
  • 1/2 Inch Stud
  • L44649
  • L68149
  • Dexter





Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
