Dexter 8-258-50 GAL-DEX Hub Only - 5 on 4.5 - 6.5 Inch Hub Flange - L44649 Bearings - Fits BTR 1-1/16 Inch Spindle - Dexter 2200 Lbs Axles

Brands:
Product Number: RED-8-258-50
Vendor Number: 8-258-50
$68.95 $56.99

Dexter 8-258-50 GAL-DEX Hub Only - 5 on 4.5 - 6.5 Inch Hub Flange - L44649 Bearings - Fits BTR 1-1/16 Inch Spindle - Dexter 2200 Lbs Axles

Product Number: RED-8-258-50
Vendor Number: 8-258-50
$68.95 $56.99 You Save $11.96 (17.3%)
Adding this item to your cart will qualify your order for US domestic

QTY:

Dexter 8-258-50 GAL-DEX Hub Only - 5 on 4.5 - 6.5 Inch Hub Flange - L44649 Bearings - Fits BTR 1-1/16 Inch Spindle - Dexter 2200 Lbs Axles

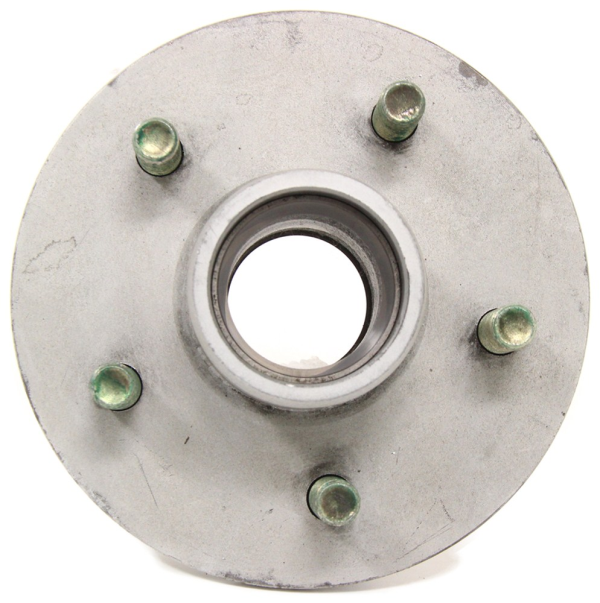

This Dexter Trailer Hub has a Galvanized finish that is ideal for marine use. Trailer hub fits 2,000-lb and 2,200-lb idler axles. Inner and outer races included. Bearings, grease seal, grease cap, and lug nuts sold separately. 6-1/2" Hub flange.

Product Features

  • Marine-grade trailer hub fits idler axles
    • Includes inner and outer races
    • Requires bearings, grease seal, grease cap, and lug nuts (sold separately)
  • Zinc plating has a 500-hour salt spray rating
    • Ideal for use on a boat or snowmobile trailer
    • Durable enough for saltwater applications

Product Specs

  • Application: 2,000-lb and 2,200-lb axles
  • Hub flange diameter: 6-1/2"
    • Works with 13" - 15" wheels
  • Bolt pattern: 5 on 4-1/2"
  • Wheel studs: 1/2" diameter x 2" long
  • Weight capacity: 1,100 lbs



Bearing, Race, and Seal Information

  • Bearings (sold separately)
    • Inner bearing: L44643 or L44649
    • Outer bearing: L44643 or L44649
  • Races (included)
    • Inner race: L44610
    • Outer race: L44610
  • Grease seal (sold separately): 34823 or 10-60



Corrosion Resistance for Marine Use

This trailer hub has a zinc coating that resists corrosion, making it ideal for use on your boat or snowmobile trailer. All GAL-DEX hubs undergo a test in which they are sprayed with a 5-percent salt solution to determine corrosion resistance over time. These products are able to withstand 500 hours of constant exposure to the saltwater mist. This 500-hour salt spray rating indicates that a product is not only durable enough to last in freshwater environments, but it can also be used on trailers that come into contact with saltwater



Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
