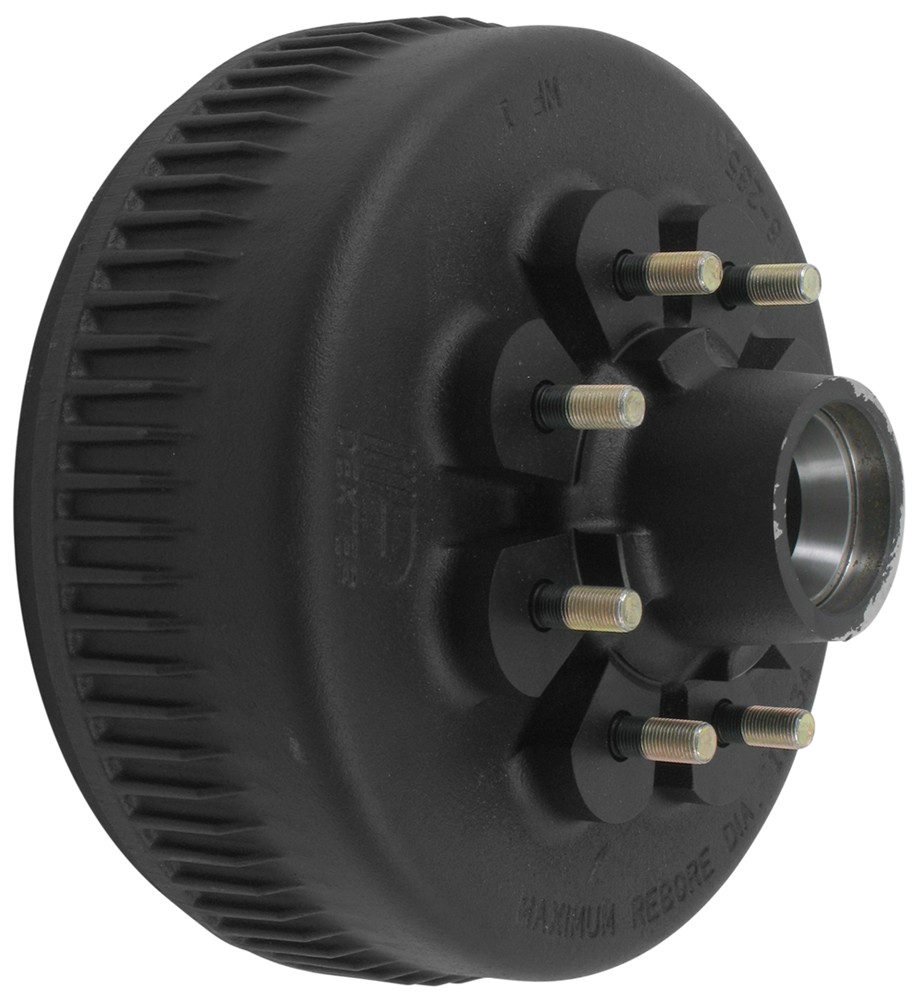

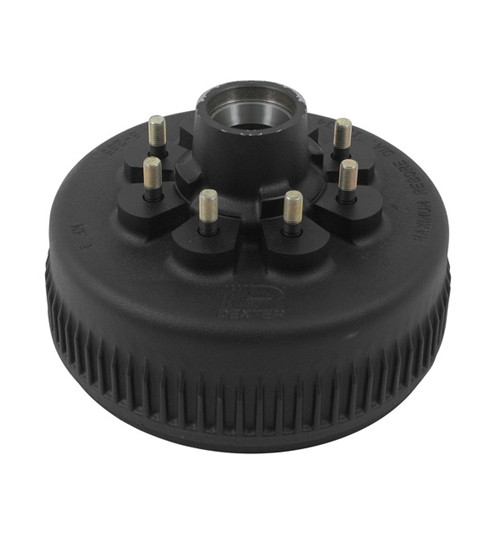

Dexter 8-285-11 E-Z Lube Hub and Drum Only - 4.75 Inch Pilot - Fits Dexter 8000 Lbs Axles - 9/16 Inch Studs

Brands:
Product Number: RED-8-285-11
Vendor Number: 8-285-11
$473.95 $394.99

Dexter 8-285-11 E-Z Lube Hub and Drum Only - 4.75 Inch Pilot - Fits Dexter 8000 Lbs Axles - 9/16 Inch Studs

Product Number: RED-8-285-11
Vendor Number: 8-285-11
$473.95 $394.99 You Save $78.96 (16.7%)
Adding this item to your cart will qualify your order for US domestic

QTY:

Install this hub-and-drum on your trailer. Hub fits 8,000-lb E-Z Lube axles. Inner and outer races included. Inner bearing (25580), outer bearing (02475), grease seal, EZ-Lube grease cap, and lug nuts sold separately. This hub is designed for use with a #42 spindle.



Product Features

  • Trailer hub-and-drum provides surface area for brake shoes to grip when brake is activated
    • Compatible with electric and hydraulic drum brakes
  • E-Z Lube grease cap (sold separately) makes lubricating bearings fast and easy
    • Remove rubber plug to access zerk fitting on spindle - no need to disassemble hub
  • Sturdy iron construction
  • Inner and outer races included
    • Bearings, grease seal, E-Z Lube grease cap, and lug nuts sold separately
  • Made in the USA
  • E-Z LUBE®



Product Specifications

  • Application: 8,000-lb E-Z Lube trailer axles with #42 spindles
  • Drum dimensions: 12-1/4" diameter x 3-3/8" wide
    • Works with 12-1/4" brake assembly
  • Bolt pattern: 8 on 6-1/2"
  • Wheel stud diameter: 9/16"
  • Pilot hole diameter: 4-3/4" (New Style)
  • Weight capacity: 4,000 lbs



Bearing, Race, & Seal Information

  • Bearings (sold separately)
    • Inner bearing: 25580 (1.750" inner diameter)
    • Outer bearing: 02475 (1.25" inner diameter)
  • Races (included)
    • Inner race: 25520
    • Outer race: 02420
  • Grease seal (sold separately): 10-36
    • Inner diameter: 2.250"
    • Outer diameter: 3.37


Items Included

• 1 25520 Inner Race (Already Pressed In) 3.265" OD
• 1 02420 Outer Race (Already Pressed In) 2.688" OD
• 1 8 on 6.5" Hub & Drum
• 4,000lb Capacity Per Hub
• Use with a 12-1/4" x 3-3/8" brake



Items Sold Separately

• 1 25580 Inner Bearing (1.75" ID)
• 1 02475 Outer Bearing (1.25" ID)
• 1 10-36 Grease Seal (2.25" x 3.376")
• 1 21-43-1 Grease Cap (2.72" OD)
• 1 85-1 Grease Cap Plug
• 8 6-53 Coned 9/16" Wheel Nuts


To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.

008-285-11 Dexter 12-1/4" Hub and Drum with Races for 8K Axle - 8 on 6-1/2 - EZ Lube



Dexter Trailer Hubs and Drums - 8-285-11

  • 8 on 6-1/2 Inch
  • For 8000 lbs Axles
  • Hub with Integrated Drum
  • 16 Inch Wheel
  • 16-1/2 Inch Wheel
  • 17 Inch Wheel
  • 17-1/2 Inch Wheel
  • EZ Lube
  • 9/16 Inch Stud
  • 02475
  • 25580
  • Dexter





Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
