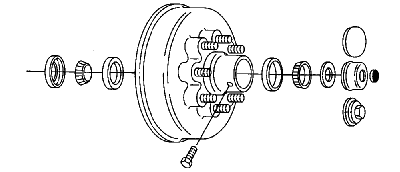

Dexter 8-393-5UC3-B Complete Oil Bath Hub and Drum Assembly - 8 on 6.5 - 5/8 Cone Nuts - 4-Bolt Flange

Brands:
Product Number: RED-8-393-5UC3-B
Vendor Number: 8-393-5UC3-B
$0.00 $0.00

Dexter 8-393-5UC3-B Complete Oil Bath Hub and Drum Assembly - 8 on 6.5 - 5/8 Cone Nuts - 4-Bolt Flange

Product Number: RED-8-393-5UC3-B
Vendor Number: 8-393-5UC3-B
$0.00 $0.00
Add $35.00 worth of items to your cart to qualify for

Out of Stock

Dexter 8-393-5UC3-B Complete Oil Bath Hub and Drum Assembly - 8 on 6.5 - 5/8 Cone Nuts - 4-Bolt Flange



Product Features & Specs

  • 25580 Inner / 02475 Outer Bearings
  • Fits Dexter 7,200 lb. Axles
  • Oil Bath
  • Hub comes with 5/8” studs
  • Drum Size: 12 1/4” x 2 1/2”



In February 2000, the 7,200 lb. axle was upgraded from a 9-bolt to a 4-bolt brake flange. Be sure to verify flange type before making your selection, hub/drums will not interchange



Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
