Dexter 42865UC1 Complete Painted Hub Assembly - 8 on 6.5 - 25580/14125A - For 5.2K-7K Lbs Axles - 2.25 Inch Inner Seal

Brands:
Product Number: RED-42865UC1
Vendor Number: 42865UC1
$125.95 $104.99

Dexter 42865UC1 Complete Painted Hub Assembly - 8 on 6.5 - 25580/14125A - For 5.2K-7K Lbs Axles - 2.25 Inch Inner Seal

Product Number: RED-42865UC1
Vendor Number: 42865UC1
$125.95 $104.99 You Save $20.96 (16.6%)
Adding this item to your cart will qualify your order for US domestic

QTY:

Dexter 42865UC1 Complete Painted Hub Assembly - 8 on 6.5 - 25580/14125A - For 5.2K-7K Lbs Axles - 2.25 Inch Inner Seal

Features:

  • Application: 5,200-lb - 7,000-lb Dexter axles with spindles that require a 2-1/4" ID grease seal
  • Bolt Pattern: 8 on 6-1/2"
  • Includes bearings, races, seal, grease cap, wheel bolts and lug nuts
    • Stud diameter: 1/2"
    • Bearings:
      • Inner bearing: 25580
      • Outer bearing: 14125A
    • Grease seal: 2.25" inner diameter
    • Grease cap: 2.72" outer diameter
  • Capacity: 3,500 lbs

Dexter Hub W/ 8 on 6.5" Bolt Pattern 6,000lb & 7,000lb Axles

Dexter hub kits come with some of your main components like the inner and outer bearings.  There is no need to worry about the races as they are already pressed into the hub for you.  You will also get the grease seal, grease cap, and wheel nuts for the hub.  This hub is designed for use with a #42 spindle. Each hub has a capacity of 3,500lbs.  Spindle nut and spindle washer sold separately.

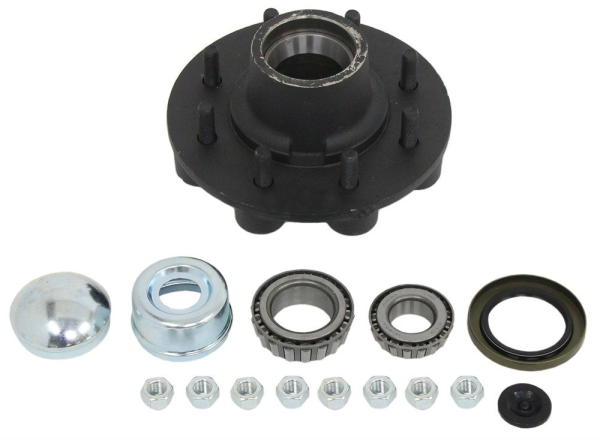

Items in Kit:

• 1 25580 Inner Bearing (1.75" ID)
• 1
14125A Outer Bearing (1.25" ID)
• 1 25520 Outer Race (Already Pressed In) 3.265" OD
• 1 14276 Inner Race (Already Pressed In) 2.717" OD
• 1 10-36 Grease Seal (2.25" x 3.376")
• 1 21-39 Grease Cap (2.72" OD)
• 8 X1023R Coned Wheel Nuts
• 1 8 on 6.5" Hub
• 3,500lb Capacity Per Hub


To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.

Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.


Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)


Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)


Bolt Pattern Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
