Dexter 8-257-5UC3 Hub and Drum Assembly for 2,000-2,200 lb Axles - 5 on 4-1/2 Bolt Pattern

Brands:
Product Number: RED-8-257-5UC3
Vendor Number: 8-257-5UC3
$149.95 $124.99

Dexter 8-257-5UC3 Hub and Drum Assembly for 2,000-2,200 lb Axles - 5 on 4-1/2 Bolt Pattern

Product Number: RED-8-257-5UC3
Vendor Number: 8-257-5UC3
$149.95 $124.99 You Save $24.96 (16.6%)
Adding this item to your cart will qualify your order for US domestic

QTY:

This Dexter 8-257-5UC3 hub & drum assembly is designed for use with a BTR spindle, and can be used with a BT8 spindle using L44643 bearings (sold separately). Each hub has a capacity of 1,000lbs using the L44643 bearings and 1,100lbs using the L44649 bearings. The spindle nut and spindle washer are sold separately.

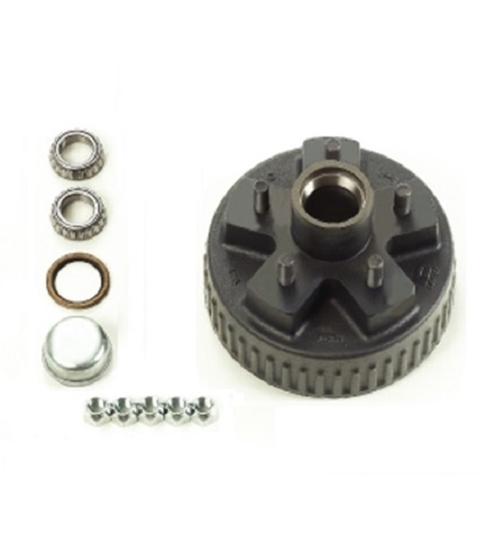

Items in Kit

• 5 on 4.5" Bolt pattern Hub & Drum
• 2 L44610 Outer Race (Already Pressed In) 1.98" OD
• 2 L44649 Bearings (1.063" ID)
• 1 10-60 Grease seal (1.5" x 1.987")
• 46749 Grease cap (1.986" OD)
• 5 X1023R Wheel nuts
• Use with a 7" x 1-1/4" brake



Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
