Dexter 8-257-5 Hub and Drum Only for 2,000-2,200 lb Axles - 5 on 4-1/2 Bolt Pattern
Dexter 8-257-5 Hub and Drum Only for 2,000-2,200 lb Axles - 5 on 4-1/2 Bolt Pattern
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume. Thank you for your understanding.

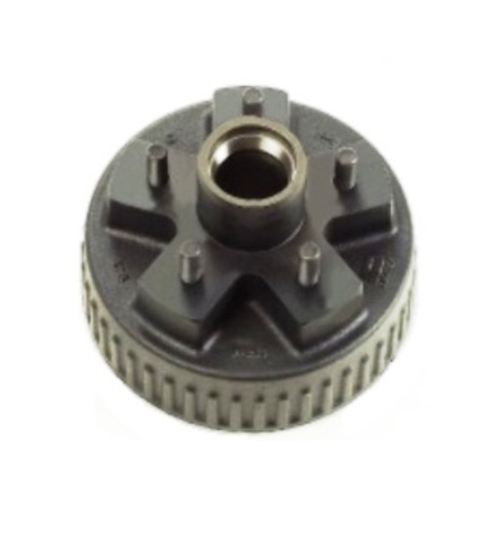

This Dexter 8-257-5 hub & drum is designed for use with a 1-1/16" or 1" spindle. Each hub has a 1,100lb capacity. The bearings, grease seal, grease cap, wheel nuts, spindle nut, and spindle washer are sold separately. Kit with hardware is available.
Items in Kit
• 1 L44610 Outer Race (Already Pressed In) 1.98" OD
• 1 L44610 Inner Race (Already Pressed In) 1.98" OD
• 1 5 on 4.5" Hub & Drum
• 1,100lb Capacity Per Hub
• Works with L44649 (1.063" ID) or L44643 (1" ID) bearings and spindles (sold separately)
• Use with a 7" x 1-1/4" brake
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
