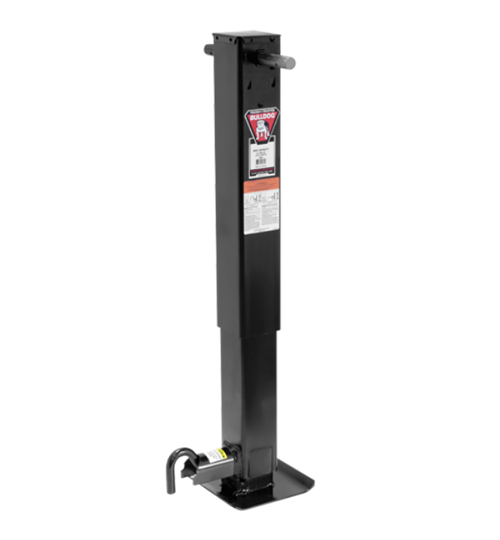

Bulldog 182817 Sidewind Dropleg Jack with Front Pin Spring Loaded/No Handle 12000 Pound Capacity

Bulldog Sidewind Drop Leg Square Jack w/ Footplate - 12 1/2" Lift - 12,000lb Capacity Side Pin

Product Features:

• 4" square tubing, 7-gauge superior alloy steel
• Painted outer tube, and drop leg
• Drop leg option with 5 positioning holes
• Easy-access gear box with grease fitting for routine maintenance
• 12.5" screw travel, 13.5" of additional adjustment with drop leg
• Sidewind models - 1:1.5 gear ratio
• Spring loaded return drop leg

Product Specifications:

• Static Load: 12,000 pounds
• Lift Capacity: 10,000 pounds
• Lift: 12.5 inches
• Dropleg Travel: 13.5 inches
• Retracted Height: 27.5 inches
• Type of Wind: Side
• Handle Included: No
• Pin Position: Right
• Outer Tube: 4.00 inches
• Spring Loaded: Yes



(A) Retracted=27.4"
(B) Extended=53.6"
(C) Dropleg=13.5"
