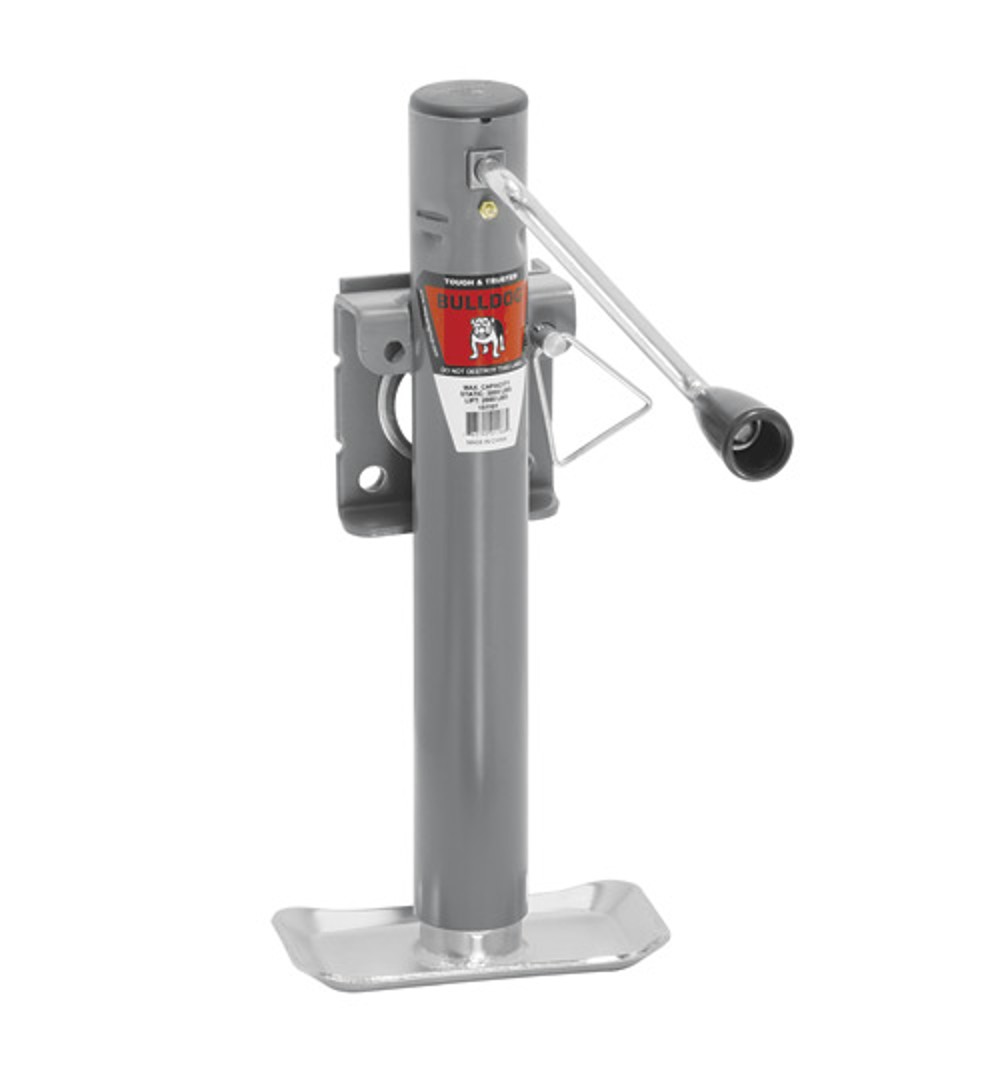

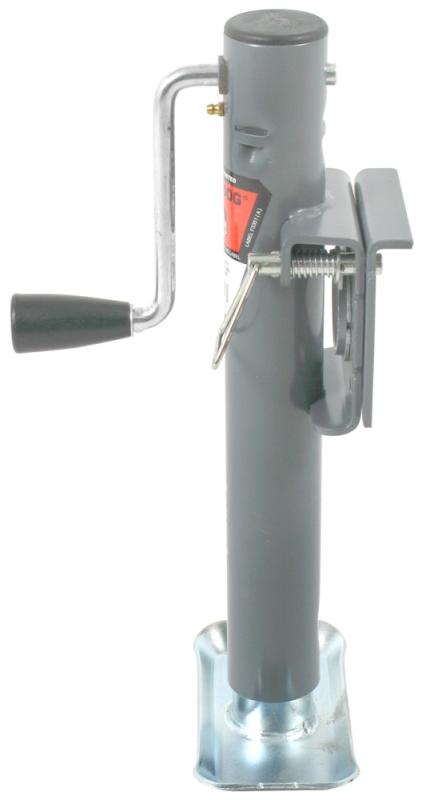

Bulldog 151101 Weld-On Sidewind Swivel Tongue Jack - 2000 Lbs - 10 Inch Lift - 11 Inch Bracket Height

Bulldog 151101 Weld-On Sidewind Swivel Tongue Jack - 2000 Lbs - 10 Inch Lift - 11 Inch Bracket Height

Features:

• Dependable jack is recognized as industry standard for agricultural and commercial applications
  • ASABE compliant
• Convenient, spring-loaded, plunger-pin swivel feature
  • Swing up to stow parallel to tongue for travel
  • Move back into upright position for use
• Precision-fitted parts provide exceptional stability and reliability
• Sidewind handle has smooth, ergonomic design for easy cranking
• Outer tube is gray-paint finished
• Inner tube is zinc plated
• Weld-on, L-bend mounting bracket comes assembled
• Footplate included

Specs:

• Bracket height:
  • 11" Retracted
  • 21" Extended
• Lift: 10"
• Clearance: 4" from mounting bracket to top of jack
• Inner tube diameter: 2"
• Outer tube diameter: 2-1/4"
• Handle radius: 6-5/8"
• Plunger pin diameter: 1/2"
• Lift capacity: 2,000 lbs
• Limited 5-year warranty

(A) Retracted=11"
(B) Extended=21"
(C) Clearance=6.4"
