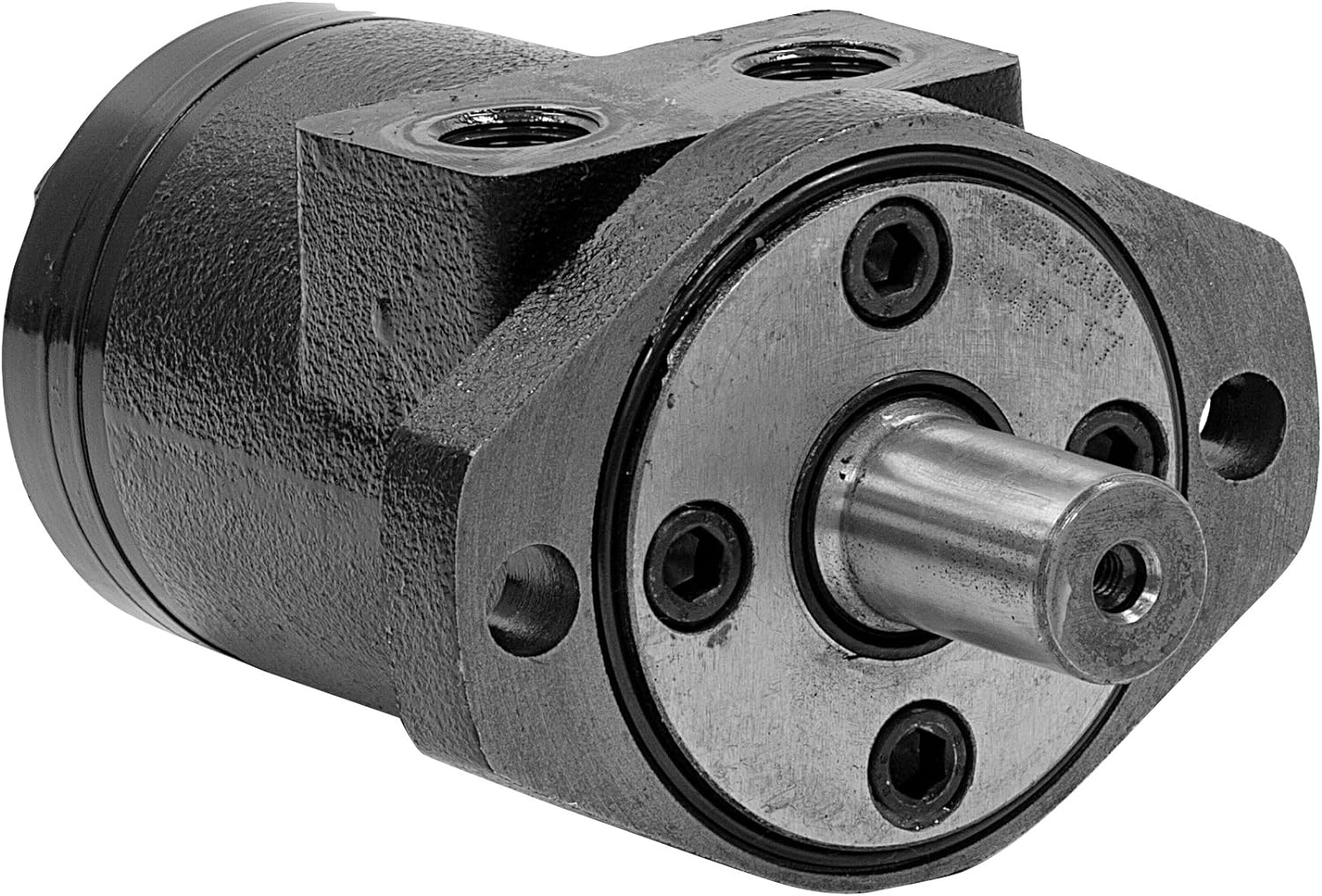

Buyers CM084P HydraStar Hydraulic Direct Drive Auger Motor (4 Bolt 22.6 CIPR) - Replaces CHAR-LYNN 101-1008, WESTERN 95277

Brands:
Product Number: BUY-CM084P
Vendor Number: BUYERS CM084P
$405.95 $263.99

Buyers CM084P HydraStar Hydraulic Direct Drive Auger Motor (4 Bolt 22.6 CIPR) - Replaces CHAR-LYNN 101-1008, WESTERN 95277

Product Number: BUY-CM084P
Vendor Number: BUYERS CM084P
$405.95 $263.99 You Save $141.96 (35.0%)
Adding this item to your cart will qualify your order for US domestic

QTY:

This item is a HydraStar Hydraulic Direct Drive Auger Motor for use with your choice of salt spreader vehicles.

HydraStar® motors are economical, efficient, small, compact, and powerful. They are designed for medium-duty applications. These motors have the industry proven spool valve design combined with state-of-the-art gerotors. In addition, they have a wide variety of mounting flanges with a 1 inch diameter straight shaft, woodruff keyway, and 1/2" NPT port which all provide design flexibility. The direction of shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor and equipment can be driven direct which helps eliminate costly mechanical components.

Product Features and Specs

  • Displace cm3/r [in3/r]: 370 [22.6]
  • Max Speed (RPM) @ Continuous Flow: 152
  • FLOW LPM [GPM]
  • Continuous: 57 [15]
  • Intermittent: 76 [20]
  • Torque LPM [lb-in]
  • Continuous: 407 [3604]
  • Intermittent: 484 [4283]
  • Min. Starting Torque Nm [lb-in]
  • @ Cont. Pressure: 330 [2920]
  • @ Int. Pressure: 408 [3610]
  • Difference between inlet and outlet port
  • Continuous: 86 [1250]
  • Intermittent: 103 [1500]


Cross over list (part numbers that this part replaces):

  • Charlynn #: 101-1008 with 22.6 Displace
  • TRW Ross #: MG-24-13-10 with 24.0 Displace
  • Prince Adan #: ADM4004RP with 24.0 Displace
  • Orbmark #: HD132W4FSWP with 23.8 Displace
  • White #: RS-24-0101 with 24.0 Displace
