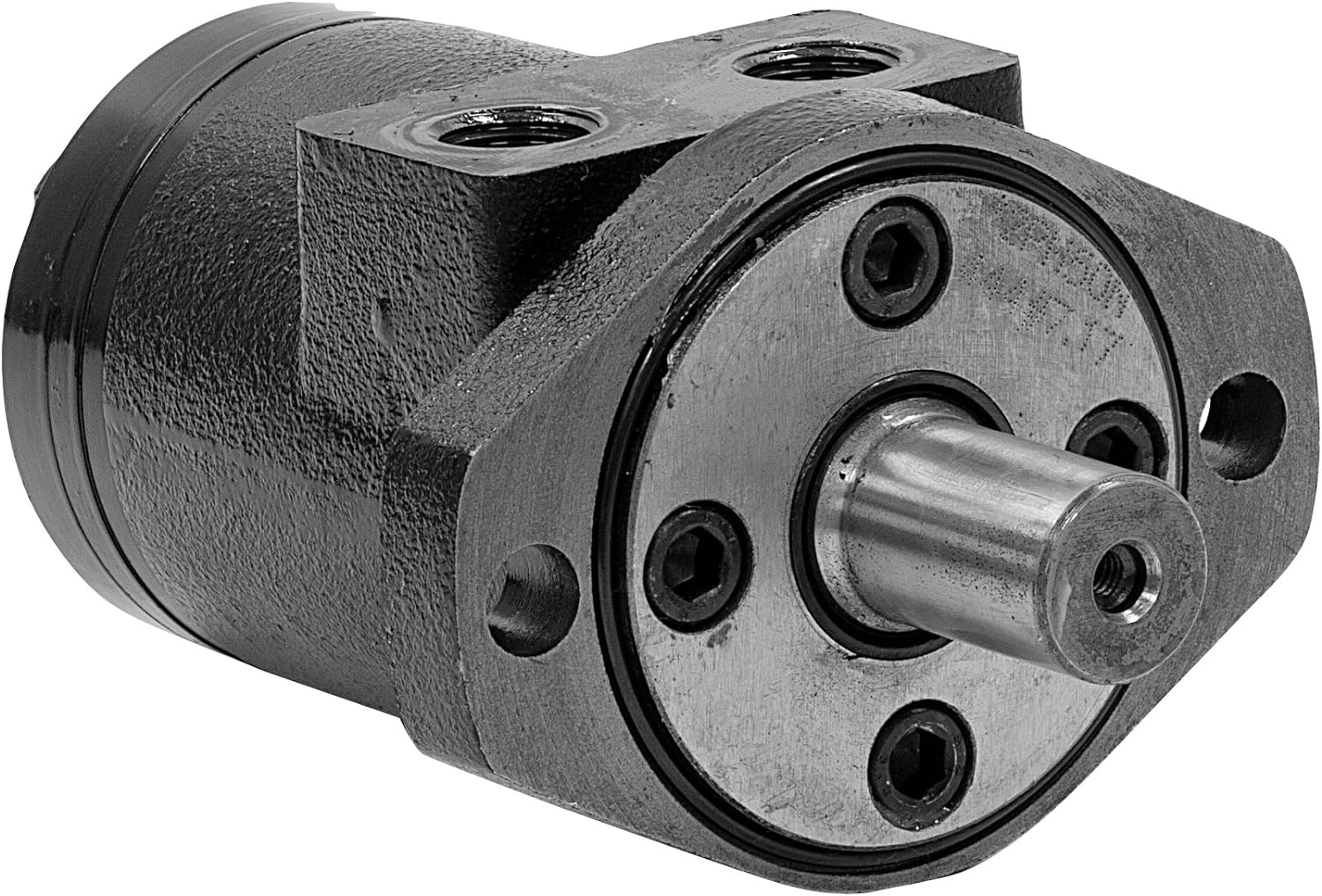

Buyers CM012P HydraStar Hydraulic Salt Spreader Gear Box Auger Motor (2 Bolt 4.5 CIPR) - Replaces C-101-1026
Buyers CM012P HydraStar Hydraulic Salt Spreader Gear Box Auger Motor (2 Bolt 4.5 CIPR) - Replaces C-101-1026
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume. Thank you for your understanding.
HydraStar® motors are economical, efficient, small, compact, and powerful. They are designed for medium-duty applications. These motors have the industry proven spool valve design combined with state-of-the-art gerotors. In addition, they have a wide variety of mounting flanges with a 1 inch diameter straight shaft, woodruff keyway, and 1/2" NPT port which all provide design flexibility. The direction of shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor and equipment can be driven direct which helps eliminate costly mechanical components.
Product Features and Specs
- Displace cm3/r [in3/r]: 74 [4.5]
- Max Speed (RPM) @ Continuous Flow: 760
- FLOW LPM [GPM]
- Continuous: 57 [15]
- Intermittent: 68 [18]
- Torque LPM [lb-in]
- Continuous: 118 [1044]
- Intermittent: 158 [1401]
- Min. Starting Torque Nm [lb-in]
- @ Continuous Pressure: 95 [840]
- @ Intermittent Pressure: 130 [1150]
- Difference between inlet and outlet port
- Continuous: 124 [1800]
- Intermittent: 165 [2400]
Cross over list (part numbers that this part replaces):
- Charlynn #: 101-1026 with 4.5 Displace
- TRW Ross #: MG-05-12-10 with 5.0 Displace
- Prince Adan #: ADM752RP with 4.67 Displace
- Orbmark #: HD106W2FSWP with 4.5 Displace
- White #: RS-04-0301 with 4.5 Displace
