Dutton-Lainson 14830 DL2500AB 2 Speed Trailer Hand Winch With Hand Brake - 2500 Lbs Capacity - 17.3:1 / 5.4:1 Gear Ratios
Dutton-Lainson 14830 DL2500AB 2 Speed Trailer Hand Winch With Hand Brake - 2500 Lbs Capacity - 17.3:1 / 5.4:1 Gear Ratios
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

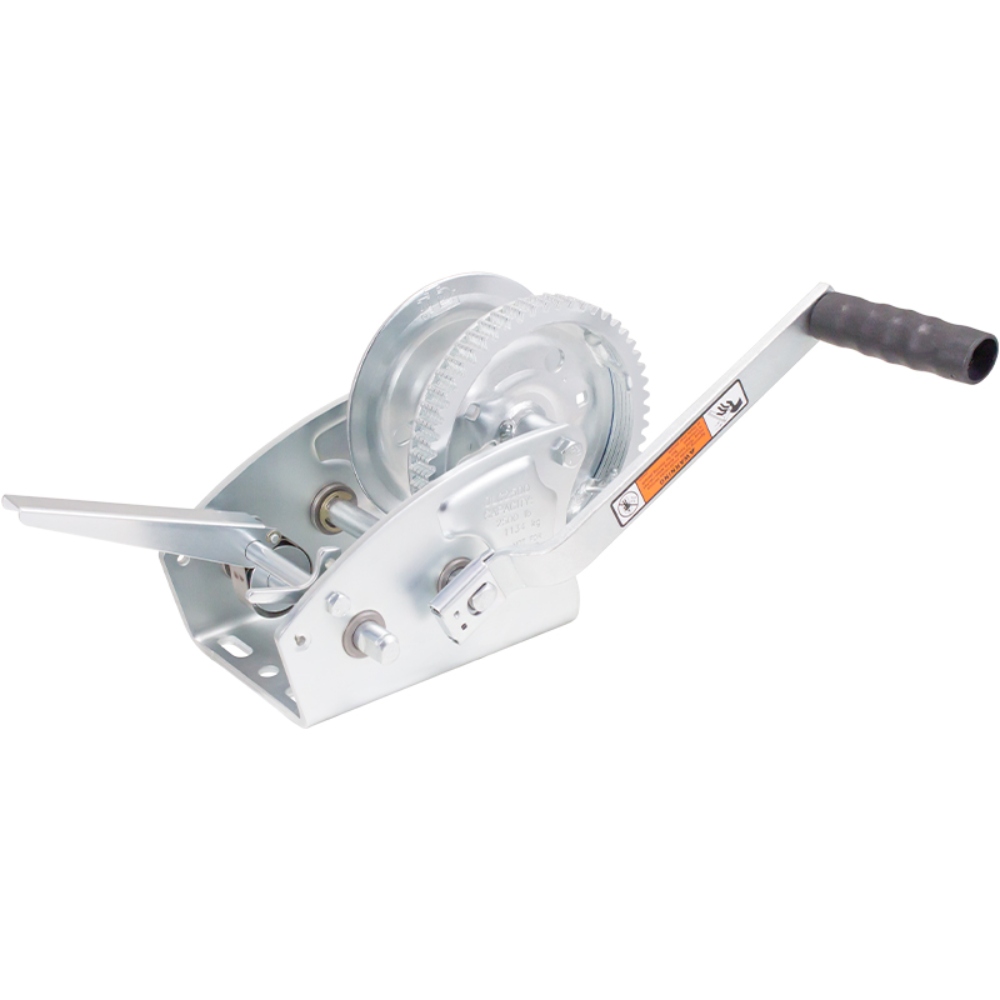

VideosDutton-Lainson 14830 DLV2500AB 2 Speed Trailer Hand Winch With Hand Brake has a 2500 lbs capacity and 17.3 to 1 and a 5.4 to 1 gear ratio. The reels are reinforced arc-welded and the embossed reinforced bases have high carbon steel gears. The gear ratios are load matched making for much easier cranking and the gear system has hunting teeth for a more even wear and longer product life span. Quick-attach handle allows easy change from high speed to low gear, for heavier loads. High carbor stee heat-treated gears, permanently lubricated bearings, reversible ratchet, ergonomic handle grip.
- Dutton-Lainson® 2-speed hand/manual/pulling/ratchet winch for horizontal pulling applications
- 2,500 lb. capacity
- 9-1/2" Quick-Attach handle with ergonomic handle grip
- Freewheel operation for easy line removal
- Zinc plated TUFFPLATE® finish for additional rust resistance and longer life
- Reversible ratchet allows cranking of cable or strap onto winch drum in either direction
- Dual drive shaft system allows Quick-Attach handle to easily change from high speed to low gear cranking from one side, requiring less effort for heavier loads
- Hand brake for manually-controlled load release
- Includes clamp kit to install cable onto winch drum
- Made in the U.S.A.
- NOTE: This winch is built for horizontal pulling applications. For vertical lifting applications, order a brake winch, a worm gear winch, or a StrongArm® electric winch without a clutch lever.
More Details:
Dutton-Lainson Company pulling winches are best suited for boat trailer and other horizontal pulling applications which require the freewheeling features of ratchet type winches. Features include:
- Laminated, high carbon steel gears for longer life
- All gears in models DLx1200 through DL3500B are heat treated for increased strength
- Permanently lubricated bearings on drive shafts are maintenance-free
- Heavy duty steel handles with ergonomic molded grips
- Drive shaft gears are copper brazed for durability
- Rigid, welded reel construction for added strength
- Load matched gear ratios for easier cranking
- All plated parts are zinc plated TUFFPLATE® finish
- Slotted mounting holes for easy installation
- Heavy gauge embossed and reinforced steel bases for extra strength
- Ratcheting handle is available for models DLC1800 and DLx1900 when cranking space is limited
- Winches freewheel when the ratchet pawl is disengaged
- All models except DL3500B are equipped with slots in reel for easy installation of optional strap (strap sold separately)
- Available in powder coated matte black or zinc plated TUFFPLATE® finish
D-L pulling winches are not recommended for lifting applications. For lifting, use a D-L brake or worm gear winch. D-L winches are not to be used as hoists for lifting, supporting, or transporting people, or for loads over areas where people could be present.
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
| Model | Rated Capacity (2) | Drum Hub Dia. | Gear Ratio | Handle Length | Max Mech. Adv. | Reversible Ratchet | 2-Speed Operation | Cable (3) | Strap |
|---|---|---|---|---|---|---|---|---|---|
| DL400 | 400 lb/181 kg | 5/8" | 1:1 | 7" | 18 | 1/8" x 87' | 19' | ||
| DL600A | 600 lb/272 kg | 5/8" | 3.2:1 | 7" | 57 | 5/32" x 61' | 16' | ||
| DL900A | 900 lb/408 kg | 5/8" | 3.2:1 | 7" | 55 | 3/16" x 40' | 16' | ||
| DL1100A | 1100 lb/499 kg | 7/8" | 3.7:1 | 7" | 49 | 3/16" x 79' | 29' | ||
| DL1300A | 1300 lb/590 kg | 7/8" | 4.4:1 | 7" | 56 | 7/32" x 56' | 31' | ||
| DL1402A | 1400 lb/635 kg | 7/8" | 4.4:1 | 9-1/2" | 74 | X | 1/4" x 40' | 31' | |
| DL1602A | 1600 lb/726 kg | 1-1/8" | 5.4:1 | 9-1/2" | 75 | X | 1/4" x 58' | 45' | |
| DL1602ADD | 1600 lb/726 kg | 1-1/8" | 5.4:1 / 1:1 | 9-1/2" | 75 | X | X | 1/4" x 58' | 45' |
| DL1802A | 1800 lb/817 kg | 1-1/8" | 5.4:1 | 9-1/2" | 73 | X | 9/32" x 58' | 38' | |
| DL2102A | 2100 lb/952 kg | 1-1/8" | 5.4:1 | 11" | 84 | X | 9/32" x 58' | 38' | |
| DL1800A | 1800 lb/817 kg | 1-1/8" | 10.3:1 / 5.4:1 | 9-1/2" | 139 | X | X | 9/32" x 58' | 38' |
| DL2000A | 2000 lb/907 kg | 1-1/8" | 12.4:1 / 5.4:1 | 9-1/2" | 168 | X | X | 9/32" x 58' | 38' |
| DL2500A | 2500 lb/1134 kg | 1-1/8" | 17.3:1 / 5.4:1 | 9-1/2" | 229 | X | X | 5/16" x 47' | 38' |
| DL3200A | 3200 lb/1452 kg | 1-1/8" | 17.3:1 / 5.4:1 | 9-1/2" | 219 | X | X | 3/8" x 30' | 25' |
| DL3500B (1) | 3500 lb/1589 kg | 1-5/16" | 12:1 / 6:1 | 9-1/2" | 135 | X | X | 3/8" x 37' | - |
