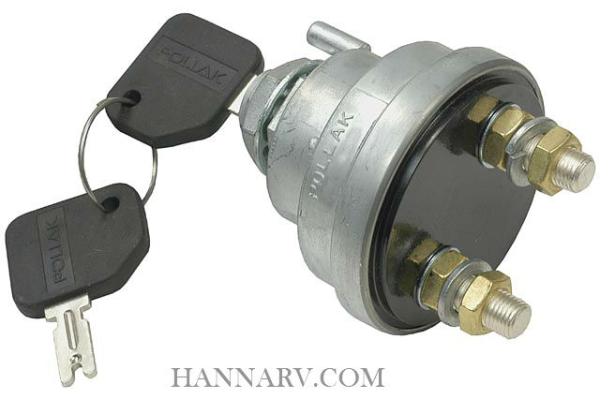

Pollak 51-916 Master Disconnect Switch

The Pollak 51-916 Master Disconnect Switch is designed for 12 VDC vehicles (Truck, Automotive, Marine, RV) to disconnect all circuitry to reduce possibility of theft and accidental electrical fires.

Product Features and Specifications:

• Lever Operated- 6-36 Volt- 180 Amps continuous capacity 1000 amps in Rush S.P.S.T. (Off-On)
• Two stud terminals for battery circuit only. Does not disconnect alternator or generator field circuit.
• On vehicles equipped with alternators, engineer must be shut off to avoid potential damage to alternator diodes.
• Incorporates heavy duty contacts.
• One piece die-cast housing sealed with O-rings at base and mounting stem to keep out dust and moisture.
• Large die-cast, lever for ease of operation.
• Two 3/8 inch copper alloy stud terminals with hex nuts and lock washers.
• Overall length: 4 3/8 inches
• Diameter: 2 5/8 inches approx.
• Conforms to requirements of U.L. #558
• Mounting stem: 3/4 inch diameter, 1/2 inch long, with two hexnuts and lock washer. (Note: Mounting nuts not to exceed 12 ft. Ibs. torque).
• Designed for protection against battery drain, electrical fires, tampering and theft.
• Fits panels up to 1/4 inch thick.
