TUFF Wireless 4 Button Remote Kit for Dump Trailers w/ KTI Hydraulic Pump Systems
TUFF Wireless 4 Button Remote Kit for Dump Trailers w/ KTI Hydraulic Pump Systems
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
This 2.4GHZ 4 button system comes with a KTI style connector. It will only screw into KTI plugs. You must hook up ground wire that is provided! This is designed to work with 4 button hydraulic pumps. If you want to run a winch and hydraulic pump you will need the 4 button gen 2 system with loose wires.
With touchpad controls also located on the receiver you can easily control hoist with or without the wireless controller. This unit comes pre programmed for power up and power down pumps. You can also program the DOWN or OUT button to be gravity down. Programming depends on how your pump is wired.

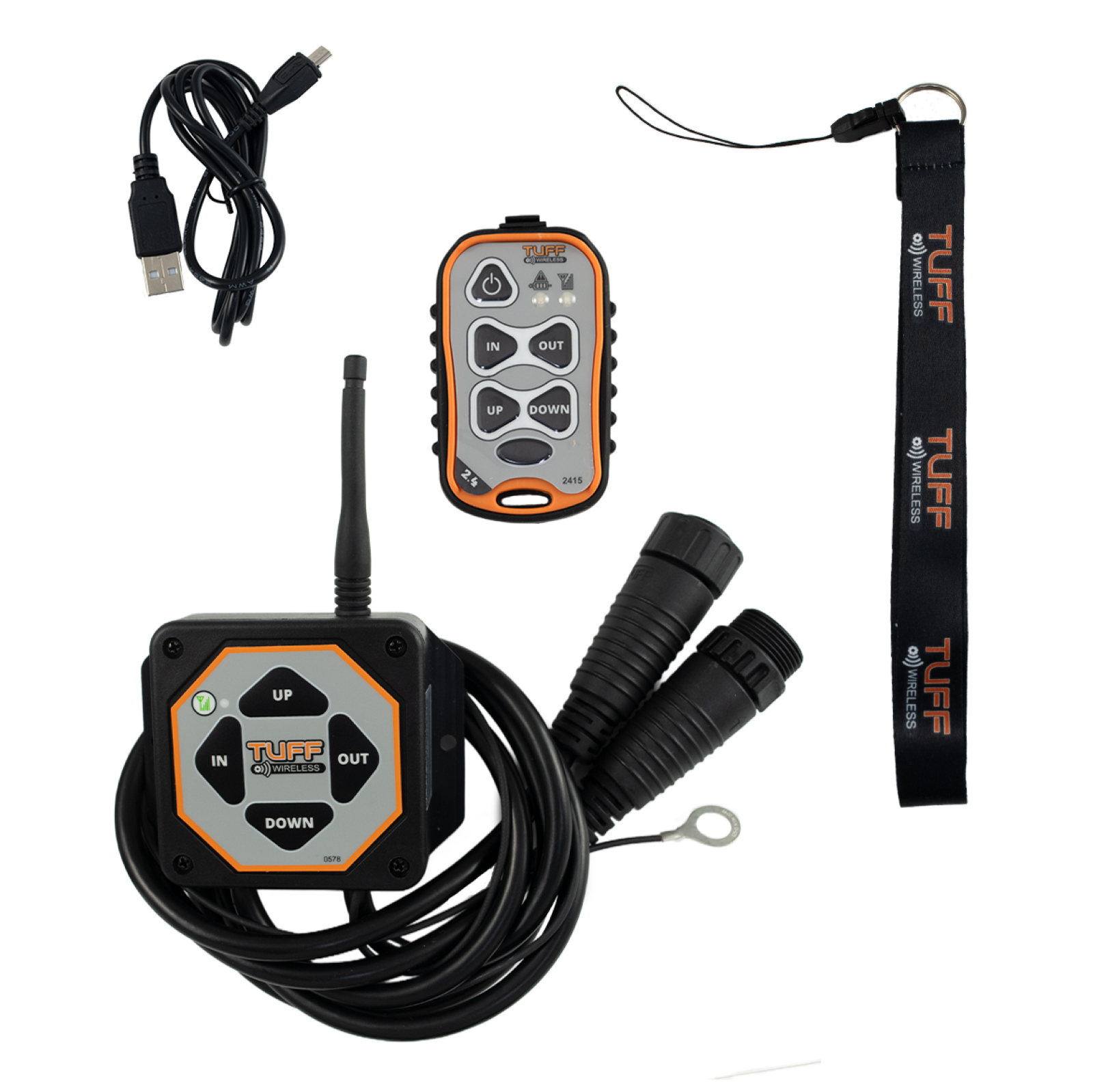

Kit Includes:
- 3A5776A transmitter
- 3A577FA receiver

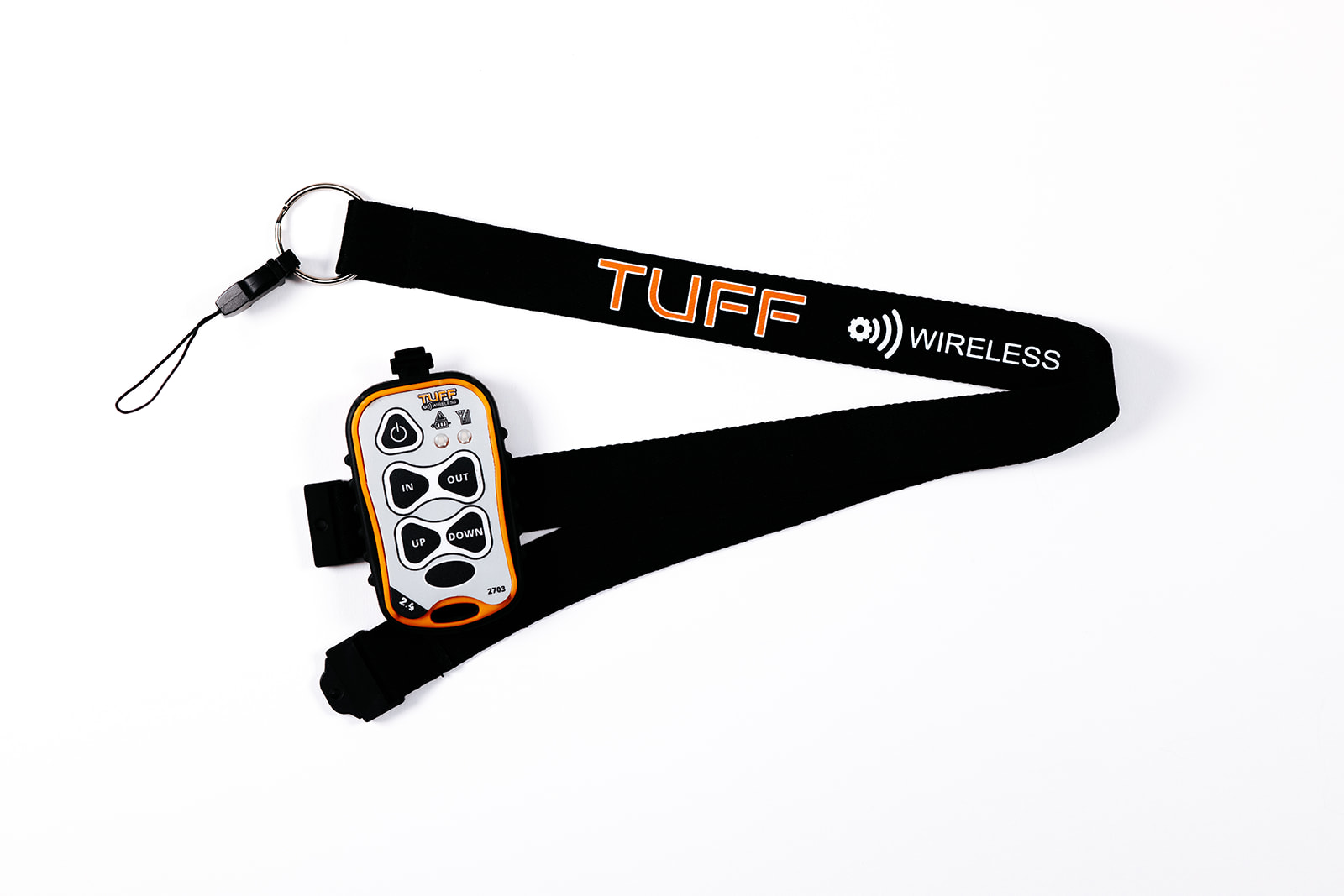

- Lanyard
- Charge cord
PROGRAMMING PROCEDURES
Programming to be in GRAVITY OUT/ mode (PUMP output does not turn on with the OUT output) follow this procedure:
1. Make sure receiver is off and transmitter is on
2. Press and hold IN and OUT buttons for five seconds until the red LED starts to blink. Release the buttons.
3. Apply power to the receiver
4. Press the OUT button for Gravity Down or press the IN button for Power out. The receiver’s green LED will turn on solid for three seconds when HOIST programming is complete.
Programming it to be in GRAVITY DOWN/ mode (PUMP output does not turn on with DOWN output) follow this procedure:
1. Make sure receiver is off and transmitter is on
2. Press and hold UP and DOWN buttons for five seconds until the red LED starts to blink. Release the buttons.
3. Apply power to the receiver
4. Press the DOWN button for Gravity Down or press the UP button for Power Down. The receiver’s green LED will turn on solid for three seconds when HOIST programming is complete.
