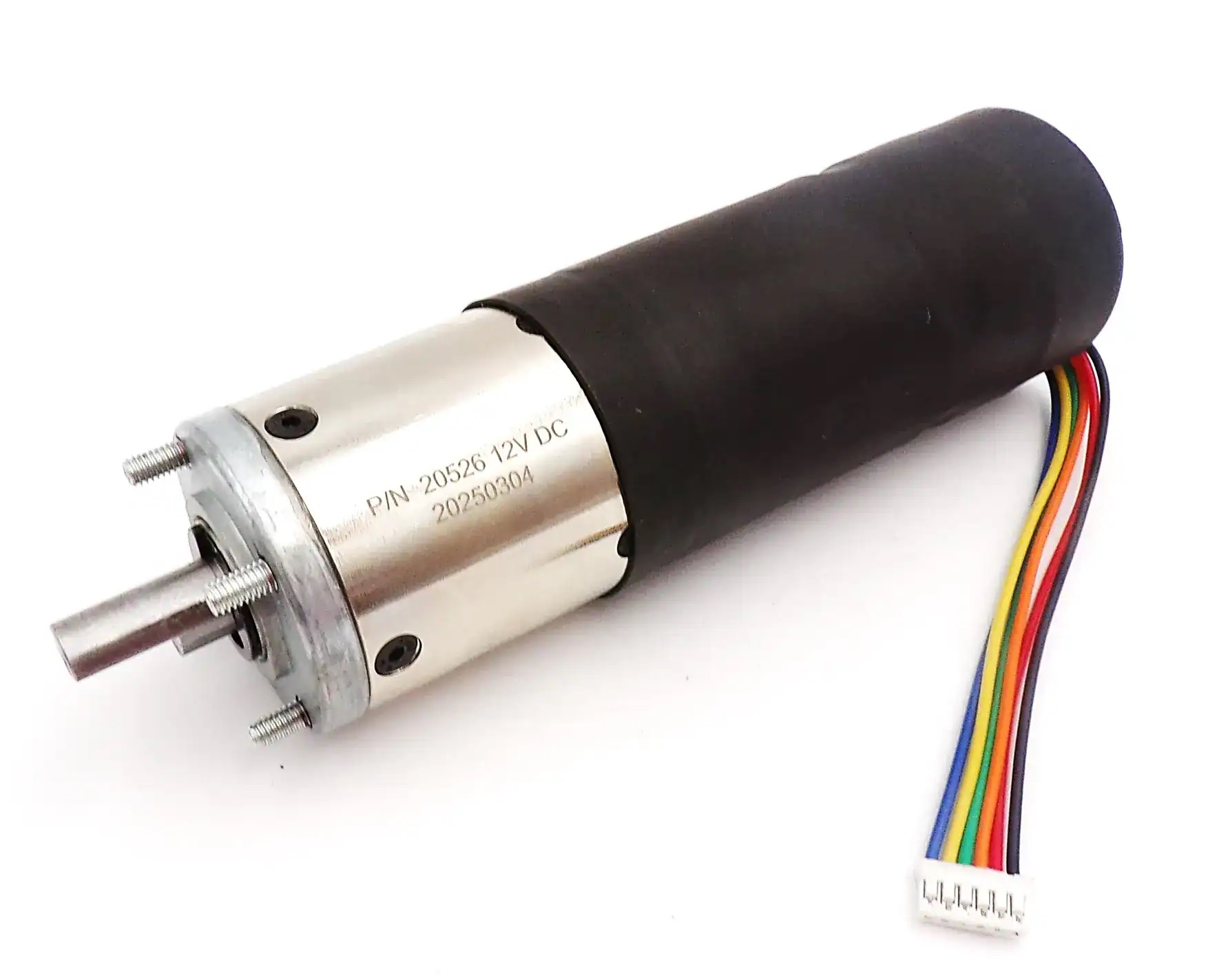

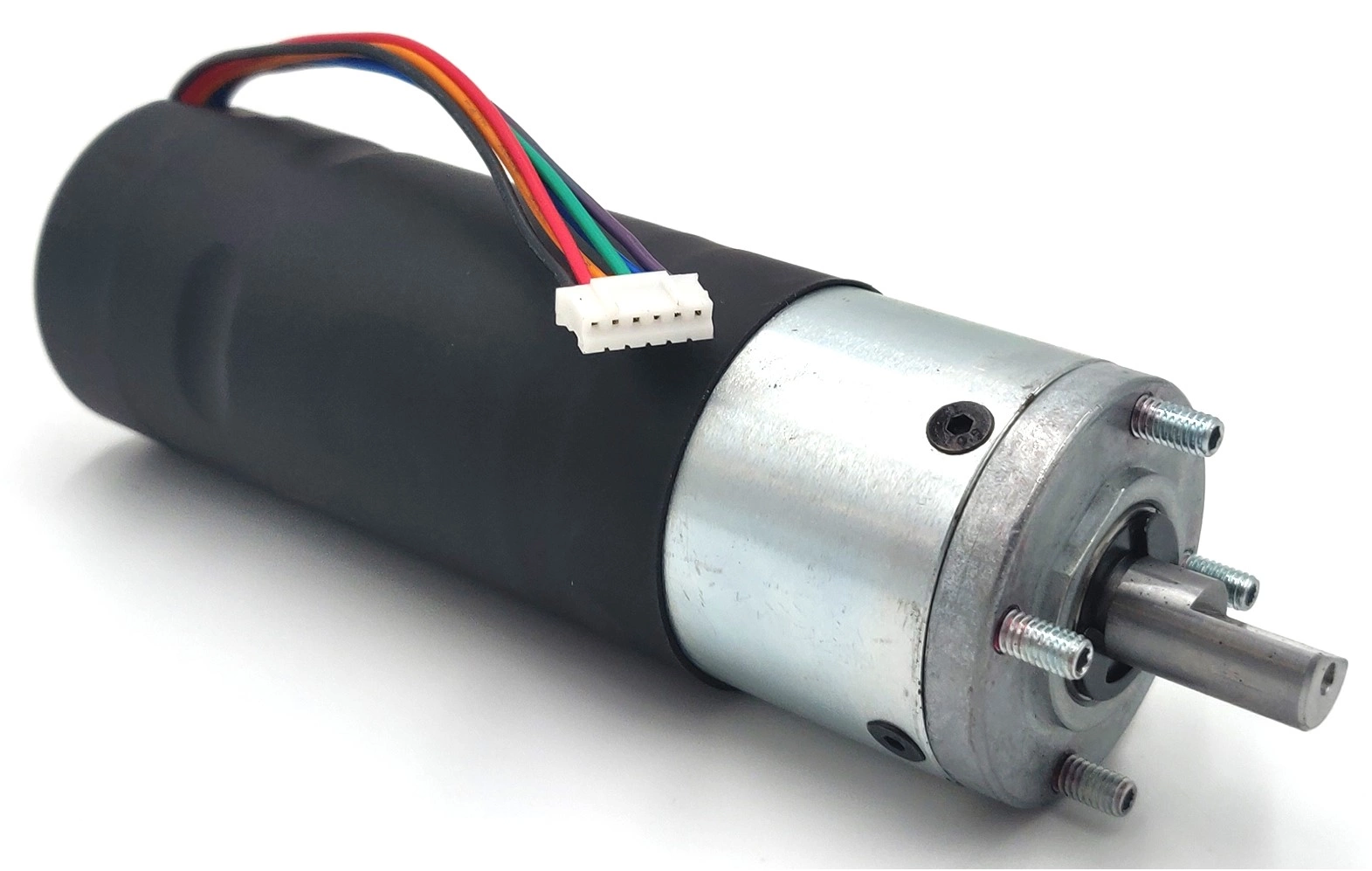

NBK Parts 20526 Lippert / Schwintek In-Wall Slide-Out Motor – 236575 (IG-42, 10 mm D-Shaft)
Restore smooth, synchronized travel on Schwintek in-wall slide systems with this direct replacement Lippert 236575 motor (also known as IG-42, 10 mm D-shaft). This drop-in drive replaces worn or weak motors that cause hesitation, racking, or out-of-sync rooms—delivering the correct torque, reduction, and connector so you can bolt up, plug in, resync, and go.
- Direct replacement for Schwintek in-wall slide systems using the 10 mm D-shaft motor.
- Correct gearing & speed for controller expectations ~22 RPM output (no-load) via 300:1 reduction.
- Improved reliability for rooms that stall, chatter, or drift out of sync.
- Plug-and-play lead & connector; no splices or guesswork when used on matching systems.
- Compact IG-42 form factor installs inside the side wall; serviceable without dropping the room.
- (1) Slide-out drive motor, 10 mm D-shaft (Lippert 236575 / IG-42)
- Application: Lippert Schwintek in-wall slide systems
- Output speed: ~22 RPM (no-load)
- Gear ratio: 300:1
- Shaft: 10 mm D-shaft
- Overall size: 6.15" L × 1.65" Ø (approx.)
- Weight: ~2 lb
- Electrical: 12V DC
- Also known as: IG-42 Motor – 10 mm; NBK Parts 20526
- Designed for Lippert Schwintek in-wall mechanisms (vertical aluminum rails with worm-gear tracks).
- 10 mm D-shaft motor used on many single and dual-motor Schwintek rooms; matches controllers expecting ~22 RPM output.
- Not for through-frame (rack & pinion) slides, hydraulic slides, or Power Gear rack systems.
- Look for Schwintek side rails at the room edges (vertical extrusions with slots).
- Verify your old motor has a 10 mm D-shaft and matches the IG-42 form factor.
- If your system uses a different shaft style or an external gearbox, contact us before ordering.
- Support the room; disconnect 12V power before service.
- Swap one motor at a time and ensure the D-shaft fully seats in the coupler.
- After replacement, perform a controller re-sync (extend fully, hold switch; retract fully, hold) per Lippert procedure so both sides time correctly.
- Inspect rails for debris and lubricate per Lippert’s non-petroleum guidance.
