Power Roof Actuator for Forest River A-Frame Hard Side Pop Up Campers
Brands:
Product Number: FOR-ACTUATOR-KIT
Vendor Number: ACTUATOR KIT
$249.99
$219.99
Power Roof Actuator for Forest River A-Frame Hard Side Pop Up Campers
Product Number: FOR-ACTUATOR-KIT
Vendor Number: ACTUATOR KIT
$249.99
$219.99
You Save $30.00 (12.0%)
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
Current Hot Deals
Lift System Parts
Electrical
Hardware
Rockwood
Rockwood
Roof Components
Metal Hardware Components

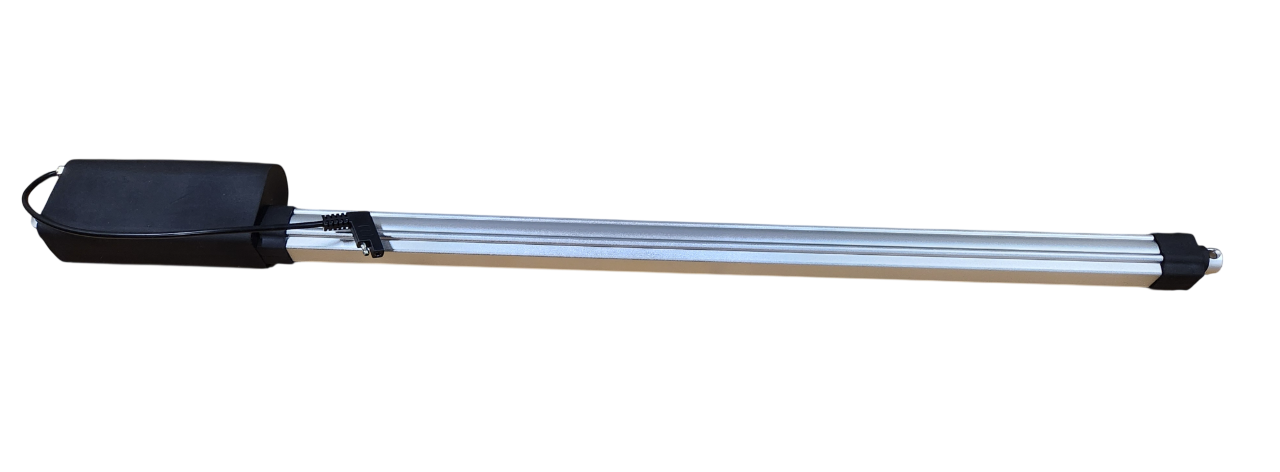

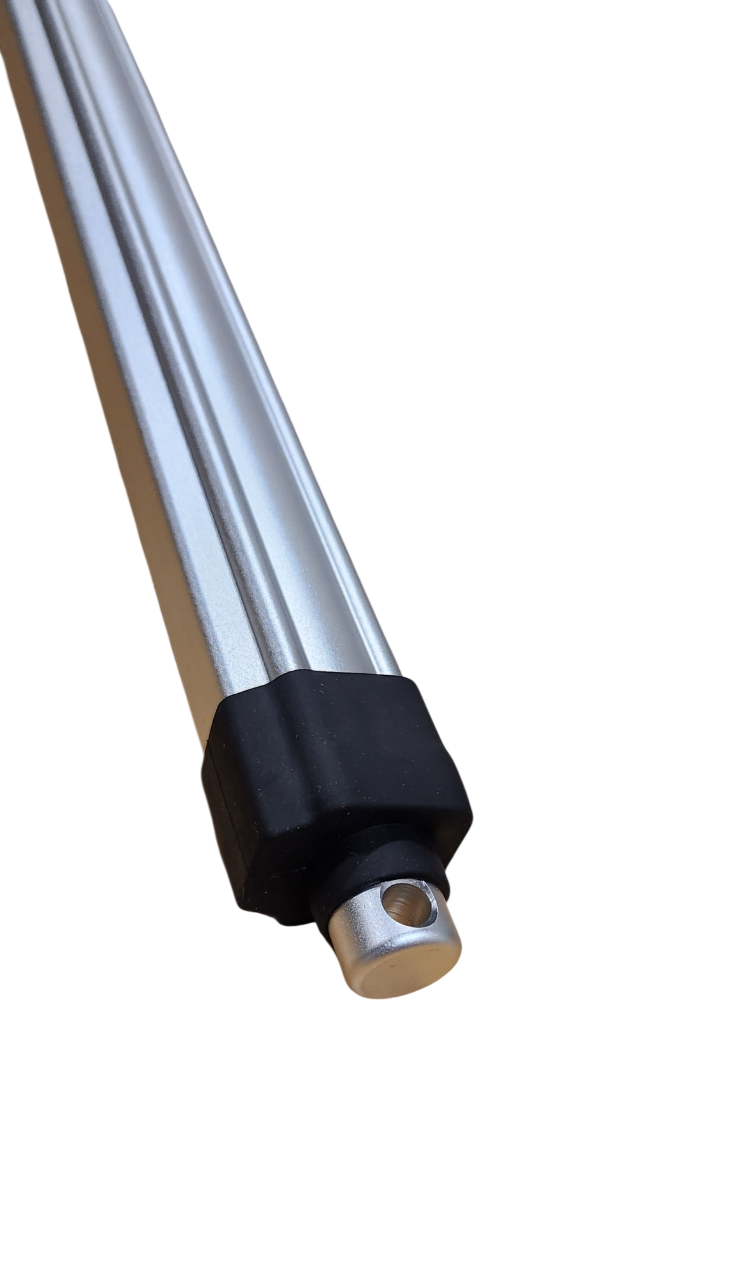

This listing is for one Power Roof Actuator for Forest River A-Frame Hard Side Pop Up Campers.
This actuator is a replacement and upgrade for the older Reico-Titan actuators commonly found on Rockwood and Flagstaff model campers.
Mounting brackets are not included, you will need your old brackets for this actuator.

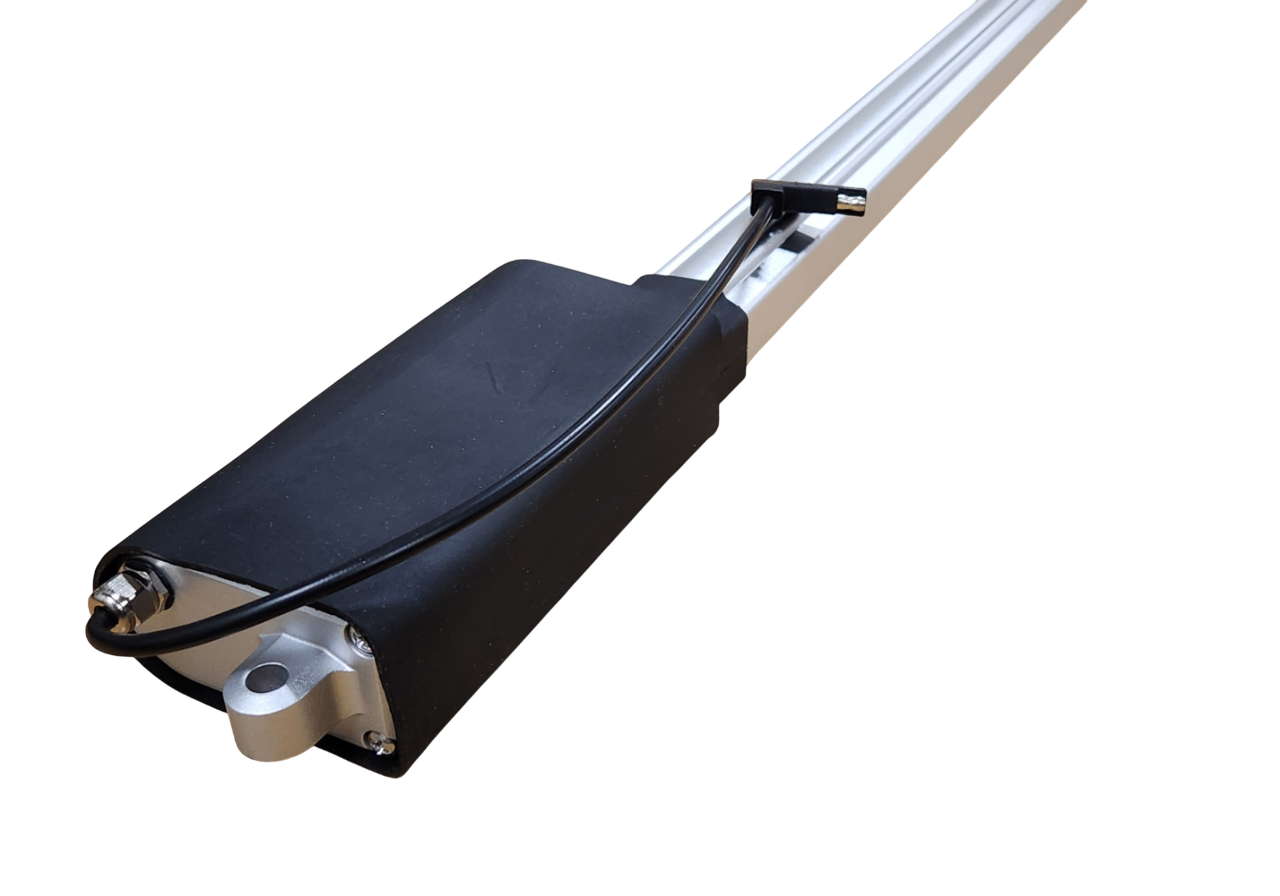

Improvements: Better motor, rubber boot and clamp over motor to help prevent water damage, Quick disconnect plug and socket for easy removal
Old Reico Titan Number: VMD3-12-20-710-IP65
Old Number: LEA20-276-95PC(N)
New Number: LEA20-276-95PCBT
Includes female quick connect socket that you will need to use/install if your actuator is hardwired through the wall. You can leave the plug hang (see pictures) or open up the existing hole and install on side of camper.
Overall Length (down): 34-1/2"
Overall Length (extended): 62-1/4"
Note: If you receive the actuator and notice the polarity is reversed (it goes up when pressing down and vice versa) the unit is not defective. You would need part number LEA-276-95MBT (which we do not carry). Alternatively the LEA20-276-95PCBT is the same actuator with the polarity reversed and it could still be used if you swapped the wires.
If you need an extension (not typical) see RV Pigtails 10022
If you need an extension (not typical) see RV Pigtails 10022
1 year warranty
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
