Triton 15746F Coverall Exterior LED Marker and Stop Turn Tail Light Kit
Triton 15746F Coverall Exterior LED Marker and Stop Turn Tail Light Kit
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume. Thank you for your understanding.

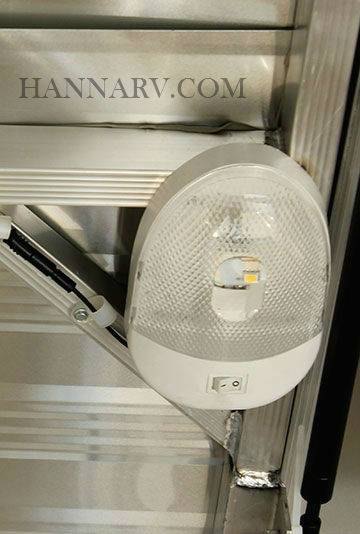

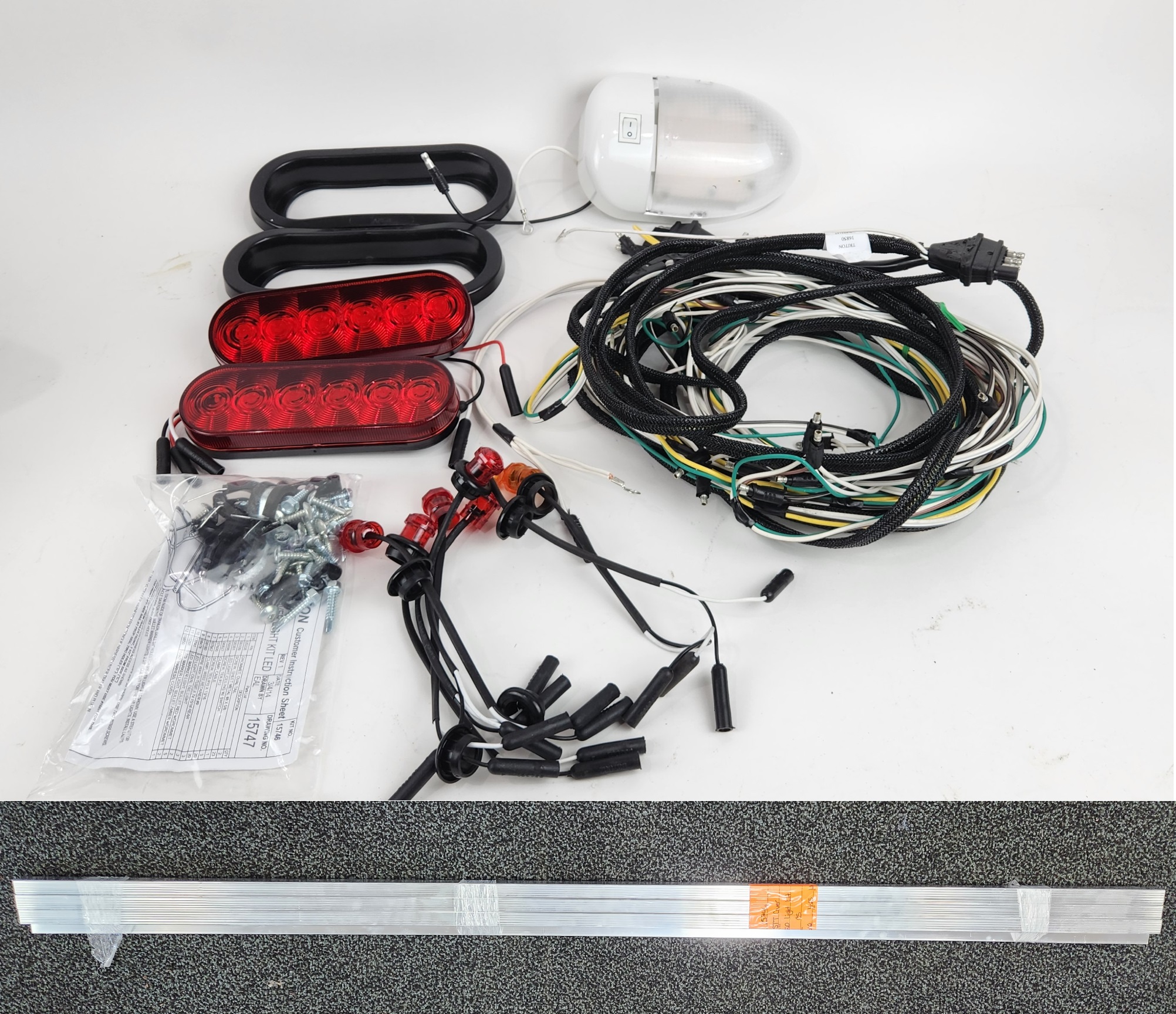

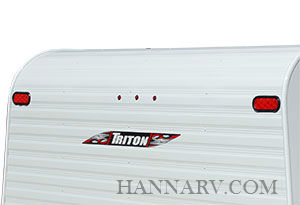

VideosThis kit includes 2 amber LED marker bullet lights, 5 red LED marker bullet lights, 2 LED stop turn tail lights as well as a single LED interior dome light. These lights will light up your trailer's coverall and help increase your presence on the road for added safety while trailering.
Includes:
- Mounting Screws
- Cable Clamps
- Aluminum H-Channels (for holding wire)
- Installation Instructions
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Ask the Triton Expert:
"What is the color code for the wires on my Triton trailer?"

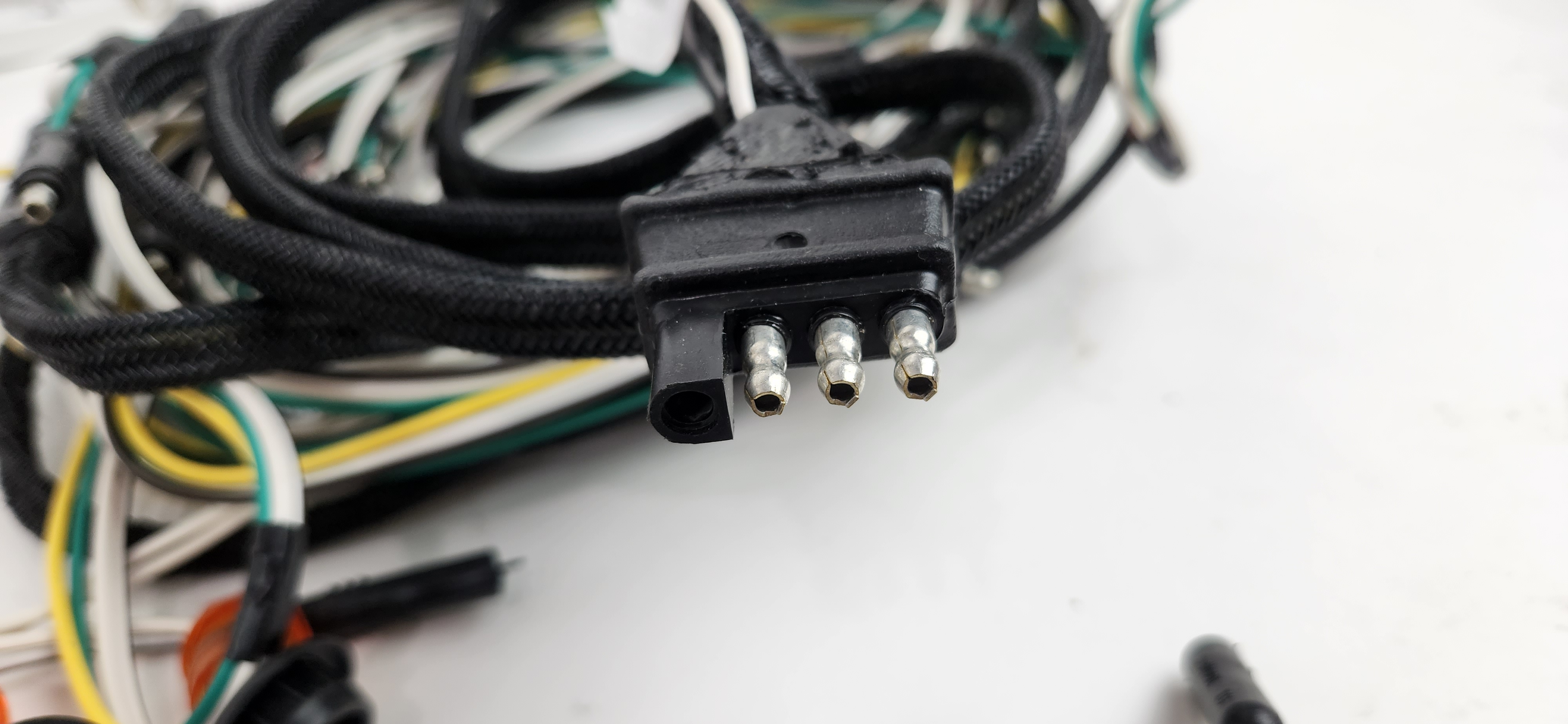

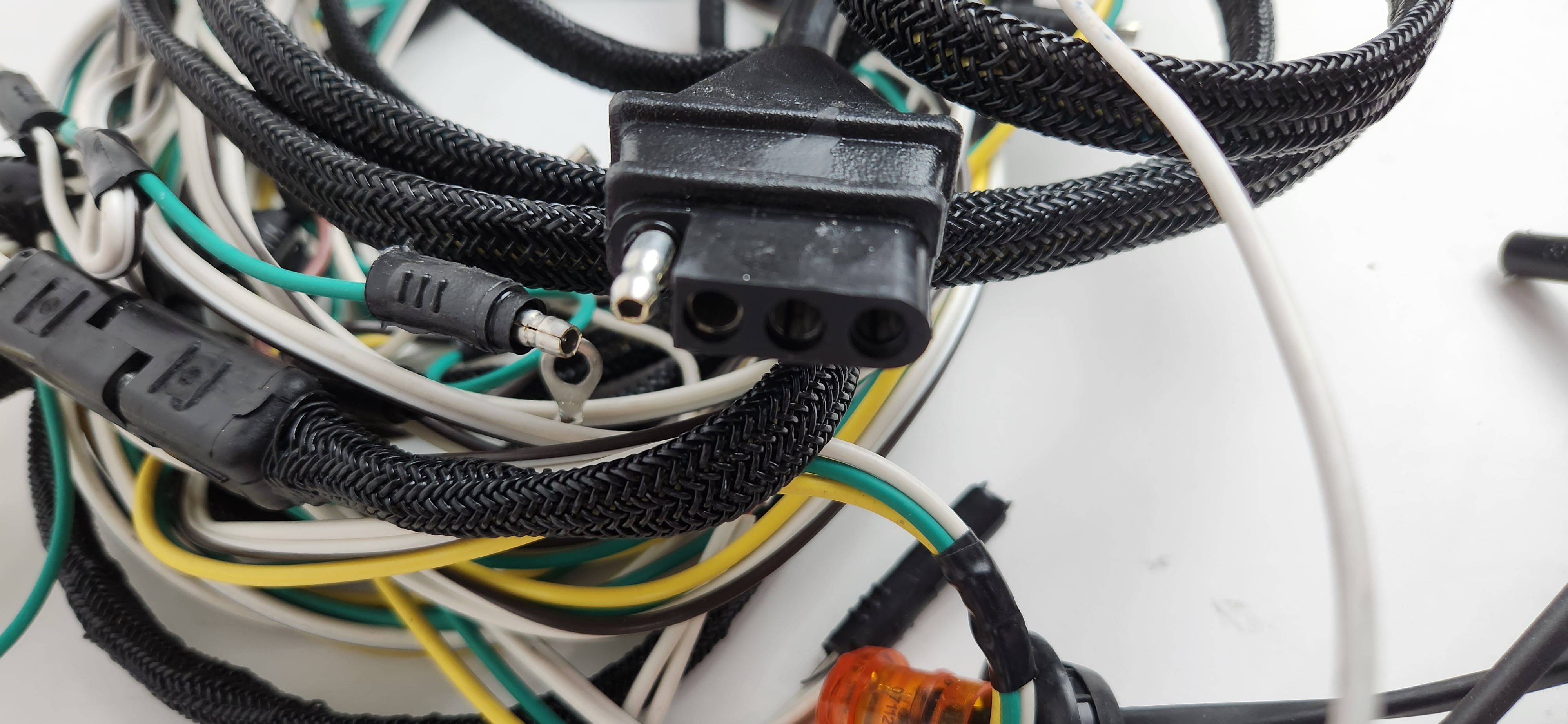

Most trailers have four basic wires for trailer lights. Trailers with brakes will have more for the braking systems that are available. Shown below is the basic coloring for Triton's trailers.
No Brakes-
Yellow= left turn
Green= right turn
Brown= running lights
White= ground
Surge Brakes-
Yellow= left turn
Green= right turn
Brown= running lights
White= ground
Blue/Gray= free backing valve
(goes to vehicle reverse lights)
Normally the center pole of a 7-round plug is for the free backing valve
Electric Brakes-
Yellow= left turn
Green= right turn
Brown= running lights
White= ground
Red=electric brakes
Black= breakaway battery hot wire
Blue= backing lights
Any additional 12v accessories would have to be addressed separately.
