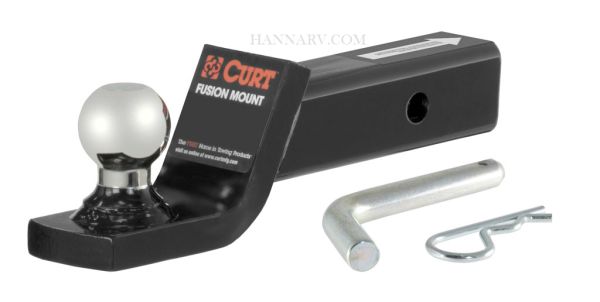

CURT 45131 Fusion Ball Mount - Drop 2 Inches - Length 7-1/2 Inches - Ball Diameter 1-7/8 Inches - GTW 5000 Lbs - TW 500 Lbs

Arm yourself with confidence with a CURT Fusion ball mount. Much like our loaded ball mounts, CURT Fusion mounts come with a trailer ball pre-attached to the mounting platform to provide a ready-to-tow solution right out the package. Unlike a loaded ball mount, however, a Fusion ball mount features a trailer ball that is permanently fixed to the shank structure, making it stronger than a traditional non-welded ball mount. With their fixed tow ball, Fusion ball mounts are also very similar to our Euro Mount ball mounts. Besides increased strength, one advantage of a permanently attached trailer ball is that it can never be loosened or stolen from your vehicle. CURT Fusion ball mounts come with 2 inch x 2 inch shanks and include a pin and clip with each unit.

This particular Fusion mount features a gross trailer weight capacity of 5,000 lbs. and a tongue weight rating of 500 lbs. It measures 7 1/2 inches long, has 2 inches of drop and comes with a 1 7/8 inch diameter trailer ball. CURT Fusion ball mounts are great for towing most standard size trailers, including utility trailers, livestock trailers, boat trailers and campers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Each unit is robotically welded to ensure accurate, consistent cuts and clean, strong weld lines. Once welded, these ball mounts undergo a cleaning process that creates a flawless surface for the application of our highly durable gloss black powder coat finish for long-lasting resistance to corrosion and chipping.


Product Specifications:

Gross Trailer Weight: 5,000 LB
Tongue Weight(TW): 500 LB
Length: 7 1/2 Inches
Drop: 2 Inches
Receiver Tube Size: Fits 2 Inches
Finish: Gloss Black Powder Coat
Ball Diameter: 1 7/8 Inches
