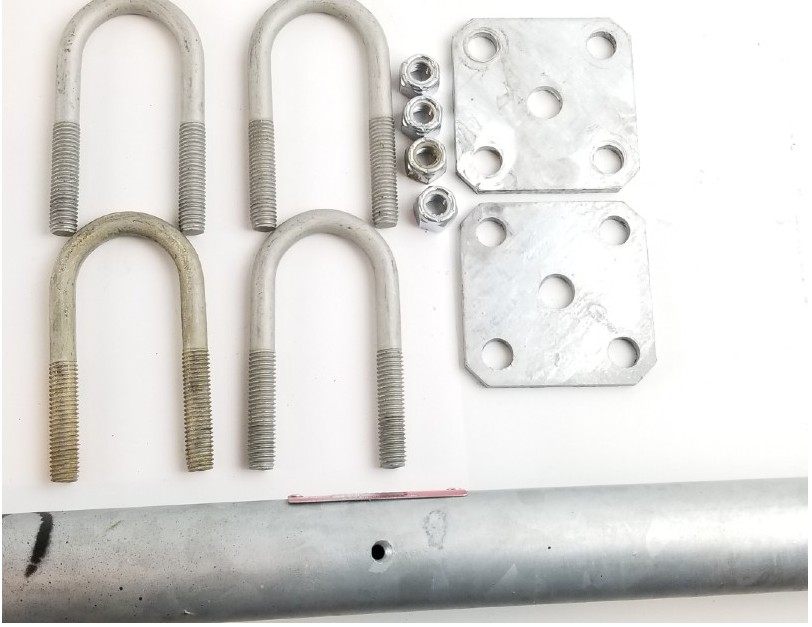

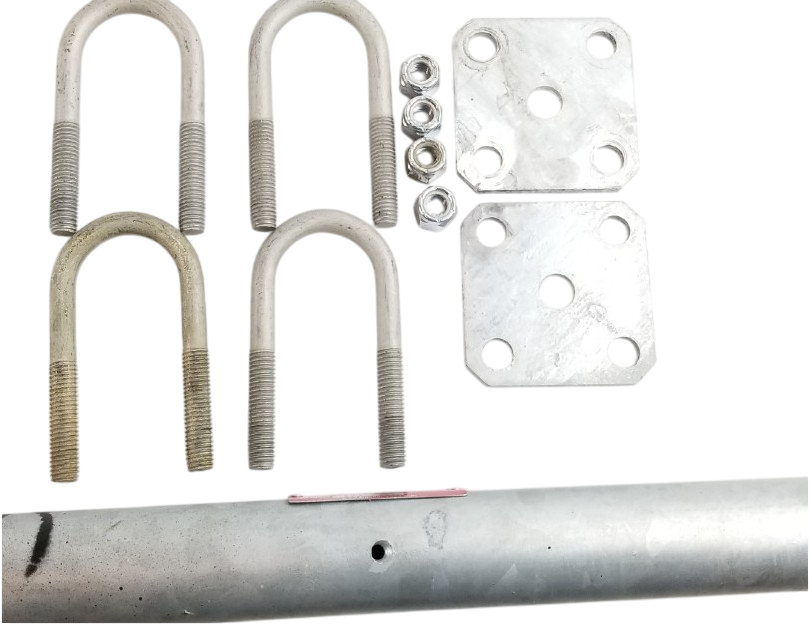

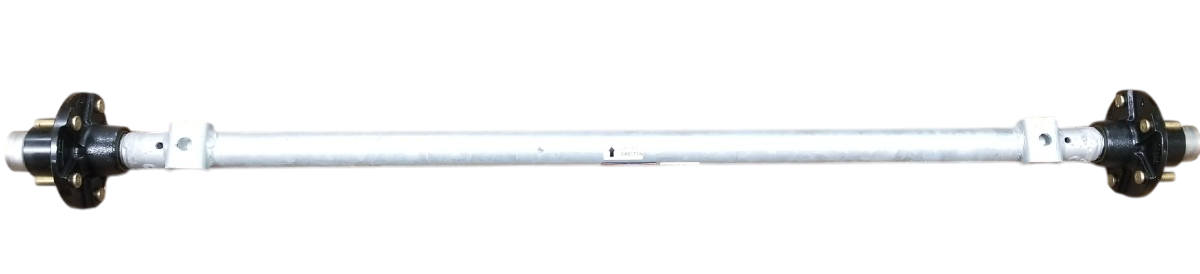

Triton 08353 PWC Trailer Axle with U-Bolt Kit - 2000 lbs
Triton 08353 PWC Trailer Axle with U-Bolt Kit - 2000 lbs
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume. Thank you for your understanding.
This axle is a direct replacement for most LTWXI series Triton PWC trailers. Please double check to make sure you are ordering the correct axle before you purchase:
Click Here for Triton Trailer Customer Information Sheet
Axles Are Not Returnable And All Axle Sales Are Final.
Measurements For This Axle (Check These Two Measurements To Make Sure That You Have The Right Axle)
- Hub Face to Hub Face: 53 in
- Spring Center: 42 in
- Overall Length: 57.5 in
- Spindle Size: 1-1/16 in x 1-1/16 in
- 2000 lbs Load
- 2 inch Round – Galvanized
- Spring Type: 25 in Radius End, 4 Leaf

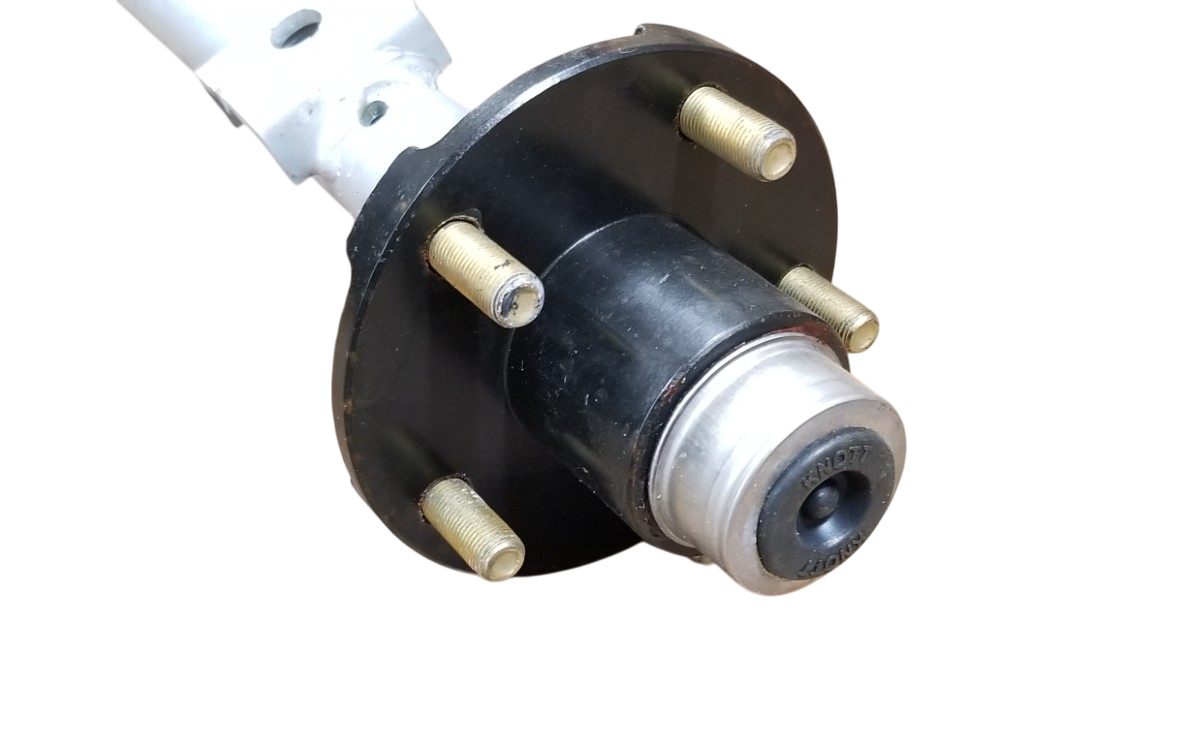

- Hub Type: 5 Bolt x 4.5 in Bolt Pattern (Included and mounted on axle)
Additional Products for Replacing an Axle
Standard 1/2" lug nuts can be purchased here
Chrome acorn style 1/2" lug nuts can be purchased here
