Single Axle Hanger Kit - APS6SE - Boxed 1.75/2 Inch Slipper Spring with Hangers and Hardware - 2K through 8K Lbs Axles

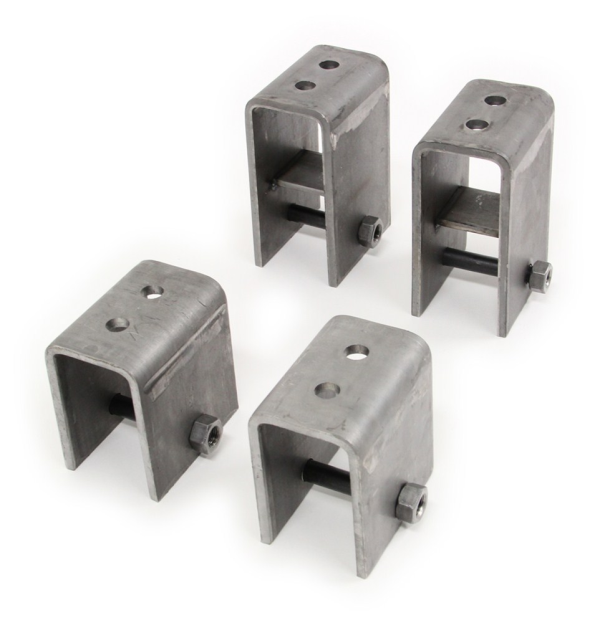

Kit includes 3-3/4" tall front hangers, 5-1/6" tall rear hangers and hardware for mounting 2" springs to your 2,000-lb to 8,000-lb, single-axle trailer frame. Components for mounting axle to springs sold separately.
Product Features
- Attaches 2 leaf springs (sold separately) to your trailer frame
- Use table below to determine hanger location based on type of leaf springs
- Achieves 4-3/4" or 5" clearance between trailer frame and axle, depending on axle size
- Includes:
- (2) 3-3/4" Tall front hangers (721584)
- (2) 5-1/6" Tall rear hangers (721585)
- (4) 3-1/2" Long x 9/16" diameter shackle bolts (91635B)
- (4) 9/16" Diameter locknuts (916DLN)
- Designed for use on trailers with single, 2,000-lb to 8,000-lb axles
- Does not include components for mounting axle to springs
| Leaf Springs |
A - Distance Between Hangers |
B - Distance Between Center of Axle and Trailer Frame | Axle Diameter |
|---|---|---|---|
| 803T3, 1203T3, 1403T3 | 25" | 4-3/4" | 3" (typical 5,200-lb to 7,200-lb trailer axle) |
| E5226 | 26" | 5" | 3" (typical 5,200-lb to 7,200-lb trailer axle) |
| E5115 | 28" | 5" | 3" (typical 5,200-lb to 7,200-lb trailer axle) |
