Dexter 8-401-5UC1 Complete Oil Bath Hub Assembly - 8 on 275mm - 3984/28682 - Fits Dexter 15K Axles - 12.25 x 5 Inch Drum
Product Specifications
- complete hub assembly, does not include brake drum
- uses #3984 inner bearing, #28682 outer bearing
- fits Dexter 15K axles, RH & LH side
- drum size - 12-1/4" x 5"

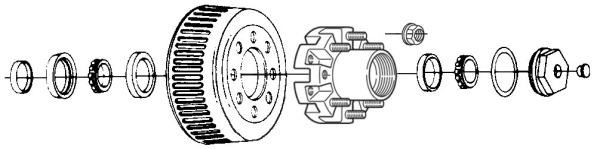

- kit contains - hub, inner/outer bearing, inner/outer race, oil seal, oil cap, o'ring gasket for cap, oil hub plug, studs, wheel nuts
- Part #: 8-401-5UC1
- Shipping Weight: 73.5lbs
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
