Dexter 8-287-14 Oil Bath Hub Only - 8 on 6.5 - 25580/02475 - Fits Dexter 8K Axles - 9/16 Inch Studs

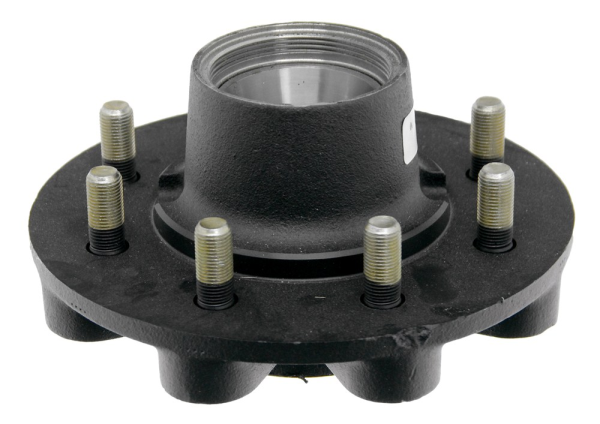

Trailer Axle Hub; Fits Dexter 8000 Pounds Idler Axles; 8 x 6-1/2 Inch Bolt Pattern; 8000 Pounds Capacity; With Cups/ 9/16 Inch Studs/ Oil
Dexter's manufacturing facilities employ state-of-the-art robotics, precision welding equipment and automated machining processes. Our comprehensive in-house laboratory performs rigorous stress, fatigue, and metallurgical testing while computer equipped test vehicles analyze actual product performance.
Product Features & Specs
- Compatibility: Dexter 8,000 Pounds Idler Axles
- 25580 Inner / 02475 Outer Bearings
- Bolt Pattern: 8 X 6-1/2 Inch
- Hub comes with 9/16” studs, 5/8” with Special Order
- Oil Bath Hub only
- For 16 inch - 17-1/2 inch wheels
- For Idler applications only.
- Oil runs cooler than grease, even in heavy-duty applications
- Oil bath lets you check lubricant level without disassembling the hub
- Look through clear oil cap to check lubrication
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
