Dexter 845475UC1 Complete Hub Assembly - 5 on 4.75 - L68149/L44649 - For 3500 Lbs Axles - Fits #84 Spindle

Brands:
Product Number: RED-845475UC1
Vendor Number: 845475UC1
$79.95 $69.99

Dexter 845475UC1 Complete Hub Assembly - 5 on 4.75 - L68149/L44649 - For 3500 Lbs Axles - Fits #84 Spindle

Product Number: RED-845475UC1
Vendor Number: 845475UC1
$79.95 $69.99 You Save $9.96 (12.5%)
Adding this item to your cart will qualify your order for US domestic

QTY:

Dexter 845475UC1 Complete Hub Assembly - 5 on 4.75 - L68149/L44649 - For 3500 Lbs Axles with #84 Spindle

Hub is designed for use on trailer idler axles. Fits 3,500-lb axles with #84 spindles. Inner bearing (L68149) and race, outer bearing (L44649) and race, grease seal, grease cap, and lug nuts included.



Product Features

  • Trailer hub assembly fits idler axles
    • Bearings, races, seal, grease cap, and lug nuts are included
  • Sturdy iron construction
  • Hub and drum are made in the USA



Product Specifications

  • Application: 3,500-lb trailer axles with #84 spindles
  • Wheel size: 13" to 15"
  • Bolt pattern: 5 on 4-3/4"
  • Grease cap flange diameter: 1.988"
  • Wheel bolt dimensions: 1/2" diameter x 1-5/16" long
  • Weight capacity: 1,750 lbs per hub



Bearing, Race, & Seal Information

  • Bearings (included)
    • Inner bearing: L68149 (1.378" inner diameter)
    • Outer bearing: L44649 (1.063" inner diameter)
  • Races (included)
    • Inner race: L68111
    • Outer race: L44610
  • Grease seal (included): 58846
    • Inner diameter: 1.719"
    • Outer diameter: 2.565"

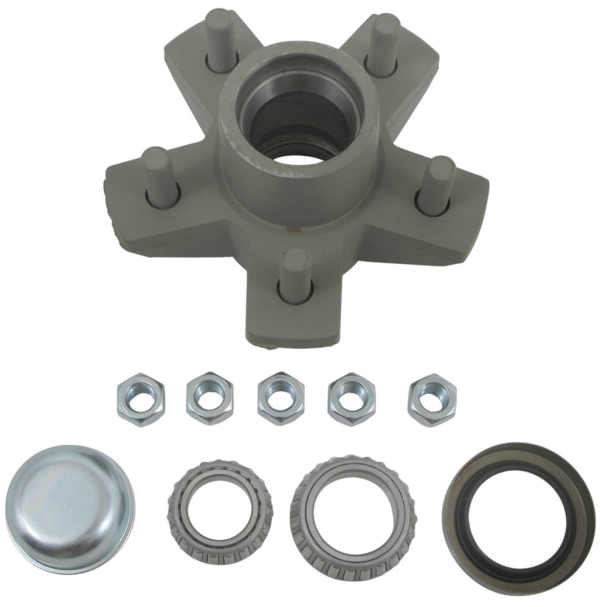

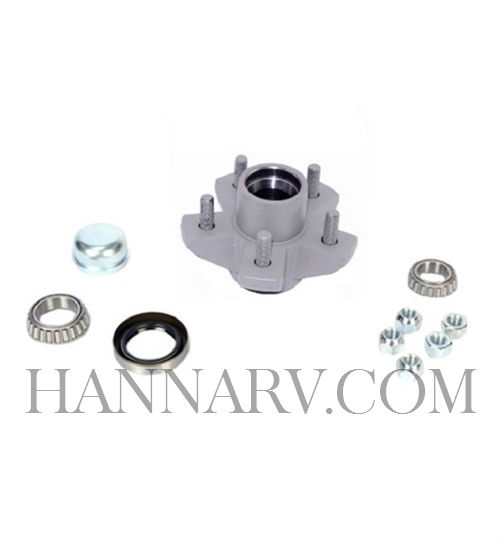

Items in Kit

• 1x L68149 Inner Bearing (1.378" ID)
• 1x L44649 Outer Bearing (1.063" ID)
• 1x L44610 Outer Race (Already Pressed In) 1.98" OD
• 1x L68111 Inner Race (Already Pressed In) 2.361" OD
• 1x 10-19 Grease Seal (1.719" x 2.565")
• 1x 46749 Grease Cap (1.986" OD)
• 5x X1023R Coned Wheel Nuts
• 1x 5 on 4.75" Hub
• 1,750lb Capacity Per Hub



Dexter Trailer Hubs and Drums - 845475UC1

  • 5 on 4-3/4 Inch
  • For 3500 lbs Axles
  • Hub
  • 13 Inch Wheel
  • 14 Inch Wheel
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • Standard
  • 1/2 Inch Stud
  • L44649
  • L68149
  • Dexter



To determine the bolt circle on hubs or wheels with an odd number of bolt holes, measure from outside to center of the studs across the pattern(bolt patterns are always measured in inches). Example: If you were to number the studs 1, 2, 3, then you would measure from the outside of stud 1 to the center of stud 3.





Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
