Trailer Parts Pro GVH34822545BX Boxed Pregreased Galvanized Hub Assembly - 5 on 4.5 - L44643 Bearings - Fits 2K axles w/ 1 Inch Spindle

Brands:
Product Number: TPP-GVH34822545BX
Vendor Number: GVH34822545BX
$75.95 $62.99

Trailer Parts Pro GVH34822545BX Boxed Pregreased Galvanized Hub Assembly - 5 on 4.5 - L44643 Bearings - Fits 2K axles w/ 1 Inch Spindle

Product Number: TPP-GVH34822545BX
Vendor Number: GVH34822545BX
$75.95 $62.99 You Save $12.96 (17.1%)
Adding this item to your cart will qualify your order for US domestic

QTY:

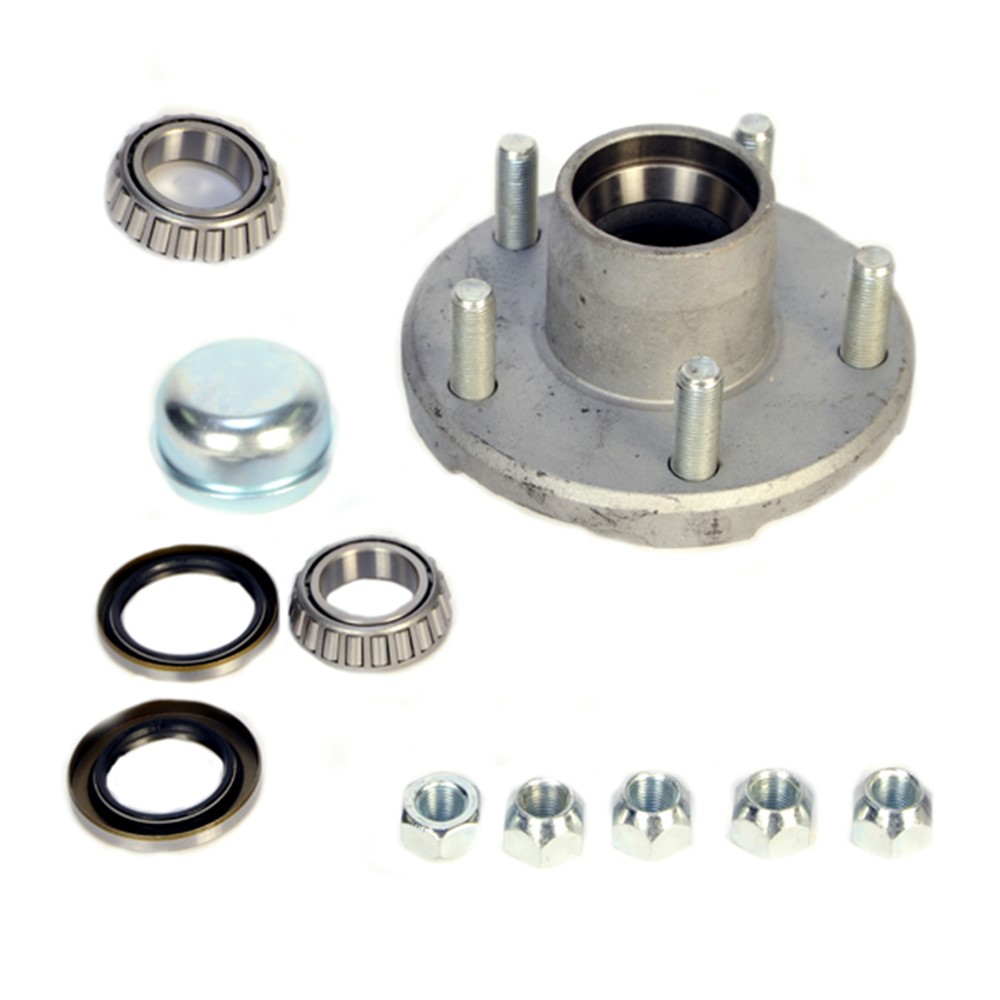

This is a ready to install Idler GVH34822545BX Boxed Galvanized  Hub Assembly - 5 on 4.5 - L44643 Bearings - Fits 2K Axles with 1 Inch Spindle made by Trailer Parts Pro.

Trailer Parts Pro hub kits come with some of your main components like the inner and outer bearings.  With this kits there is no need to worry about the races as they are already pressed into the hub for you.  You will also get the grease seal, grease cap, and wheel nuts for the hub.  This hub is designed for use with a 1" diameter spindle. Each hub has a capacity of 1,250 lbs.  Spindle nut and spindle washer sold separately.

The kit comes with labor-saving Pre-Greased and Pre-Installed Bearings, Races, Seal, as well as Standard and Grease-Lube Dust caps and wheel nuts.

 Reference#:106244

This kit comes with a galvanized hub. Galvanized hubs have a protective zinc coating to help prevent rusting.

Items in Kit

• 2x L44643 Inner and Outer Bearings  (1" ID)
• 2x L44610 Inner and Outer Races (Already Pressed In) 1.98" OD
• 1x 12192TB Grease Seal  (1.25" x 1.979")
• 1x 46749 Grease Cap (1.986" OD)
• 1x 21-14-1 Grease Cap (1.986" OD)
• 1x 85-1 Grease Cap Plug
• 5x X1023R Coned Wheel Nuts
• 1x 5 on 4.5" Galvanized Pregreased Hub For Convenience
• 1,250lb Capacity Per Hub
• 4" Overall height













Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
