Dexter 8-174-5UC3EZ-225 Complete E-Z Lube Hub and Drum Assembly - 5580/15123 Bearings - 2.25 Inch Inner Seal

Brands:
Product Number: RED-8-174-5UC3EZ-225
Vendor Number: Redneck 8-174-5UC3EZ-225
$375.99 $349.99

Dexter 8-174-5UC3EZ-225 Complete E-Z Lube Hub and Drum Assembly - 5580/15123 Bearings - 2.25 Inch Inner Seal

Product Number: RED-8-174-5UC3EZ-225
Vendor Number: Redneck 8-174-5UC3EZ-225
$375.99 $349.99 You Save $26.00 (6.9%)
Adding this item to your cart will qualify your order for US domestic

Out of Stock

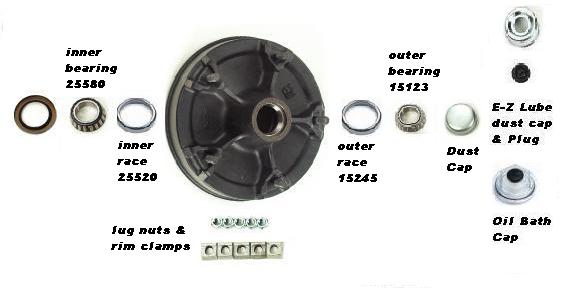

This listing is for one Dexter 8-174-5UC3EZ-225 Complete E-Z Lube Hub and Drum Assembly - 5580/15123 Bearings - 2.25 Inch Inner Seal





Product Specifications

  • Brand: Dexter
  • Type: Standard Single
  • Size: 5 Spoke, Utility Type - 12" X 2" Drum Size
  • Capacity: 3,500 LB
  • Weight: 34.8 LB
  • Inner Diameter: 2-1/4 inches
  • Spoke: 5
  • 5580/15123 Bearings





Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
