Dexter 8-219-9UC3 Standard Oil Bath Hub and Drum Assembly for 5,200 lb to 7,000 lb Axles - 8 on 6-1/2 - 12 Inch x 2 Inch Drum
Dexter 8-219-9UC3 Standard Oil Bath Hub and Drum Assembly for 5,200 lb to 7,000 lb Axles - 8 on 6-1/2 - 12 Inch x 2 Inch Drum
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume. Thank you for your understanding.
This hub & drum is designed for use with a #42 spindle. Install this hub-and-drum assembly on your trailer. Fits 5,200-lb to 7,000-lb axles. Inner bearing (25580) and race, outer bearing (14125A) and race, oilseal, oil cap, wheel bolts, and lug nuts included. Oil bath system allows for easy maintenance. Each hub & drum has unique cooling fins to help keep your brakes cool.
Product Features
- Trailer hub-and-drum assembly provides surface area for brake shoes to grip when brake is activated
- Compatible with electric and hydraulic drum brakes
- Oil bath lets you check lubricant level without disassembling the hub
- Look through clear oil cap to check lubrication
- Sturdy iron construction
- Bearings, races, seal, oil cap, wheel bolts, and lug nuts are included
- Hub and drum are made in the USA
Product Specifications
- Application: 5,200-lb to 7,000-lb trailer axles with spindles that require a 2-1/8" ID seal
- Wheel size: 16" to 17-1/2"
- Drum dimensions: 12" diameter x 2" wide
- Works with 12" brake assembly
- Bolt pattern: 8 on 6-1/2"
- Wheel bolt diameter: 1/2"
- Weight capacity: 3,500 lbs per hub
Bearing, Race, & Seal Information
- Bearings (included)
- Inner bearing: 25580 (1.75" inner diameter)
- Outer bearing: 14125A (1.25" inner diameter)
- Races (included)
- Inner race: 25520
- Outer race: 14276
- Oil seal (included): 10-10
- Inner diameter: 2.125"
- Outer diameter: 3.376"

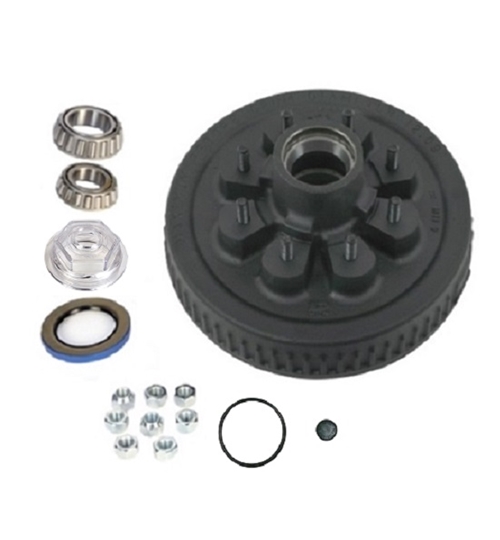

Items in Kit
• 1 25580 Inner Bearing (1.75" ID)
• 1 14125A Outer Bearing (1.25" ID)
• 1 25520 Inner Race (Already Pressed In) 3.265" OD
• 1 14276 Outer Race (Already Pressed In) 2.717" OD
• 1 10-10 Grease Seal (2.125" x 3.376")
• 1 21-35 Oil Cap
• 1 46-32 Oil Cap Plug
• 1 10-45 Oil Cap O-ring
• 8 X1023R Coned Wheel Nuts
• 1 8 on 6.5" Hub & Drum
• 3,500lb Capacity Per Hub
• Use with a 12" x 2" brake
Dexter Trailer Hubs and Drums - 8-219-9UC3
- 8 on 6-1/2 Inch
- For 5200 lbs Axles
- For 6000 lbs Axles
- For 7000 lbs Axles
- Hub with Integrated Drum
- 16 Inch Wheel
- 16-1/2 Inch Wheel
- 17 Inch Wheel
- 17-1/2 Inch Wheel
- Oil Bath
- 1/2 Inch Stud
- 14125A
- 25580
- Dexter
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
