Redline HD42656BX Hub and Drum Assembly for 6,000 lb Axles - 6 on 5-1/2

Brands:
Product Number: RED-HD42656BX
Vendor Number: HD42656BX
$204.95 $169.99

Redline HD42656BX Hub and Drum Assembly for 6,000 lb Axles - 6 on 5-1/2

Product Number: RED-HD42656BX
Vendor Number: HD42656BX
$204.95 $169.99 You Save $34.96 (17.1%)
Adding this item to your cart will qualify your order for US domestic

QTY:

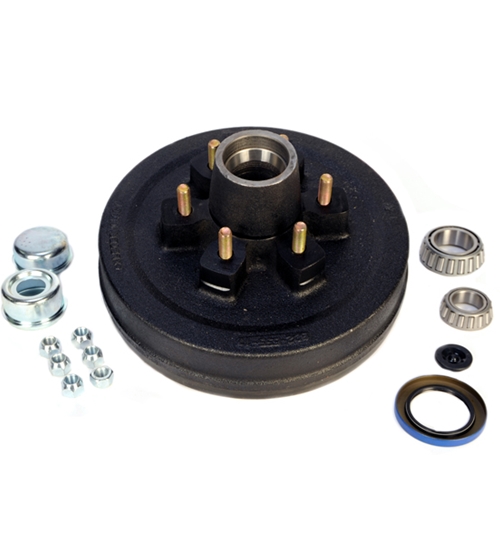

This listing is for one Redline HD42656BX Hub and Drum Assembly for 6,000 lb Axles - 6 on 5-1/2

This hub & drum is designed for use with a #42  spindle. Each hub & drum has a capacity of 3,000lbs. Spindle nut and spindle washer sold separately. Redline hub & drum kits come with some of your main components like the inner and outer bearings. With Redline kits there is no need to worry about the races as they are already pressed into the hub for you. You will also get the grease seal, grease cap, and wheel nuts for the hub.



Items in Kit

• 1 25580 Inner Bearing (1.75" ID)
• 1 15123 Outer Bearing (1.25" ID)
• 1 25520 Inner Race (Already Pressed In) 3.265" OD
• 1 15245 Outer Race (Already Pressed In) 2.441" OD
• 1 10-36 Grease Seal (2.25" x 3.376")
• 1 45896 Grease Cap (2.44" OD)
• 1 21-42-1 Grease Cap (2.44" OD)
• 1 85-1 Grease Cap Plug
• 6 X1023R Coned Wheel Nuts
• 1 6 on 5.5" Hub & Drum Pregreased For Convenience
• 3,000 lb Capacity Per Hub
• Use with a 12" x 2" brake



Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
