Dexter 8-388-80 Nev-R-Lube Hub and Drum Only for 6,000 lb Axles - 6 on 5-1/2 - 42mm Axle - 12 x 2 Inch Drum

Brands:
Product Number: RED-8-388-80
Vendor Number: 8-388-80
$635.95 $554.99

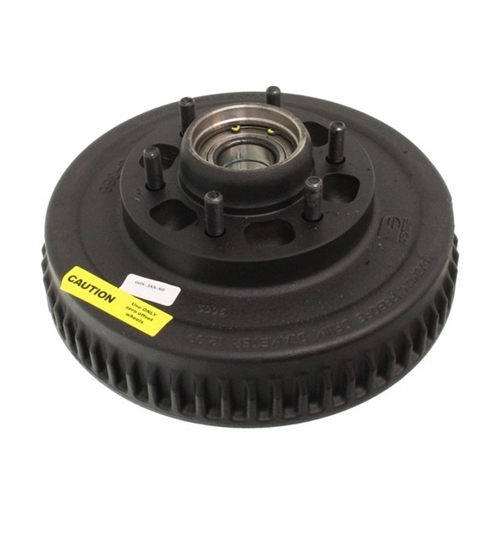

Dexter 8-388-80 Nev-R-Lube Hub and Drum Only for 6,000 lb Axles - 6 on 5-1/2 - 42mm Axle - 12 x 2 Inch Drum

Product Number: RED-8-388-80
Vendor Number: 8-388-80
$635.95 $554.99 You Save $80.96 (12.7%)
Adding this item to your cart will qualify your order for US domestic

QTY:

This listing is for one Dexter 8-388-80 Nev-R-Lube Hub and Drum Only for 6,000 lb Axles - 6 on 5-1/2 - 42mm Axle - 12 x 2 Inch Drum

Install this hub-and-drum assembly on your trailer. Hub fits 42MM Nev-R-Lube axles. Bearings (31-73-3), grease cap (021-085-00), washer (005-147-01), axle nut (006-183-00), snap ring (069-096-00), and lug nuts (006-080-00) included. Spindle nut and spindle washer sold separately. Each hub & drum has unique cooling fins to help keep your brakes cool.

Product Features

  • Used on Dexter Nev-R-Lube 6,000 lb Axles
  • Trailer hub-and-drum assembly provides surface area for brake shoes to grip when brake is activated
    • Compatible with electric and hydraulic drum brakes
  • Sturdy iron construction
  • Bearings, grease cap, washer, axle nut, snap ring, and lug nuts are included
  • Hub and drum are made in the USA

Product Specifications

  • Application: 42MM Nev-R-Lube axles
  • Bearing, snap rings and cap included (31-73-3 bearing)
  • Drum dimensions: 12" diameter x 2" wide
  • Bolt pattern: 6 on 5-1/2"
  • Grease cap flange diameter: 3.125"
  • Wheel bolt diameter: 1/2"
  • Weight capacity: 3,000 lbs per hub

Dexter Trailer Hubs & Drums

  • 6 on 5-1/2 Inch
  • For 6000 lbs Axles
  • Hub with Integrated Drum
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • 16 Inch Wheel
  • 16-1/2 Inch Wheel
  • Nev-R-Lube
  • Dexter

Items Sold Separately

  • 1 1609 Cap (3.125" OD)
  • 6 X1023R Coned Wheel Nuts





Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
