Dexter 70-006 Non-ABS Brake Rotor Only for Dexter 10K-12K Disc Brake Axles
Dexter 70-006 Non-ABS Brake Rotor Only for Dexter 10K-12K Disc Brake Axles
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume. Thank you for your understanding.

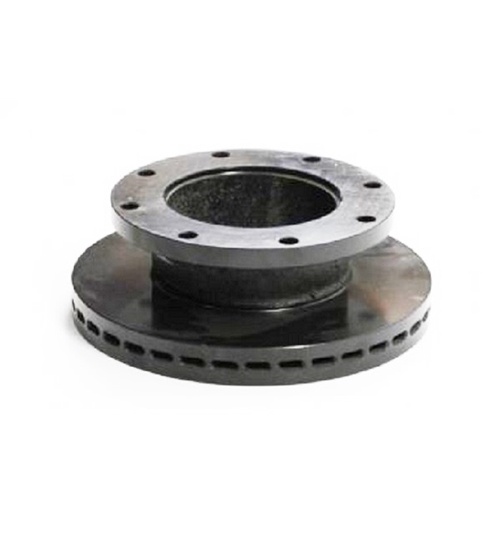

This listing is for one Dexter 70-006 Non-ABS Brake Rotor Only for Dexter 10K-12K Disc Brake Axles.
Product Features and Specs
- Non-ABS Brake Rotor ONLY!!!
- Oil Bath Hub, 395S Inner / 387A Outer Bearings
- Fits Dexter 10K Disc Brake Axles
- Capacity of 5,000 lbs. per each
- Rotor Available with ABS exciter ring installed
- 4.75” Hub Pilot
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
